Installation Procedure

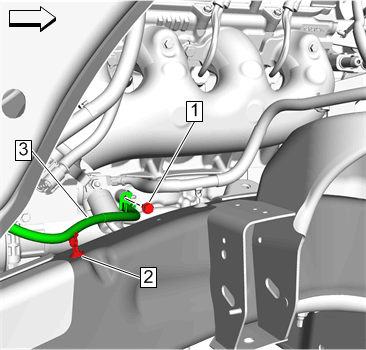

  1. GM4852683Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (3) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Negative Cable Ground Bolt (1) - Install and tighten 45 N.m (33 lb ft)
  3. Retainer (2) - Engage

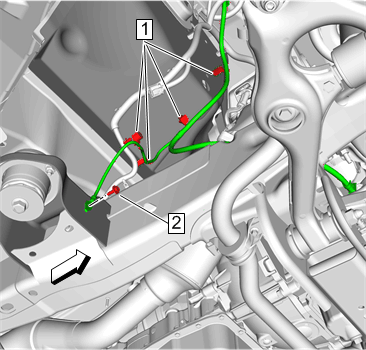

  4. GM4852677Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Ground Bolt (2) - Install and tighten 9 N.m (80 lb in)

  5. Retainer (1) - Engage [4x]
  6. Install the right front wheelhouse liner. Front Wheelhouse Liner Replacement - Right Side (Cadillac) , or Front Wheelhouse Liner Replacement - Right Side (Chevrolet) , or Front Wheelhouse Liner Replacement - Right Side (GMC)

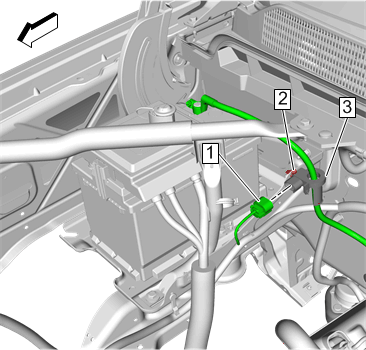

  7. GM4852416Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1)@Battery Current Sensor (3) - Connect

  8. Retainer (2) - Engage
  9. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Dual Battery) , or Battery Negative Cable Disconnection and Connection (Single Battery)
