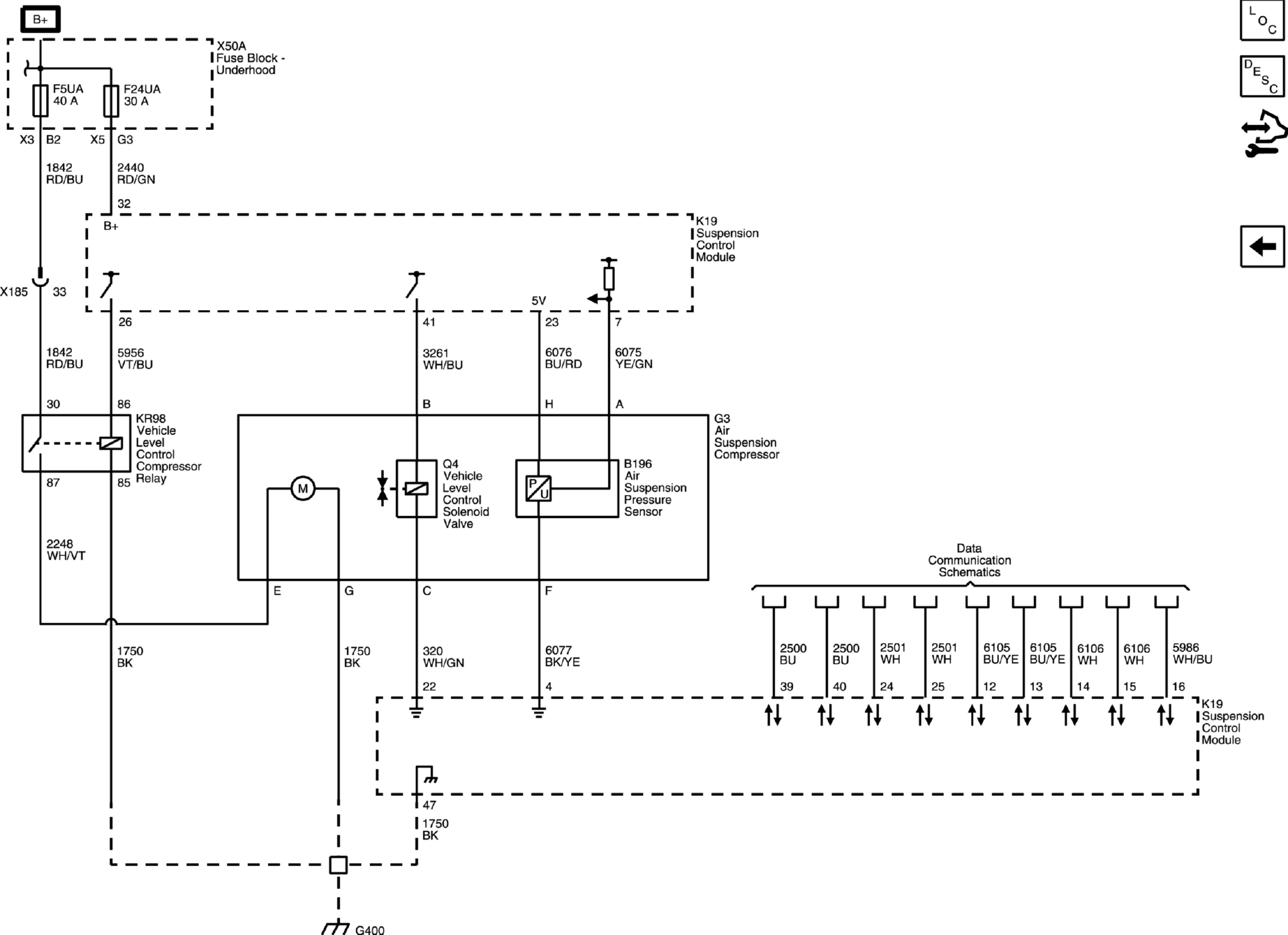

Home › Cadillac › 2020 › Escalade ESV Base, RWD › Repair and Diagnosis › Suspension › Electronic Suspension › Automatic Level Control System › Schematic Wiring Diagrams › Automatic Level Control Wiring Schematics › Automatic Level Control (Z95)
