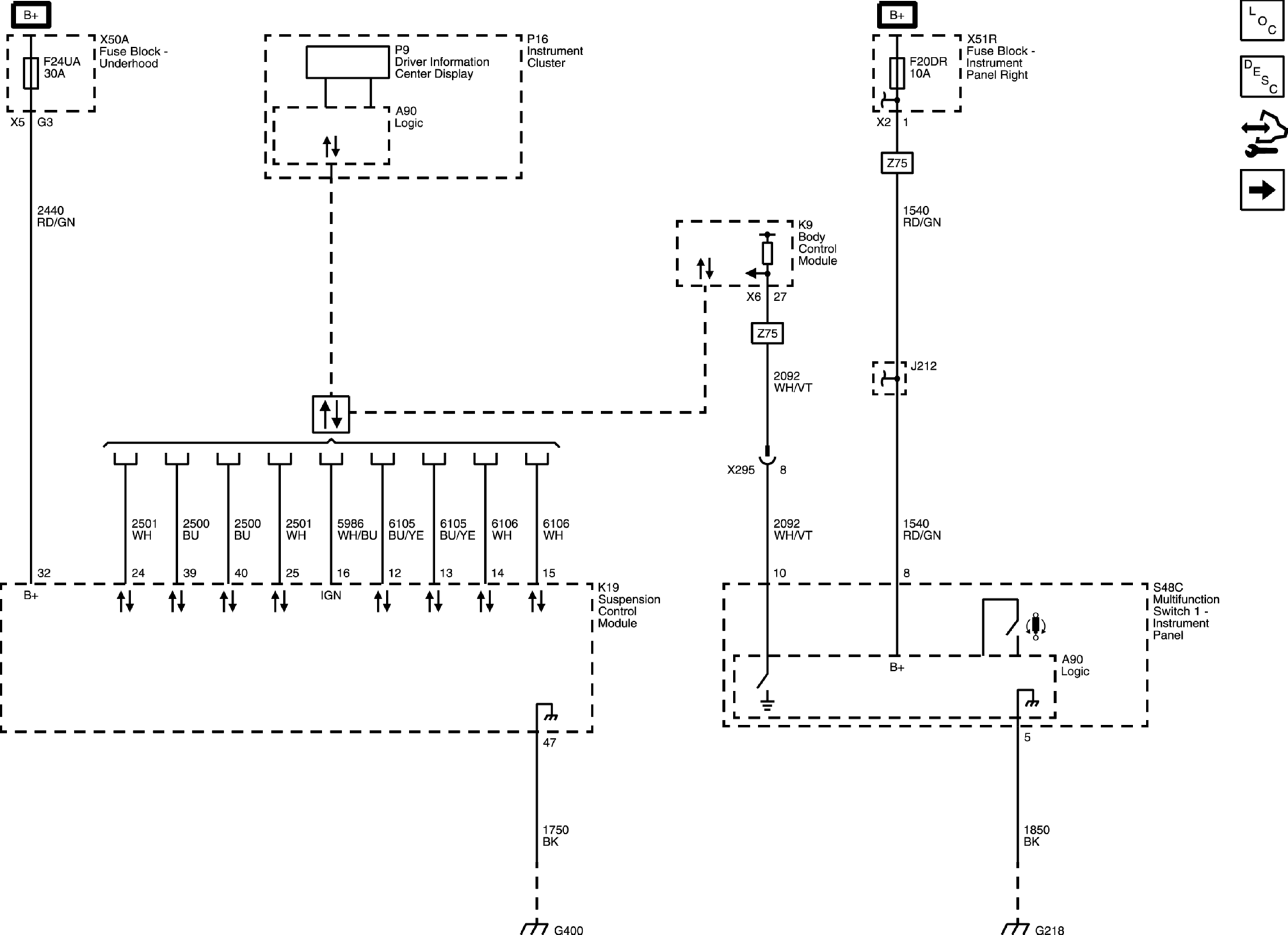

Power, Ground, Serial Data and Controls (Z95)
Power, Ground, Serial Data and Controls (Z95)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
