Removal Procedure

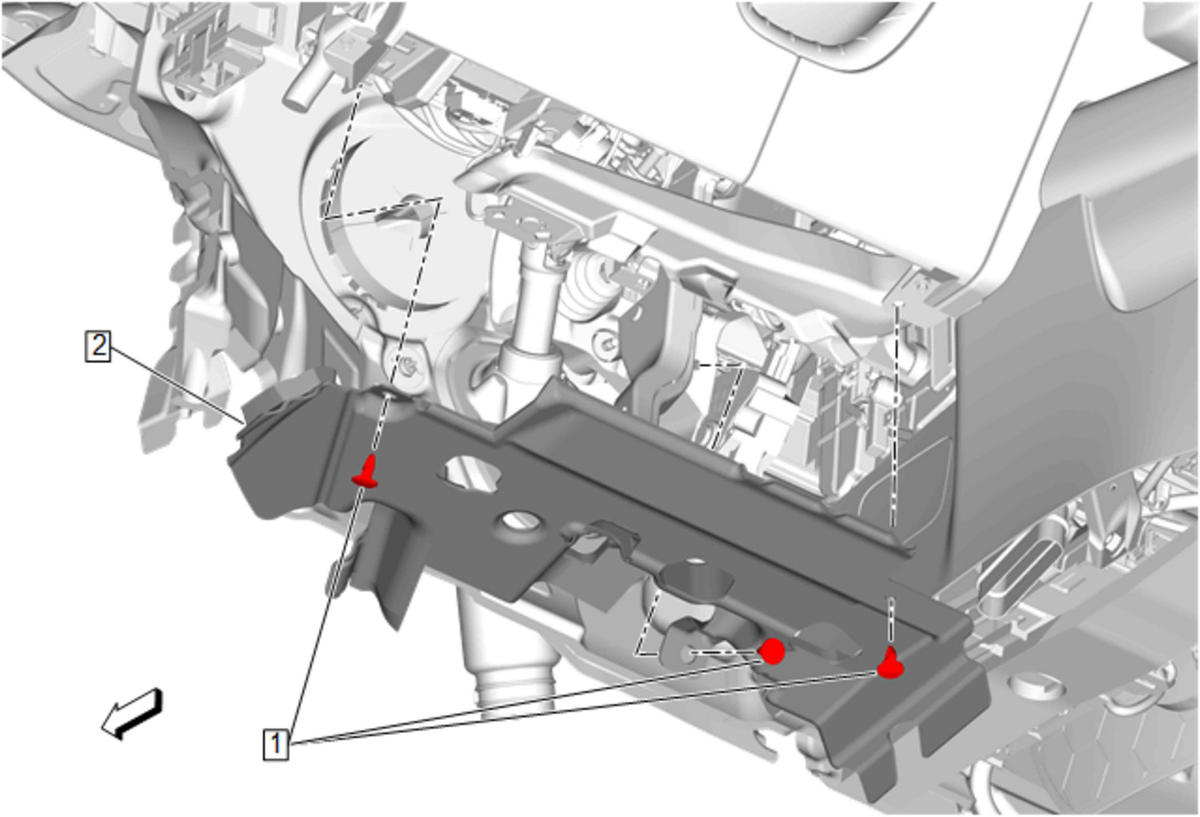

  1. GM5077064Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator-Left Side (2) - Remove - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side

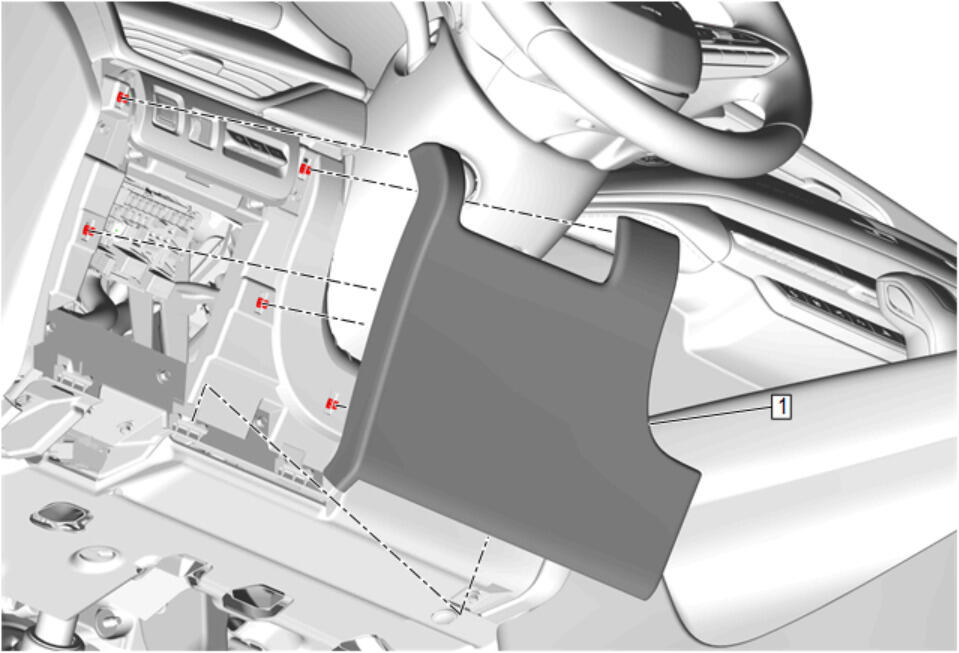

  2. GM5068385Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Remove - Instrument Panel Fuse Block Access Hole Cover Replacement

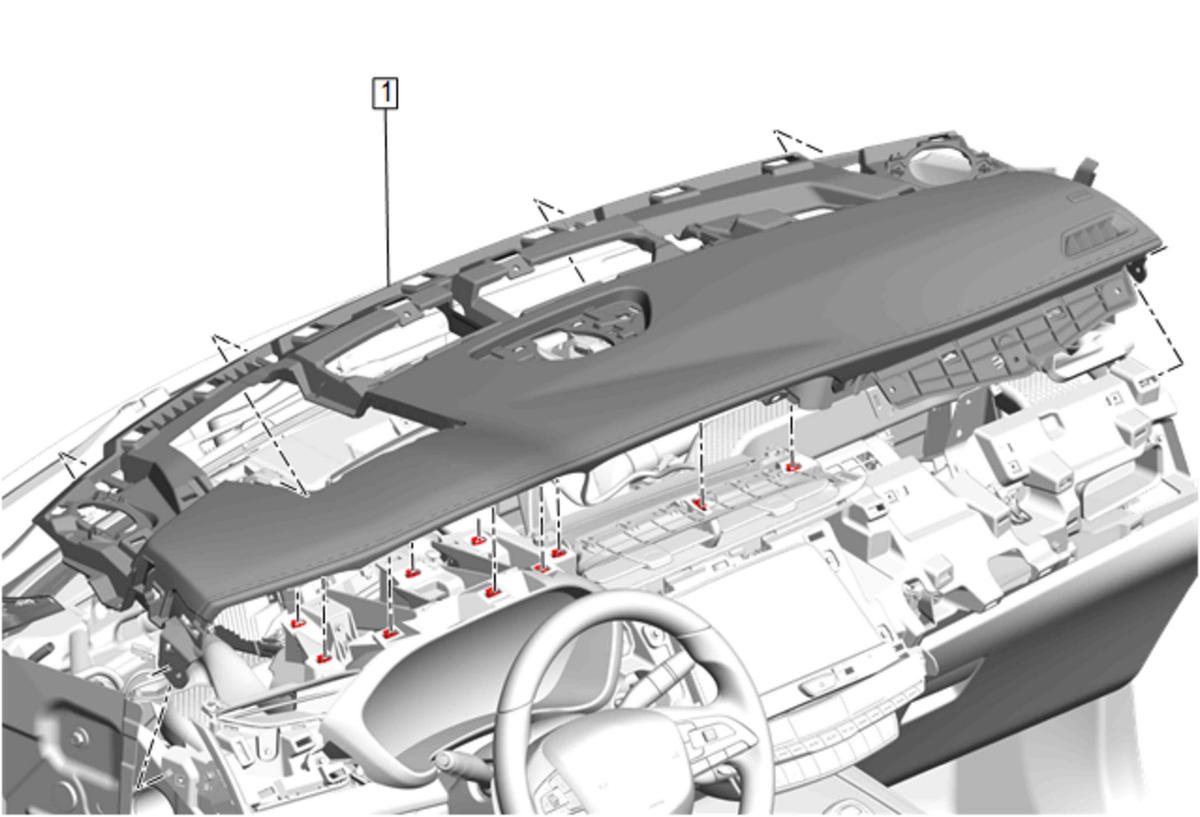

  3. GM5082252Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Remove - Instrument Panel Upper Trim Panel Replacement

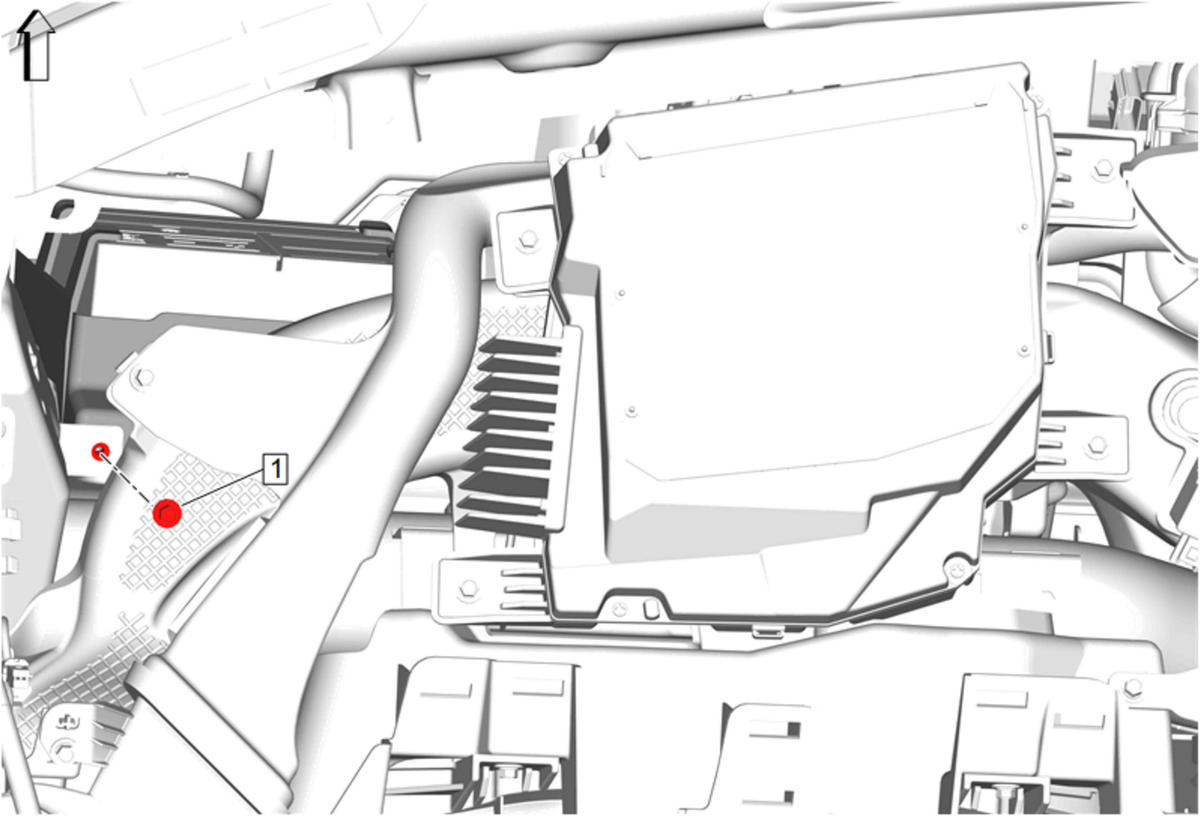

  4. GM5081940Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module Bracket Bolt (1) - Remove

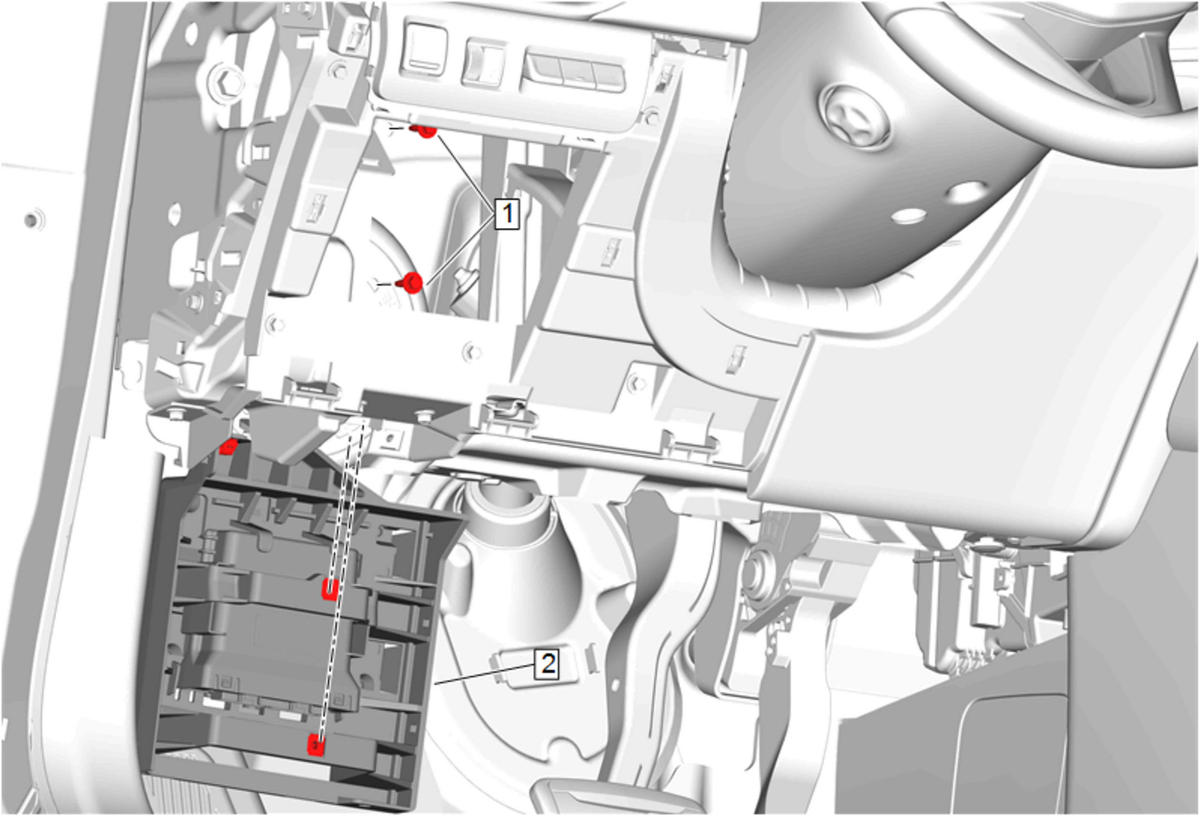

  5. GM5081942Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module Bracket Bolt (1) - Remove [2x]

  6. Disconnect the electrical connectors and detach the wiring harness as necessary.
  7. Communication Interface Module Bracket (2) - Remove
  8. Transfer components as necessary.
