Removal Procedure

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Partially drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (LSY with V03 GE 47716) .
Remove the oil fill cap.

Courtesy of GENERAL MOTORS COMPANY

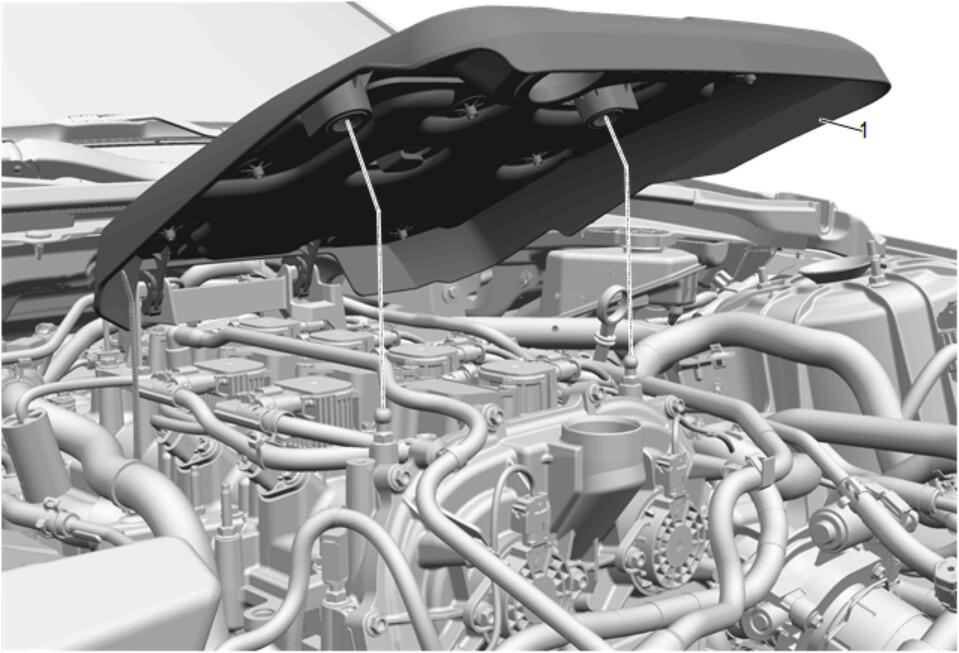

Lift up on the front of the intake manifold cover (1).
Courtesy of GENERAL MOTORS COMPANY

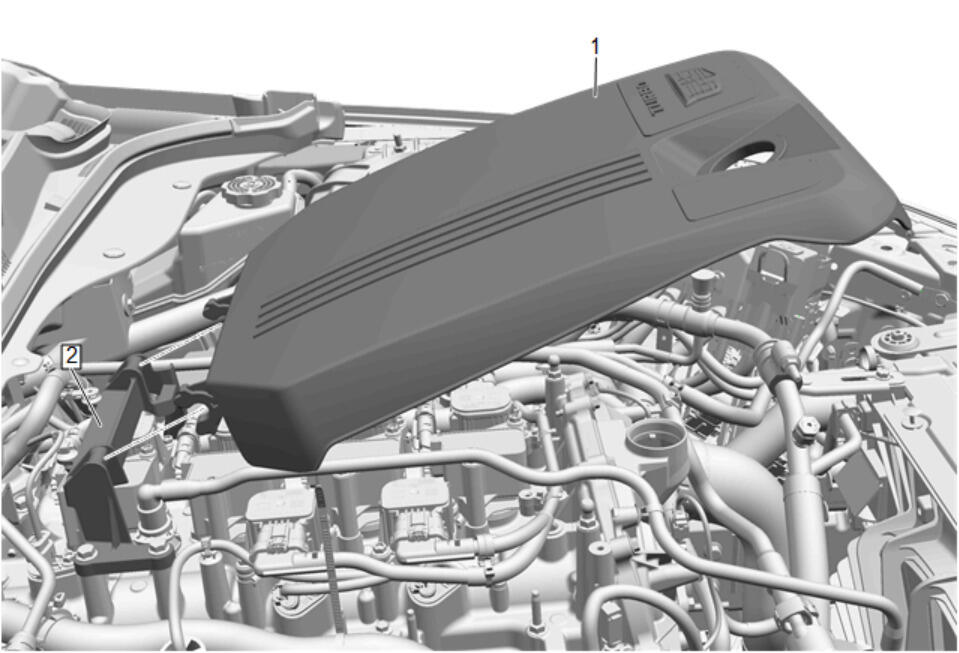

Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

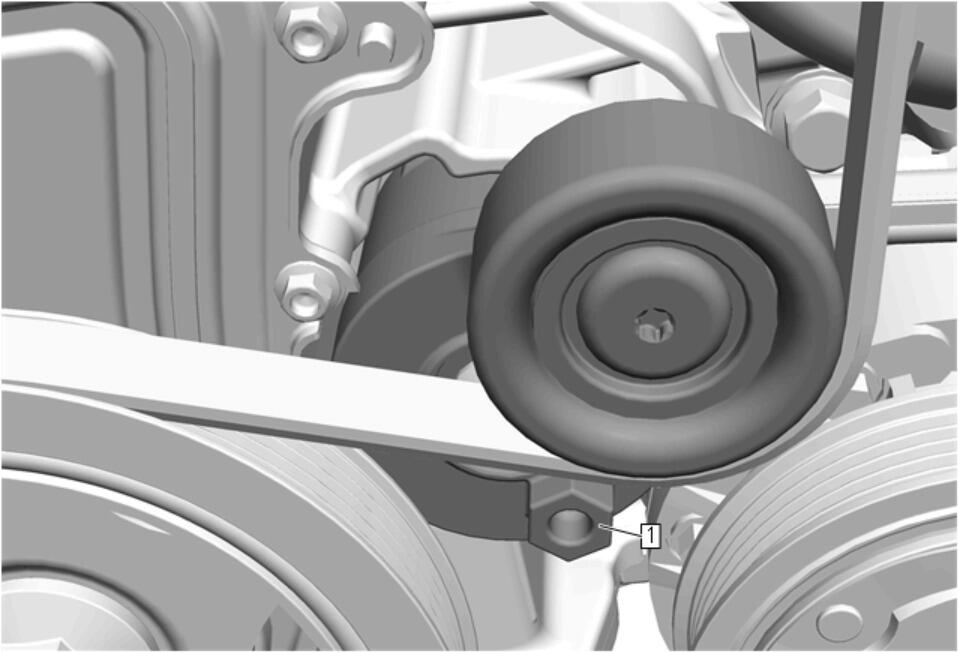

Using an appropriate tool, rotate the drive belt tensioner (1) counterclockwise and hold tension.
Courtesy of GENERAL MOTORS COMPANY

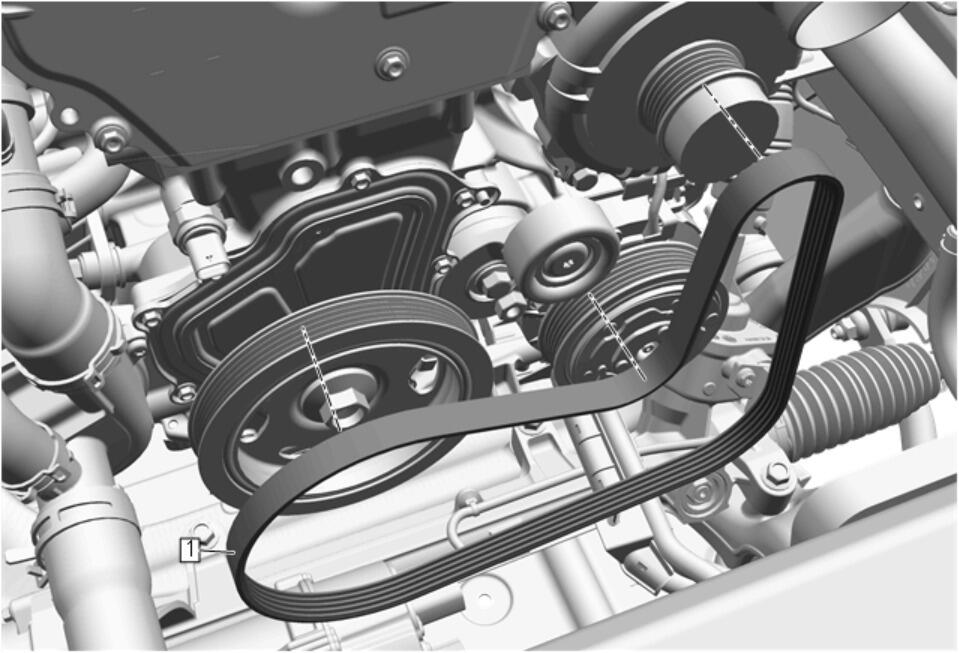

Accessory Drive Primary Belt (1) - Remove
Slowly release tension on the drive belt tensioner.
Courtesy of GENERAL MOTORS COMPANY

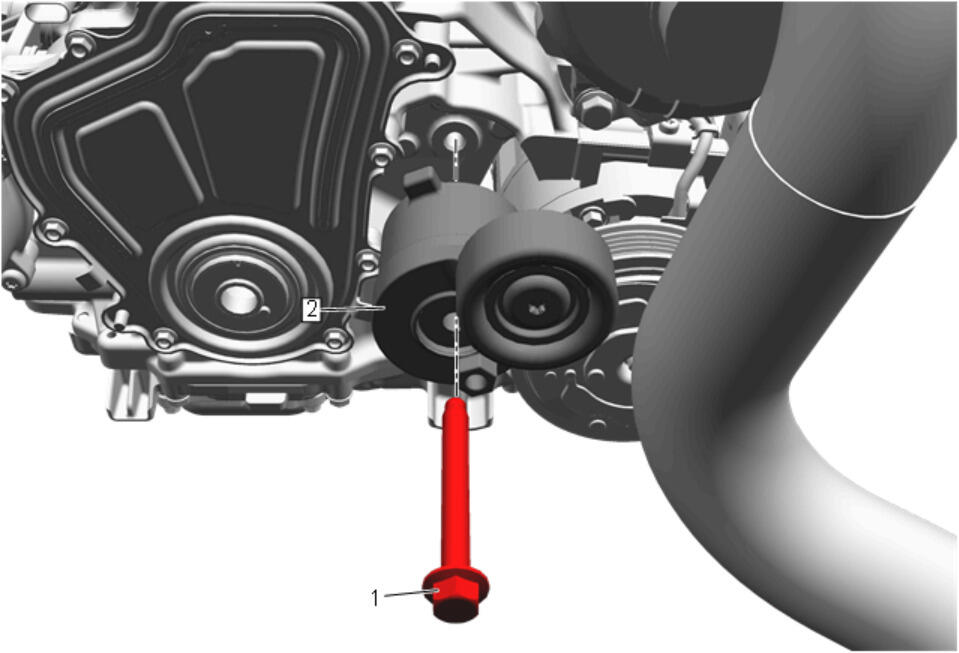

Drive Belt Tensioner Bolt (1) - Remove
Drive Belt Tensioner (2) - Reposition
Courtesy of GENERAL MOTORS COMPANY

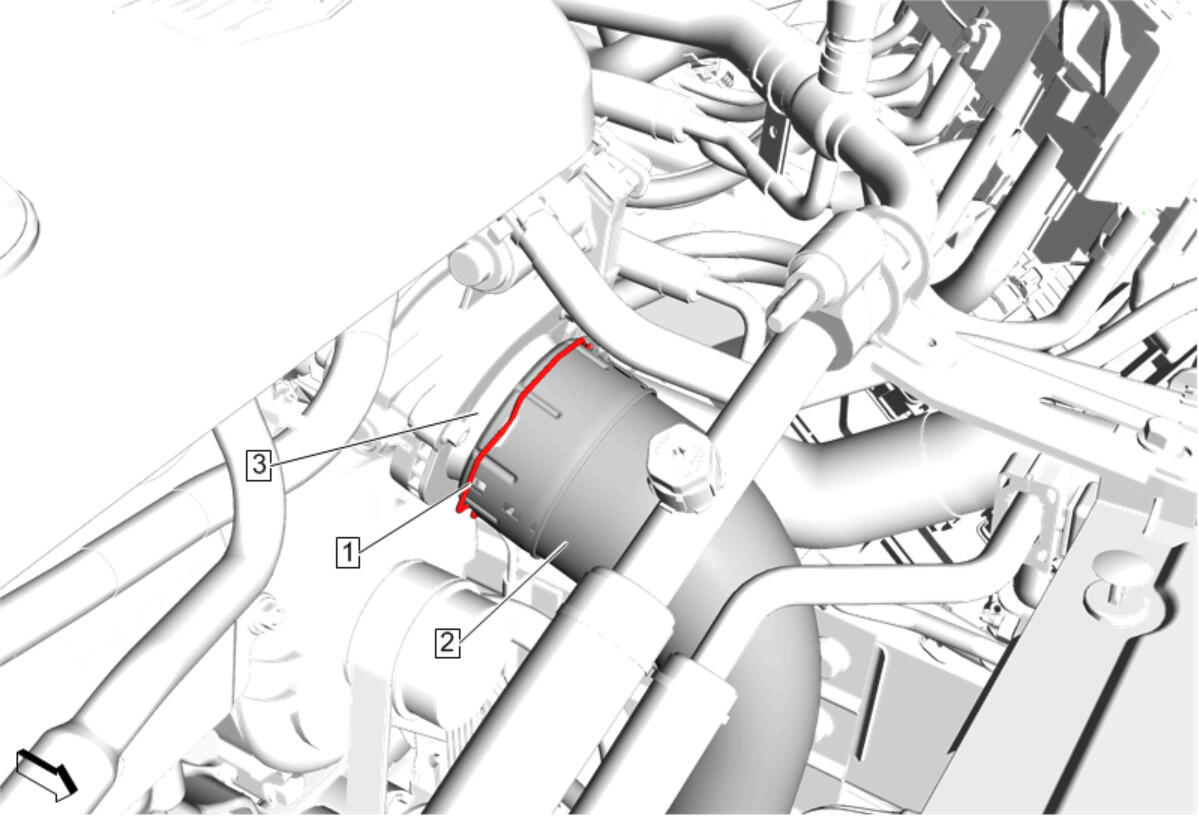

Retainer Spring (1) - Release
Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

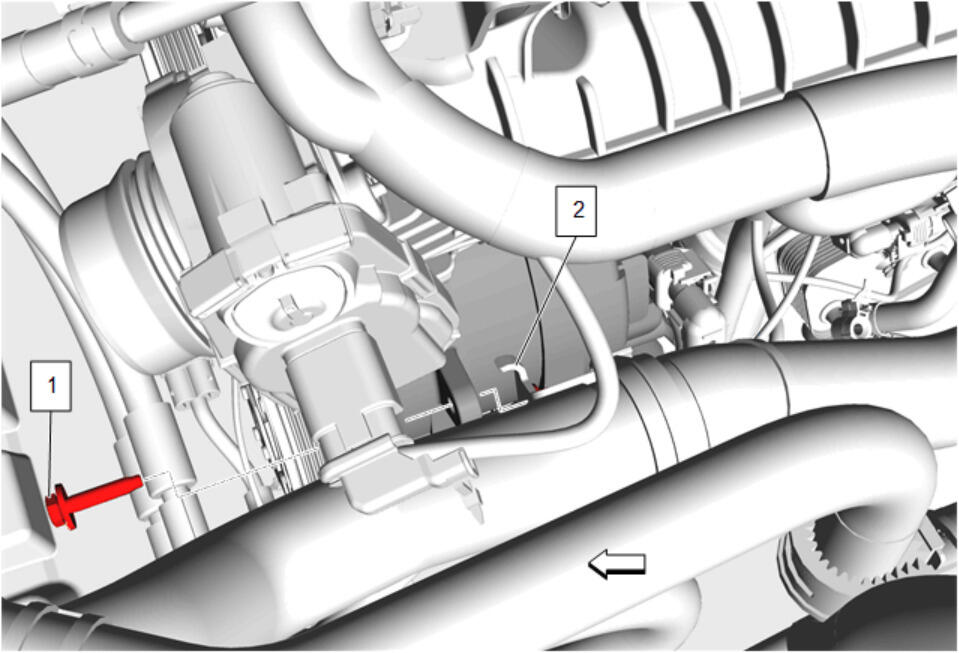

Radiator Inlet Hose Bracket Bolt (1) - Remove
Radiator Inlet Hose Bracket (2) - Reposition away
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Intake manifold is shown transparent for graphic clarity.

Battery Positive Cable Nut (1) @ Generator - Remove
Auxiliary Generator Battery Jumper Cable (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

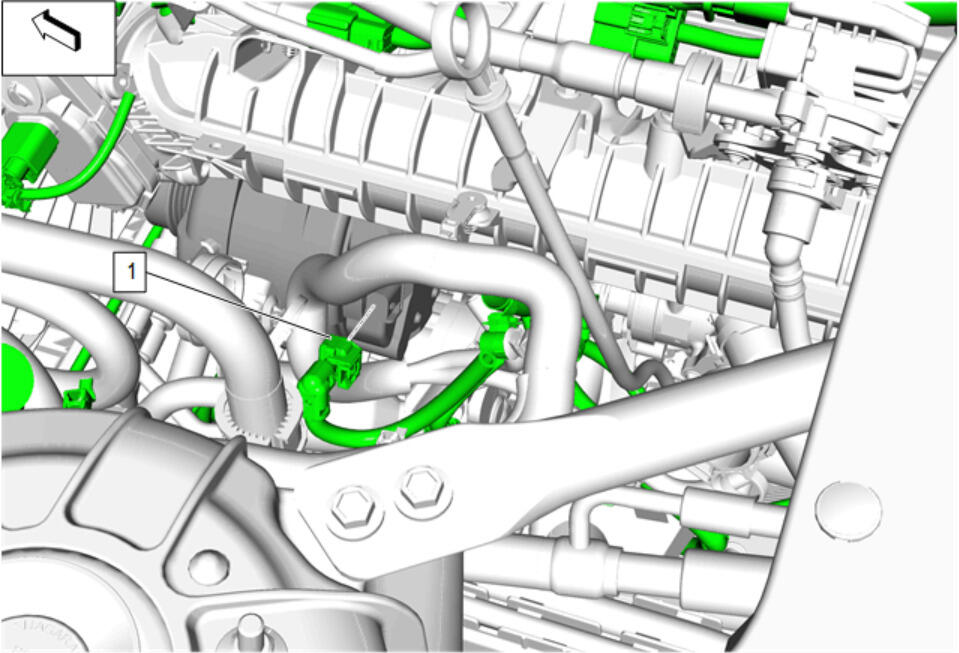

Electrical Connector (1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

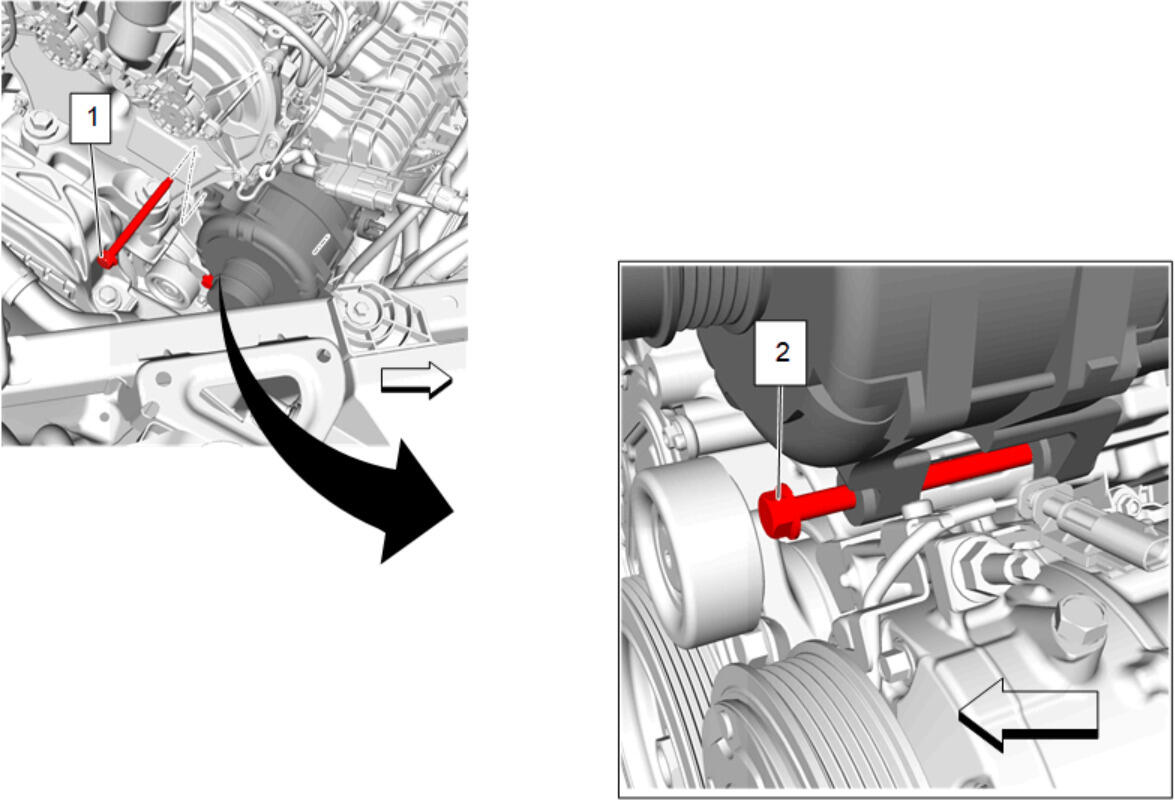

Remove the upper generator bolt (1).
Loosen the lower generator bolt (2) until it is disengaged from the generator bracket.
Courtesy of GENERAL MOTORS COMPANY

Remove the generator (1).
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector.

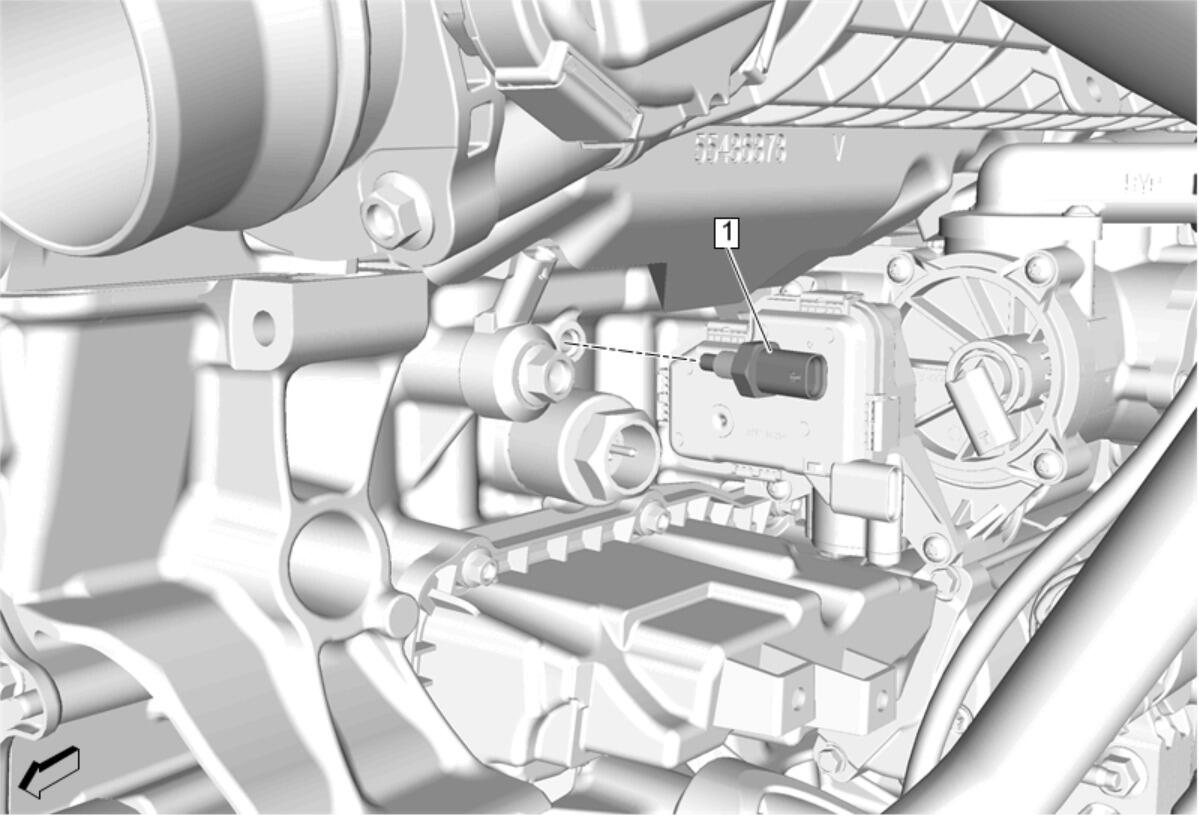

Engine Coolant Temperature Sensor (1) - Remove
