Removal Procedure

  1. Remove the oil fill cap.
  2. GM5335087Courtesy of GENERAL MOTORS COMPANY

    Lift up on the front of the intake manifold cover (1) as indicated.

  3. GM5335089Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove

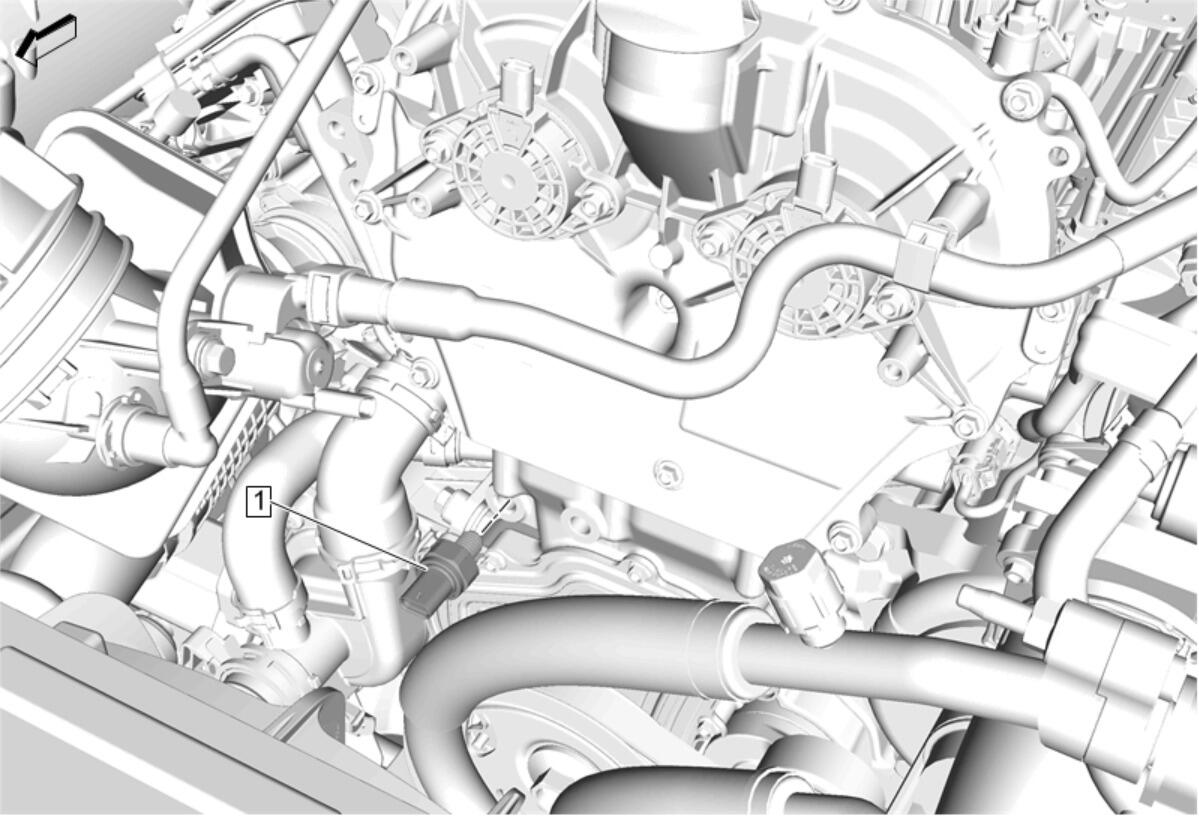

  4. GM5299707Courtesy of GENERAL MOTORS COMPANY

    Disconnect the engine oil pressure sensor electrical connector.

  5. Engine Oil Pressure Sensor (1) - Remove
