Installation Procedure

  1. GM4967492Courtesy of GENERAL MOTORS COMPANY

    The EN-52443  High Pressure Fuel Pump Alignment Tool has two ends marked with number 1 (1) and number 2 (2).

  2. GM4967236Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • The camshaft MUST be at the base circle position before the fuel pump is installed.
    • At the base circle position, the EN-52443  High Pressure Fuel Pump Alignment Tool will sit flush with the cylinder head.

    Install the EN-52443  High Pressure Fuel Pump Alignment Tool (1) with the number 2 (1) facing outward and turn the crankshaft until the camshaft lobe is at the base circle position.

  3. Remove the EN-52443  High Pressure Fuel Pump Alignment Tool (1).
  4. GM4967228Courtesy of GENERAL MOTORS COMPANY

    Lubricate the valve lifter follower (2) with clean engine oil.

  5. Valve Lifter Follower (2) - Install
  6. Fuel Pump Seal (3) - Install NEW
  7. Fuel Pump (1) - Install
  8. CAUTION:

    Alternately hand-tighten the fuel pump bolts one turn at a time until the pump is fully seated. Trying to draw down the pump without even side-to-side tightening may result in pump plunger damage.

  9. Fuel Pump Bolt (4) - Install and tighten [2x] Fastener Specifications
  10. Connect the fuel pump electrical connector.
  11. GM5314508Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Intermediate Pipe (2) - Install NEW

  12. Nut @ Fuel Feed Intermediate Pipe (2) - Tighten [2x] - Fastener Specifications
  13. Fuel Injection Fuel Feed Pipe Bolt (1) - Install - Fastener Specifications
  14. GM4967224Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

    Fuel Pump Insulator (1) - Install

  15. Reposition wiring harness as necessary.

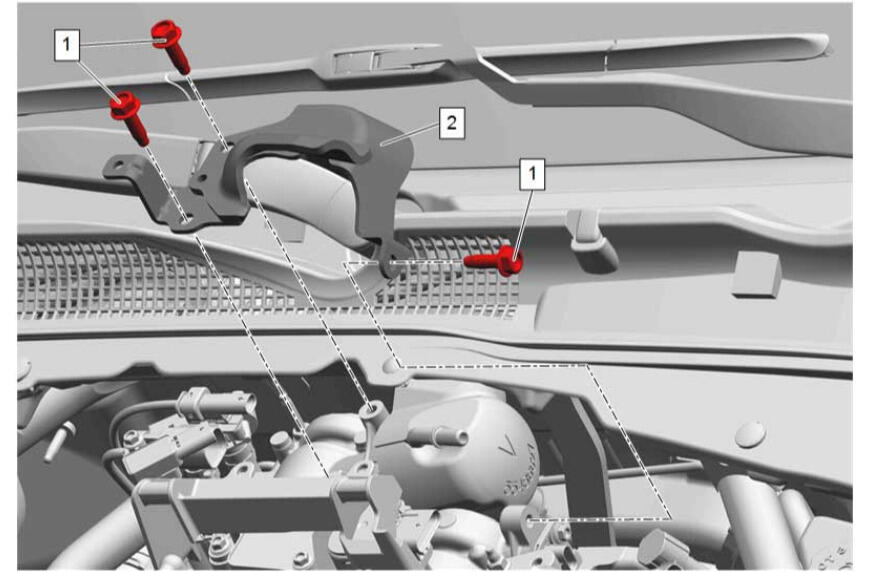

  16. GM5422918Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Cover (2) - Install

  17. Fuel Pump Shield Bolt (1) - Install and tighten [3x] - Fastener Specifications

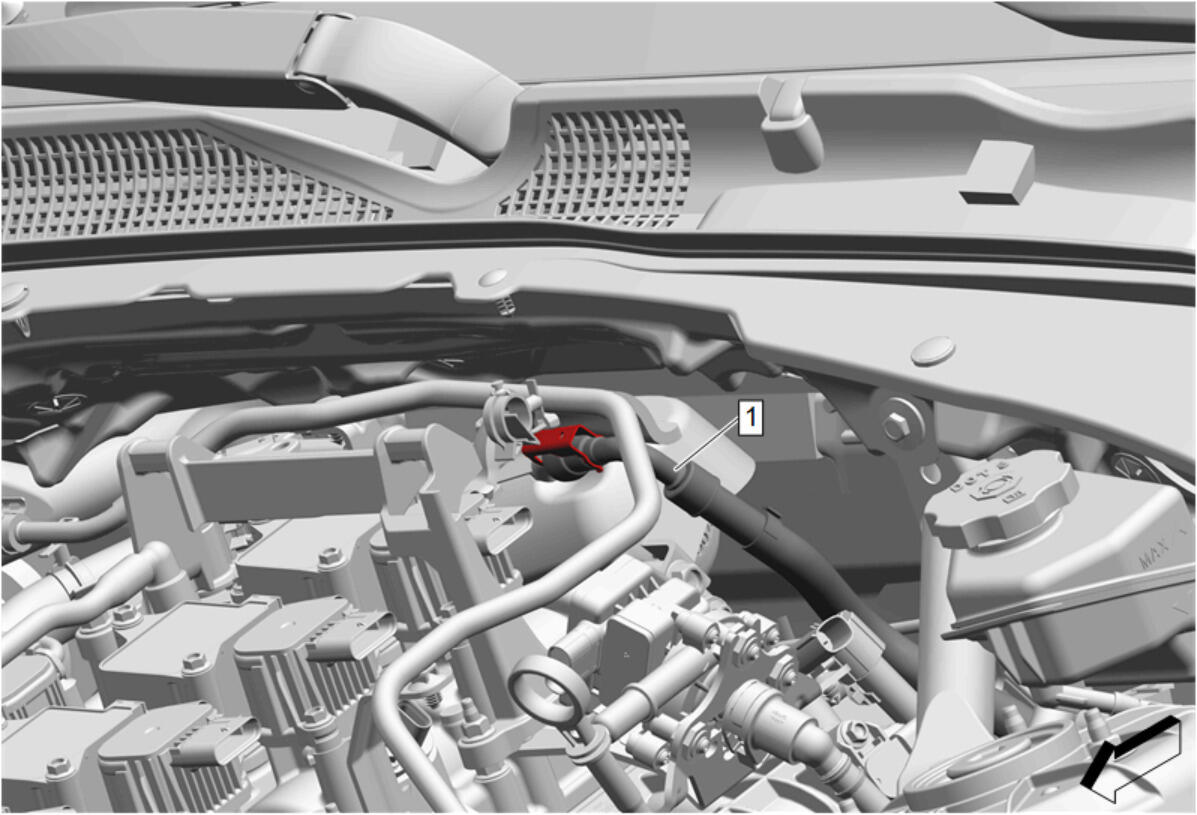

  18. GM5403825Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Pipe (1) @ Fuel Pump - Connect - Metal Collar Quick Connect Fitting Service

  19. Reposition wiring harness as necessary.

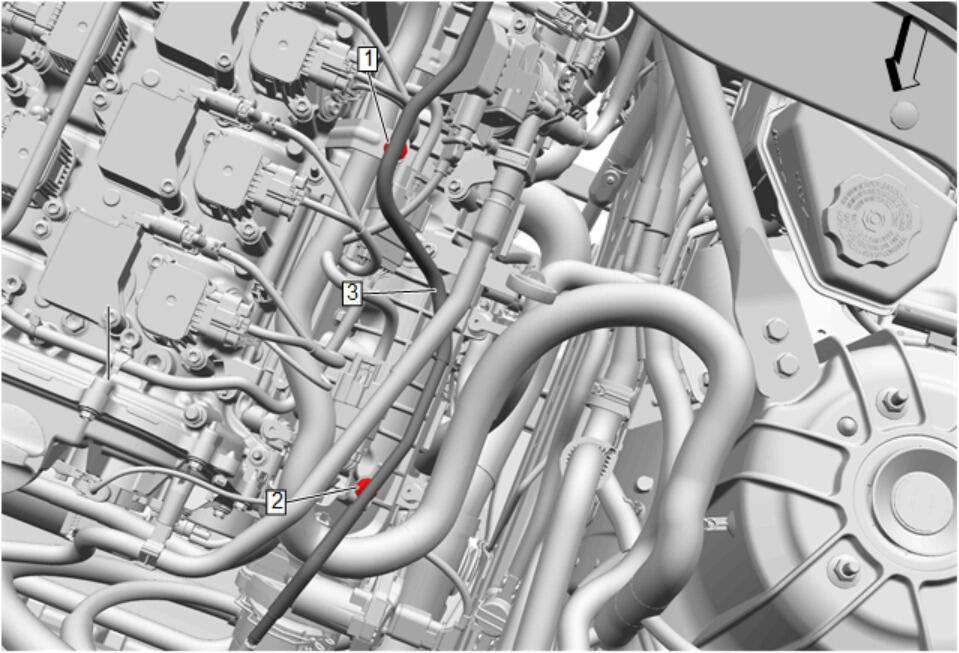

  20. GM5312610Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Outlet Pipe (3) - Install

  21. Radiator Surge Tank Inlet Hose Clip (1) @ Radiator Surge Tank Inlet Pipe Bracket - Install
  22. Radiator Surge Tank Inlet Hose Clip (2) @ Radiator Surge Tank Inlet Pipe Bracket - Install

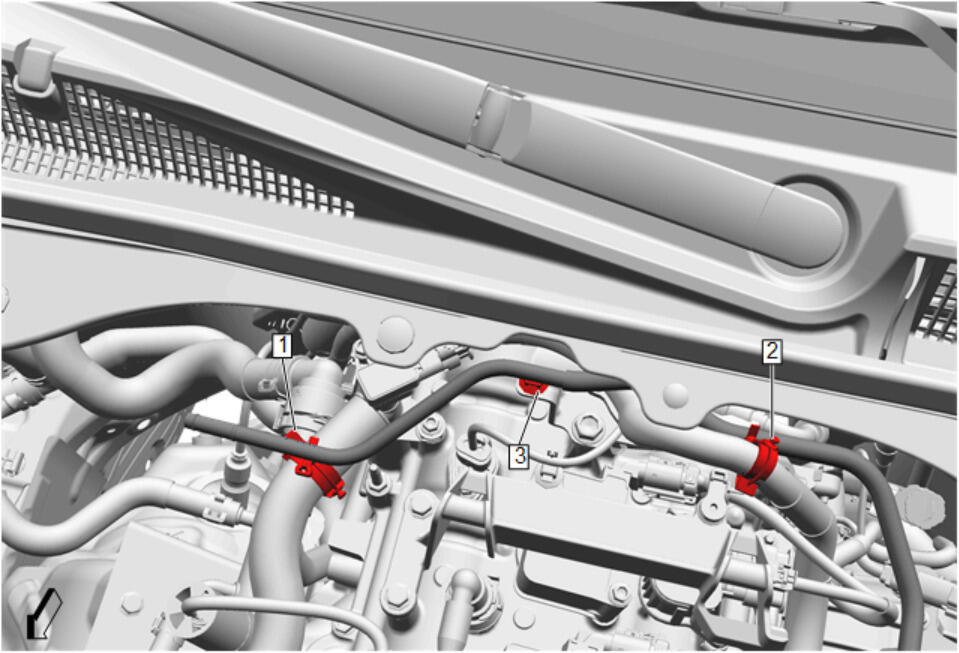

  23. GM5312607Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Inlet Hose Clip (2) @ Engine Wiring Harness - Install

  24. Radiator Surge Tank Inlet Hose Clip (1) @ Positive Crankcase Ventilation Hose - Install
  25. Radiator Surge Tank Inlet Hose Clip (3) @ Fuel Pump Cover - Install
  26. GM5335089Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  27. GM5335087Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the intake manifold cover retainers fully engage the intake manifold cover studs.

    Push down on the front of the intake manifold cover (1) engaging the intake manifold cover retainers to the intake manifold cover studs.

  28. Install the oil fill cap.
  29. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  30. Pressurize the fuel system and inspect for leaks.
    1. Turn ON the ignition with the engine OFF for 2 seconds.
    2. Turn OFF the ignition for 10 seconds.
    3. Turn ON the ignition with the engine OFF.
    4. Inspect for fuel leaks.
