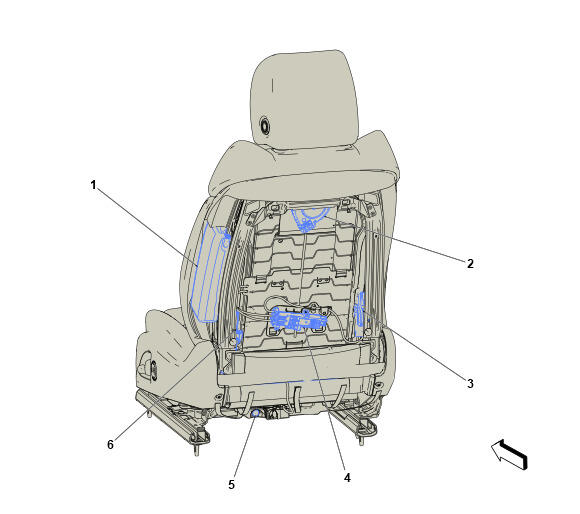

Driver Seat Back Components
Driver Seat Back Components
| Component Name | Callout |
|---|---|
| F106D Front Seat Outboard Seat Back Airbag - Driver F106D Front Seat Outboard Seat Back Airbag - Driver | 1 |
| M73A Front Seat Back Ventilation Blower - Driver M73A Front Seat Back Ventilation Blower - Driver (KU9) | 2 |
| G31D Front Seat Back Lumbar Pump - Driver (A45) G31D Front Seat Back Lumbar Pump - Driver | 3 |
| K134D Front Seat Bolster Memory Module - Driver (A45) K134D Front Seat Bolster Memory Module - Driver (A45) | 4 |
| E8VB Rear Floor Courtesy Lamp - Left E8VB Rear Floor Courtesy Lamp - Left | 5 |
| M56D Front Seat Recliner Actuator - Driver M56D Front Seat Recliner Actuator - Driver | 6 |
