Installation Procedure

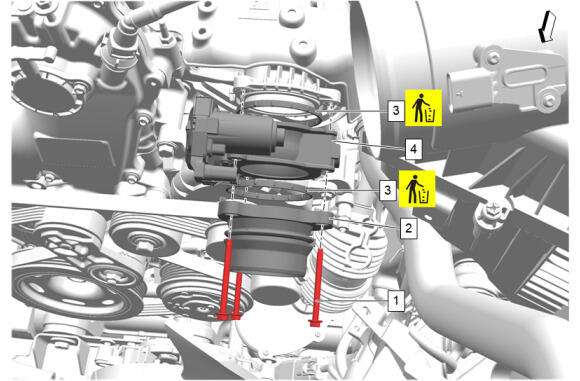

Throttle Body (4) - Install
- Throttle Body Seal (3) - Install NEW [2x]
- Throttle Body Adapter (2) - Install
- Throttle Body Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Connect the throttle body electrical connector.
Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Install
- Retainer Spring (1) - Engage
- Perform the intake system learned values reset. Intake System Learned Values Reset
- Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
CAUTION:
Refer to Fastener Caution
