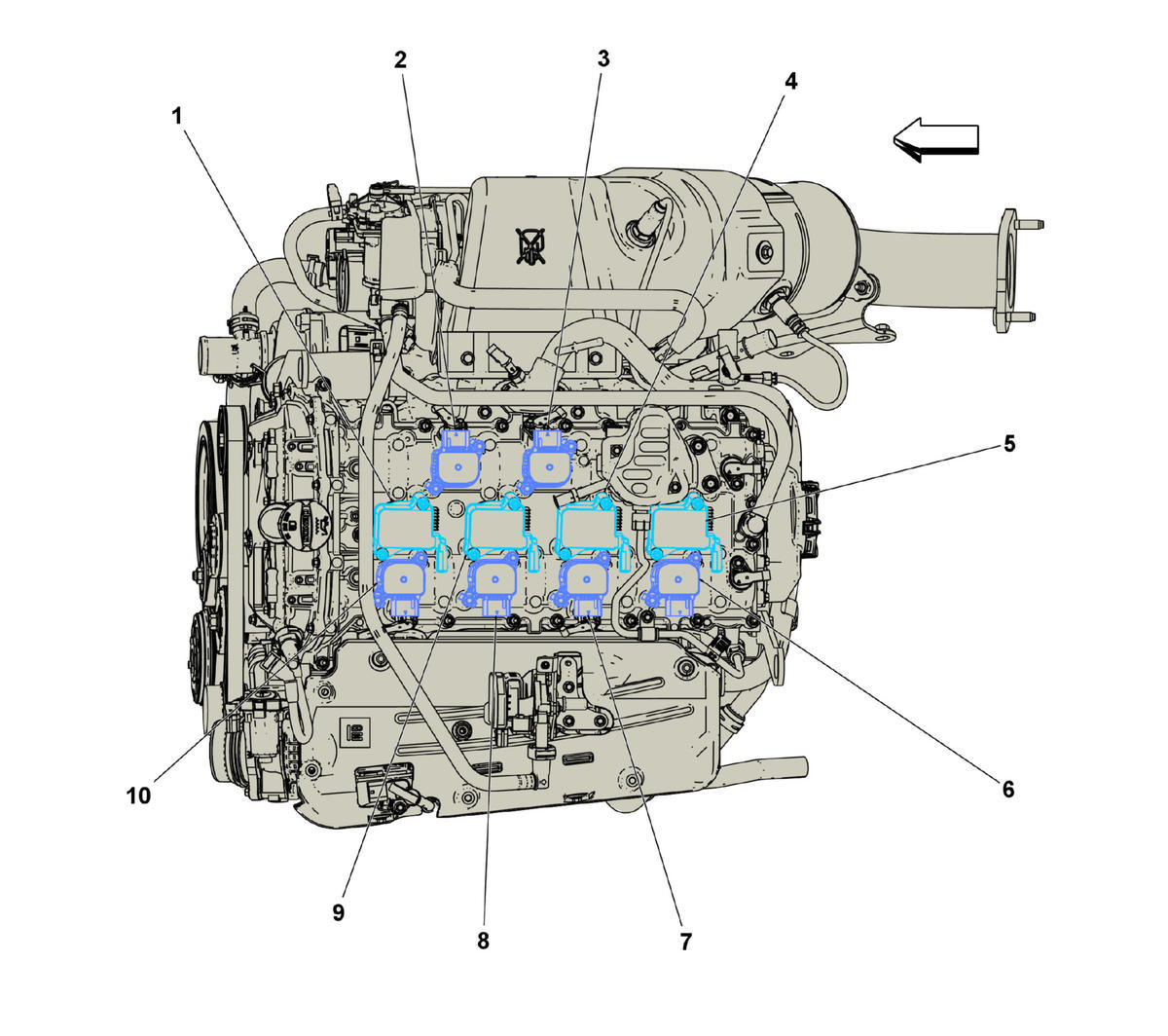

Engine Components - Top (L3B)
Engine Components - Top (L3B)
| Component Name | Callout |
|---|---|
| T8A Ignition Coil 1 T8A Ignition Coil 1 (L3B) | 1 |
| M130B Exhaust Camshaft Profile Actuator 2 M130B Exhaust Camshaft Profile Actuator 2 | 2 |
| M130C Exhaust Camshaft Profile Actuator 3 M130C Exhaust Camshaft Profile Actuator 3 | 3 |
| T8C Ignition Coil 3 T8C Ignition Coil 3 (L3B) | 4 |
| T8D Ignition Coil 4 T8D Ignition Coil 4 (L3B) | 5 |
| M129D Intake Camshaft Profile Actuator 4 M129D Intake Camshaft Profile Actuator 4 | 6 |
| M129C Intake Camshaft Profile Actuator 3 M129C Intake Camshaft Profile Actuator 3 | 7 |
| M129B Intake Camshaft Profile Actuator 2 M129B Intake Camshaft Profile Actuator 2 | 8 |
| T8B Ignition Coil 2 T8B Ignition Coil 2 (L3B) | 9 |
| M129A Intake Camshaft Profile Actuator 1 M129A Intake Camshaft Profile Actuator 1 | 10 |
