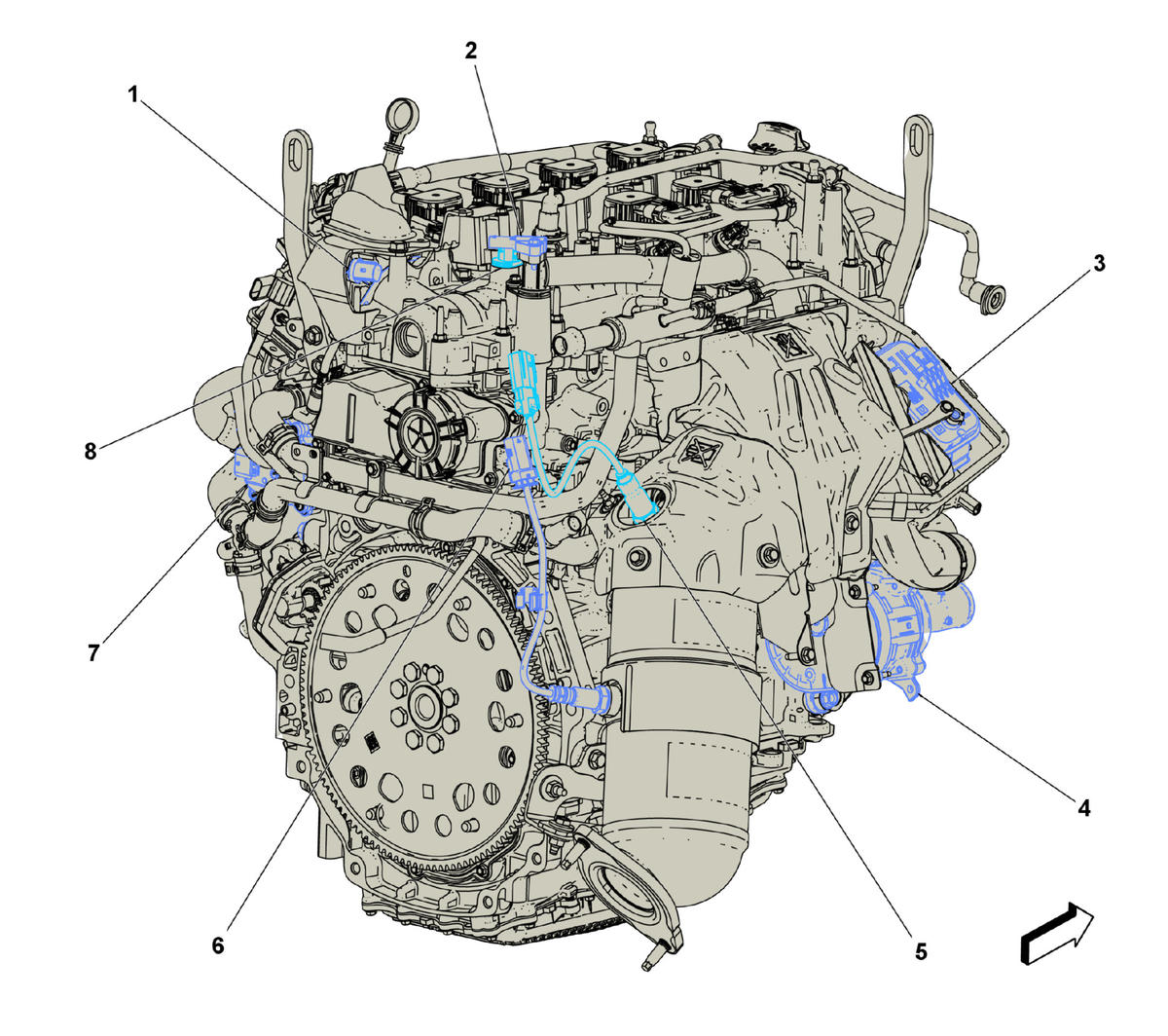

Right Rear of Engine Components (LSY)
Right Rear of Engine Components (LSY)
| Component Name | Callout |
|---|---|
| G18 Fuel Pump - High Pressure G18 Fuel Pump - High Pressure (LSY/L3B) | 1 |
| B321 Crankcase Pressure Sensor B321 Crankcase Pressure Sensor | 2 |
| M128 Turbocharger Wastegate Actuator M128 Turbocharger Wastegate Actuator | 3 |
| G59 Engine Coolant Pump G59 Engine Coolant Pump | 4 |
| B52A Heated Oxygen Sensor 1 (LSY/L3B) B52A Heated Oxygen Sensor 1 (LSY) | 5 |
| B52B Heated Oxygen Sensor 2 (LSY/L3B) B52B Heated Oxygen Sensor 2 (LSY/L3B) | 6 |
| Q74 Engine Coolant Bypass Valve Q74 Engine Coolant Bypass Valve | 7 |
| B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust | 8 |
