Removal Procedure

  1. Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.
  2. GM5422815Courtesy of GENERAL MOTORS COMPANY

    Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover.

  3. Instrument Panel Steering Column Upper Trim Cover (1) - Reposition
  4. GM5730572Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Instrument panel steering column upper trim cover is removed for graphic clarity.

    Disconnect the electrical connector (1), if equipped.

  5. GM5441328Courtesy of GENERAL MOTORS COMPANY

    Rotate the steering wheel left and right to access the instrument panel steering column lower trim cover bolts (1).

  6. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove [3x]
  7. Instrument Panel Steering Column Lower Trim Cover (2) - Remove

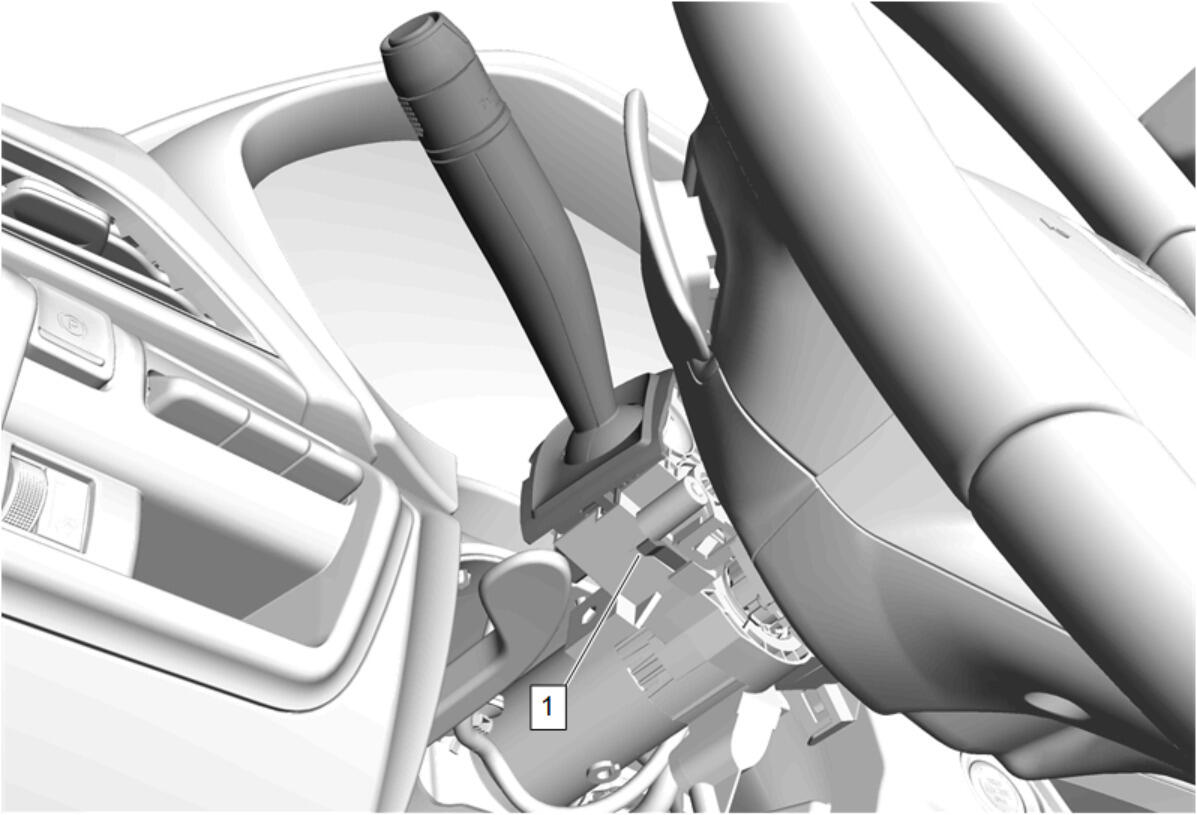

  8. GM5422330Courtesy of GENERAL MOTORS COMPANY

    Disengage the turn signal lower retaining tab (1).

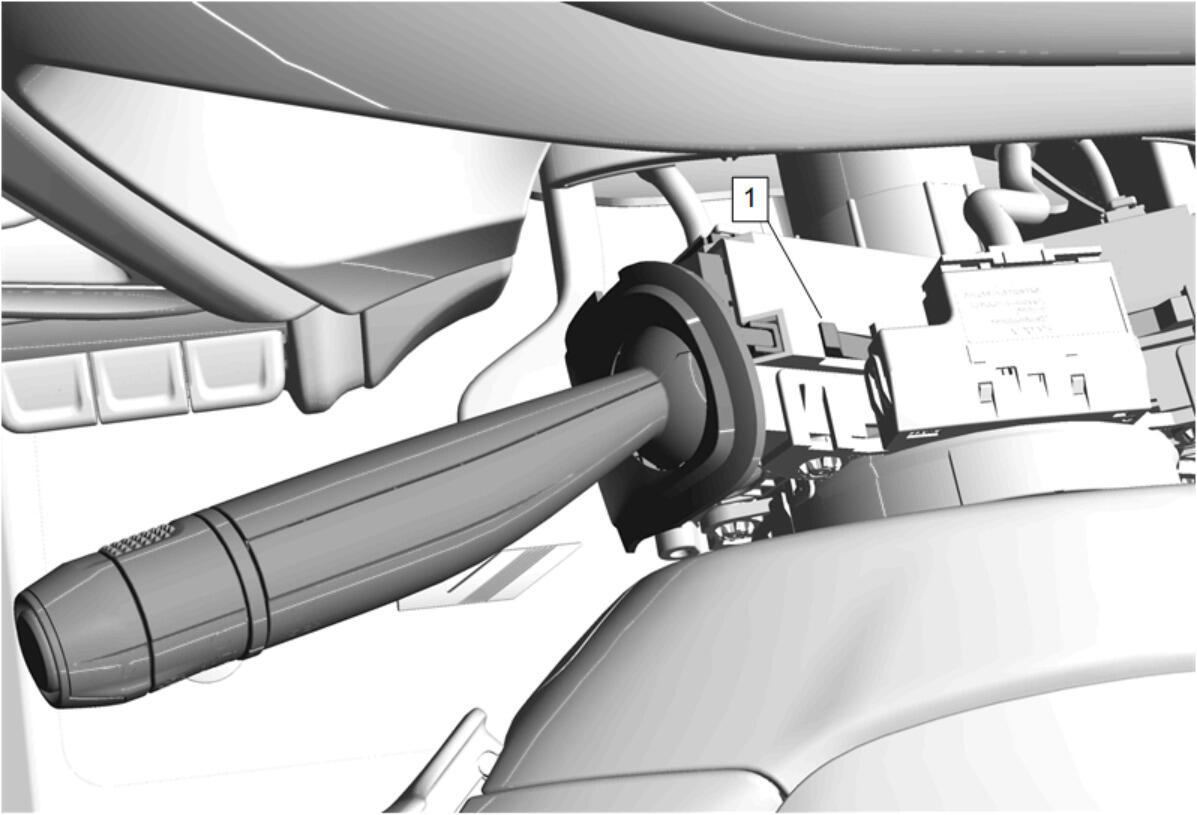

  9. GM5422335Courtesy of GENERAL MOTORS COMPANY

    Disengage the turn signal upper retaining tab (1).

  10. Disconnect the electrical connector.
  11. GM5422336Courtesy of GENERAL MOTORS COMPANY

    Turn Signal Switch (1) - Remove
