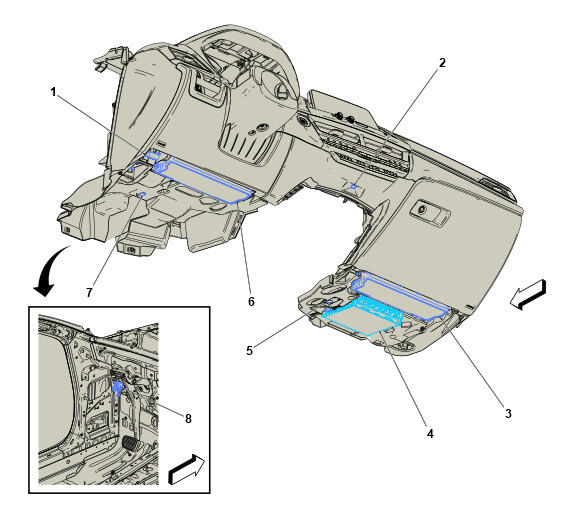

Bottom of Instrument Panel Components
 Courtesy of GENERAL MOTORS COMPANY
|
Bottom of Instrument Panel Components
| Component Name |
Callout |
| X84 Data Link Connector X84 Data Link Connector |
1 |
| E1W Instrument Panel Light Conductor Lamp E1W Instrument Panel Light Conductor Lamp |
2 |
| F114P Instrument Panel Lower Airbag - Passenger F114P Instrument Panel Lower Airbag - Passenger (-M5N)
, or F114P Instrument Panel Lower Airbag - Passenger (M5N) |
3 |
| K9 Body Control Module K9 Body Control Module X1
, or K9 Body Control Module X2
, or K9 Body Control Module X3
, or K9 Body Control Module X4
, or K9 Body Control Module X5
, or K9 Body Control Module X6
, or K9 Body Control Module X7
, or K9 Body Control Module X8 |
4 |
| E8VC Front Floor Courtesy Lamp - Right E8VC Front Floor Courtesy Lamp - Right |
5 |
| F114D Instrument Panel Lower Airbag - Driver F114D Instrument Panel Lower Airbag - Driver (-M5N)
, or F114D Instrument Panel Lower Airbag - Driver (M5N) |
6 |
| E8VA Front Floor Courtesy Lamp - Left E8VA Front Floor Courtesy Lamp - Left |
7 |
| B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor (-MG9)
, or B22 Brake Pedal Position Sensor (MG9) |
8 |
