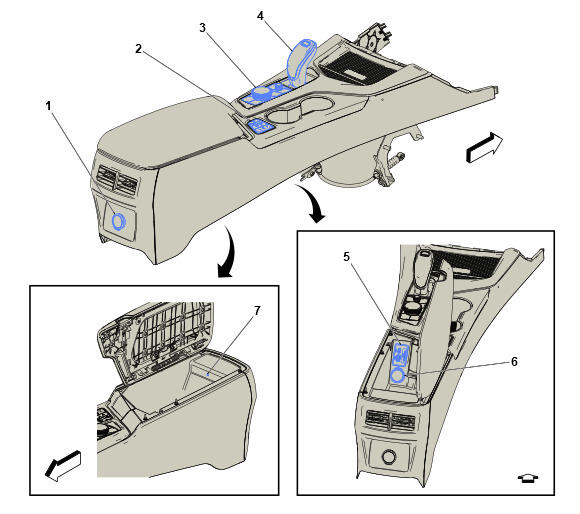

Center Console Components
Center Console Components
| Component Name | Callout |
|---|---|
| X80L Front Floor Console Accessory Power Rear Receptacle X80L Front Floor Console Accessory Power Rear Receptacle | 1 |
| S86 Vehicle Stability Control System Switch S86 Vehicle Stability Control System Switch (-MG9) , or S86 Vehicle Stability Control System Switch (MG9) | 2 |
| S165 Infotainment Control Switch S165 Infotainment Control Switch | 3 |
| K212 Gear Shift Control Module K212 Gear Shift Control Module | 4 |
| X23 Multimedia Receptacle X23 Multimedia Receptacle X1 | 5 |
| X80D Accessory Power Receptacle - Floor Console Compartment X80D Accessory Power Receptacle - Floor Console Compartment | 6 |
| E88 Front Floor Console Bin Lamp E88 Front Floor Console Bin Lamp | 7 |
