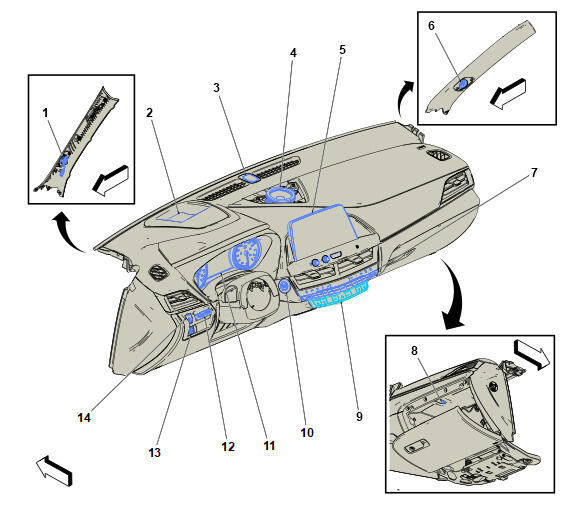

Front of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY

Front of Instrument Panel Components

Component Name	Callout
P19H Radio Windshield Side Garnish Molding Speaker - Left Front P19H Radio Windshield Side Garnish Molding Speaker - Left Front (M5N/MQA) , or P19H Radio Windshield Side Garnish Molding Speaker - Left Front (MG9/MHU)	1
P29 Head-Up Display (UV6) P29 Head-Up Display X1 , or P29 Head-Up Display X2	2
B10B Sun Load Temperature and Ambient Light and Security Indicator Sensor B10B Sun Load Temperature and Ambient Light and Security Indicator Sensor	3
P19B Radio Front Center Speaker P19B Radio Front Center Speaker (UQG) , or P19B Radio Front Center Speaker (UQS)	4
A22 Radio Control A22 Radio Control X1 , or A22 Radio Control X2	5
P19V Radio Windshield Side Garnish Molding Speaker - Right Front P19V Radio Windshield Side Garnish Molding Speaker - Right Front (M5N/MQA) , or P19V Radio Windshield Side Garnish Molding Speaker - Right Front (MG9/MHU)	6
A26 Heater and Air Conditioning User Interface Control - Front A26 Heater and Air Conditioning User Interface Control - Front	7
E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp	8
S26 Hazard Warning Switch S26 Hazard Warning Switch	9
S38 On/Off Vehicle Switch S38 On/Off Vehicle Switch	10
P16 Instrument Panel Cluster Control Module P16 Instrument Panel Cluster Control Module X1 , or P16 Instrument Panel Cluster Control Module X2 , or P16 Instrument Panel Cluster Control Module X3	11
S27 Head-Up Display Switch S27 Head-Up Display Switch	12
S36 Dimmer Switch S36 Dimmer Switch	13
S91 Parking Brake Control Switch S91 Parking Brake Control Switch	14
