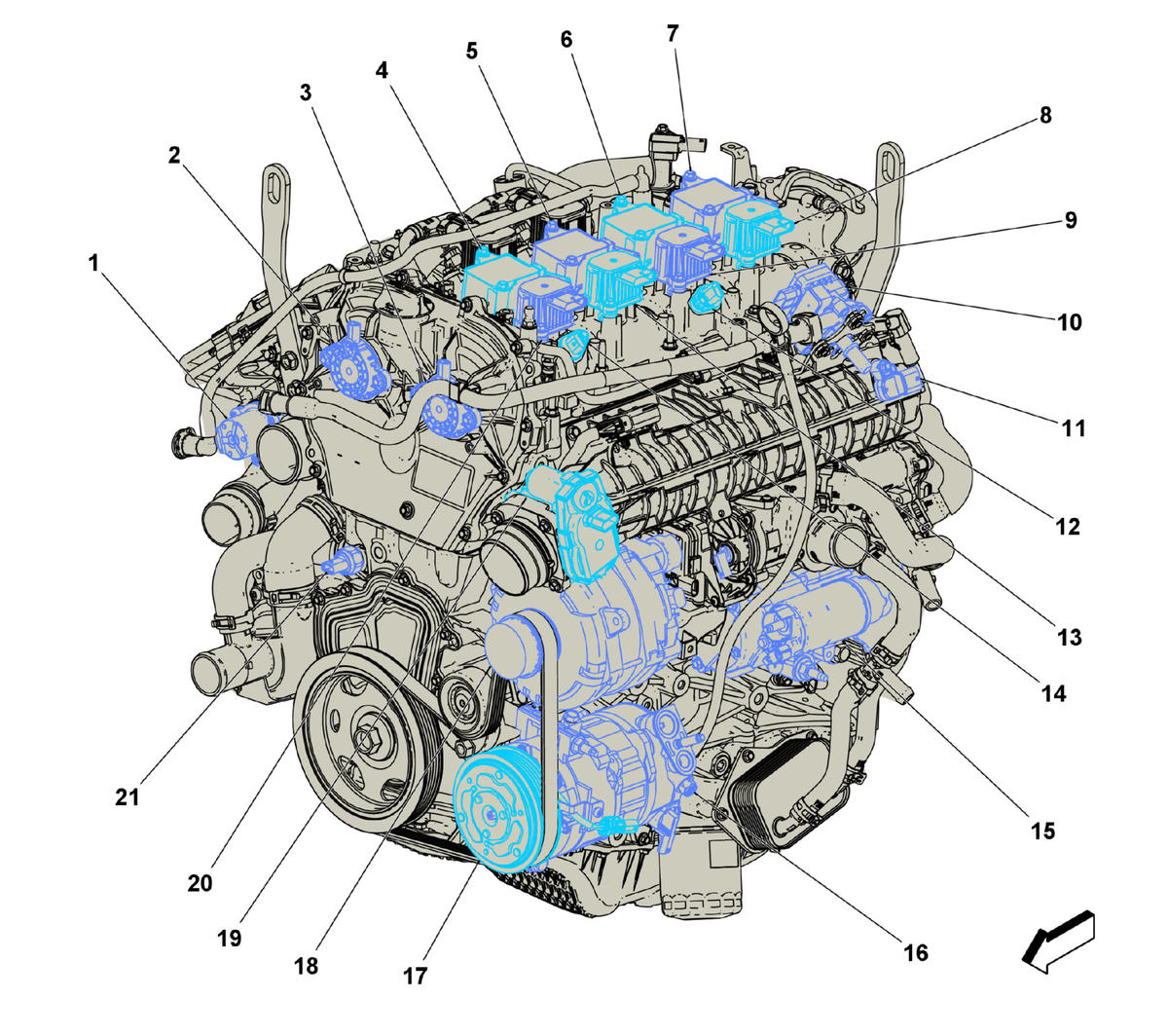

Front of Engine Compartment (LSY)
Front of Engine Compartment (LSY)
| Harness Name | Callout |
|---|---|
| Q40 Turbocharger Bypass Valve Solenoid (LSY/L3B) Q40 Turbocharger Bypass Valve Solenoid | 1 |
| Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY/L3B) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY) | 2 |
| Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY/L3B) Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY) | 3 |
| T8A Ignition Coil 1 T8A Ignition Coil 1 (LSY) | 4 |
| T8B Ignition Coil 2 T8B Ignition Coil 2 (LSY) | 5 |
| T8C Ignition Coil 3 T8C Ignition Coil 3 (LSY) | 6 |
| T8D Ignition Coil 4 T8D Ignition Coil 4 (LSY) | 7 |
| M129D Intake Camshaft Profile Actuator 4 M129D Intake Camshaft Profile Actuator 4 | 8 |
| M129C Intake Camshaft Profile Actuator 3 M129C Intake Camshaft Profile Actuator 3 | 9 |
| G58 Evaporative Emission Canister Purge Pump G58 Evaporative Emission Canister Purge Pump | 10 |
| B65 Manifold Absolute Pressure and Intake Air Temperature Sensor B65 Manifold Absolute Pressure and Intake Air Temperature Sensor | 11 |
| B338B Intake Camshaft Profile Sleeve Position Sensor 2 B338B Intake Camshaft Profile Sleeve Position Sensor 2 | 12 |
| M129B Intake Camshaft Profile Actuator 2 M129B Intake Camshaft Profile Actuator 2 | 13 |
| B338A Intake Camshaft Profile Sleeve Position Sensor 1 B338A Intake Camshaft Profile Sleeve Position Sensor 1 | 14 |
| M64 Starter M64 Starter X1 (L3B/LSY) , or M64 Starter X2 (LSY) | 15 |
| Q46 Air Conditioning Compressor Solenoid Valve Q46 Air Conditioning Compressor Solenoid Valve | 16 |
| Q2 Air Conditioning Clutch Q2 Air Conditioning Clutch | 17 |
| G13 Generator G13 Generator X1 (LSY/L3B) , or G13 Generator X2 (LSY/L3B) | 18 |
| Q38 Throttle Body Q38 Throttle Body | 19 |
| M129A Intake Camshaft Profile Actuator 1 M129A Intake Camshaft Profile Actuator 1 | 20 |
| B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor | 21 |
