Installation Procedure

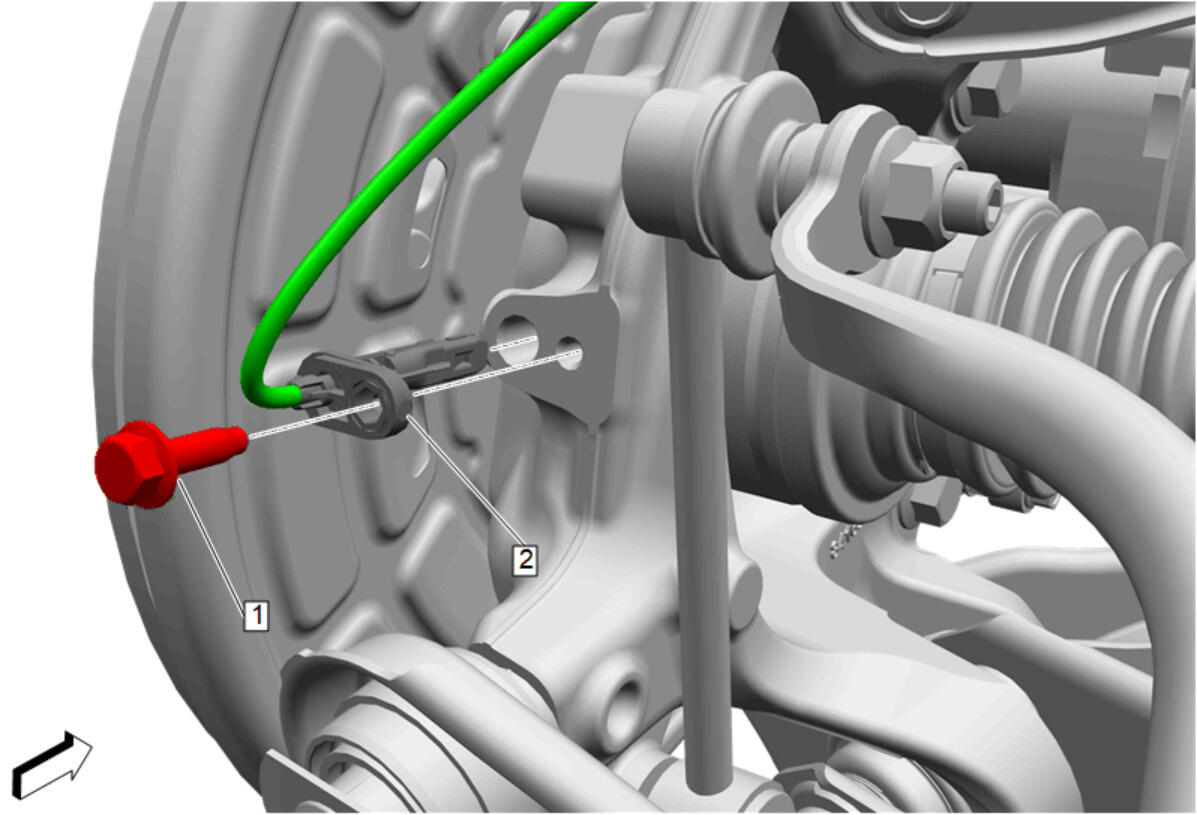

  1. GM5316676Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Rear Wheel Speed Sensor Bolt (1) - Install and tighten 9 N.m (80 lb in)

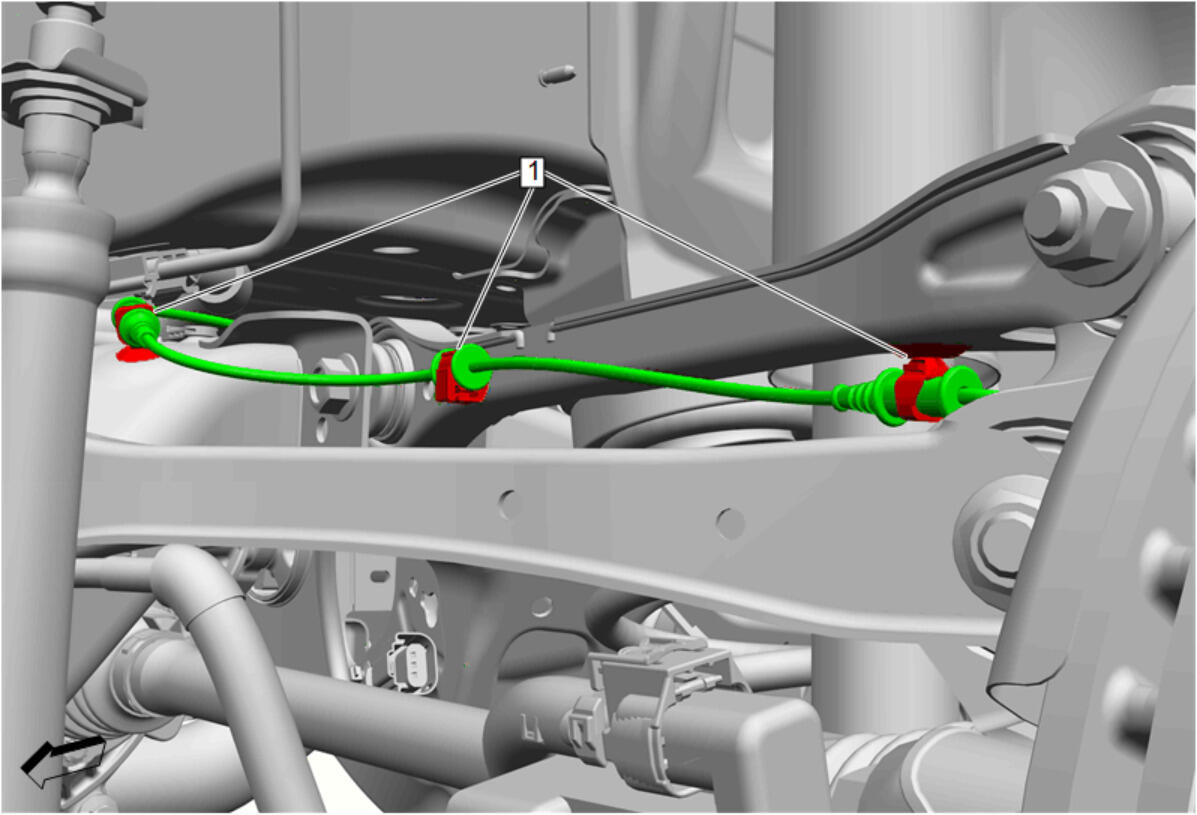

  3. GM5316686Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Secure [ 3x ]

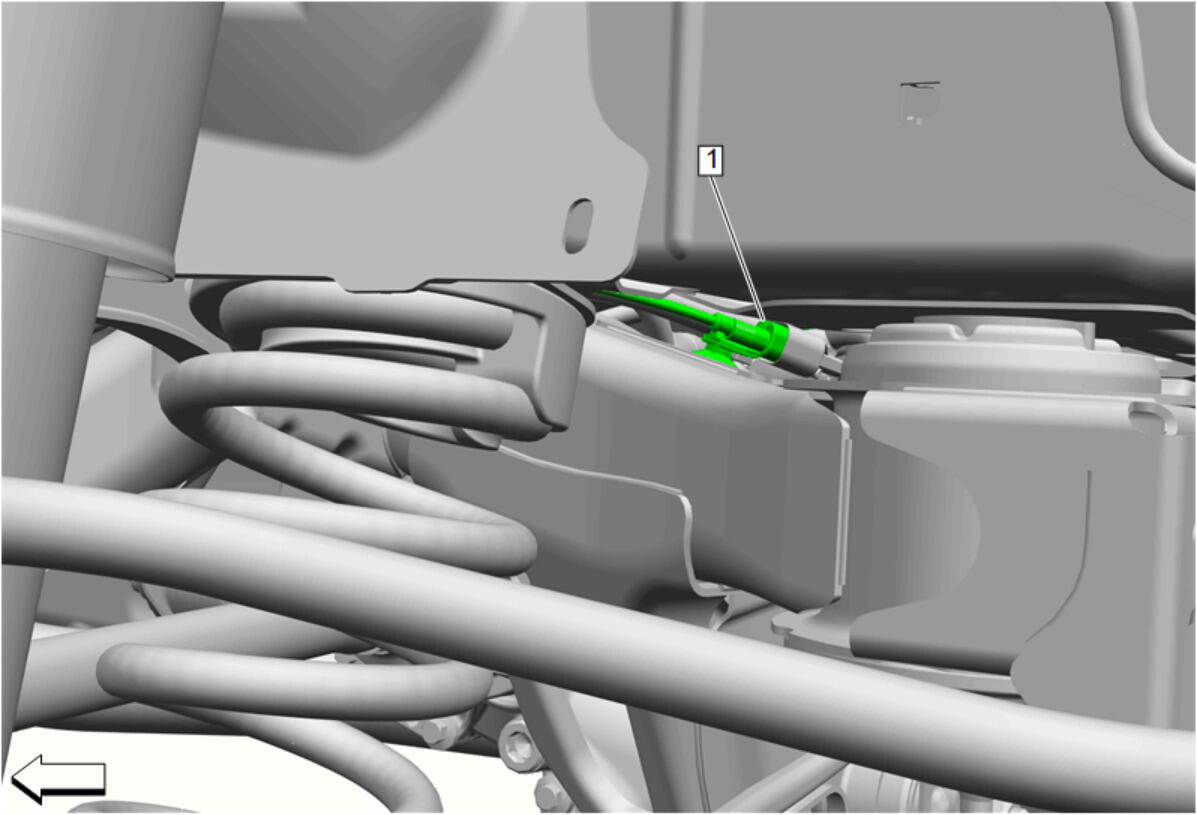

  4. GM5316698Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Electrical Connector (1) - Connect

  5. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  6. Remove the support and lower the vehicle.
