Cadillac
›
2021
›
CT5 V, 4WD
›
Repair and Diagnosis
›
Accessories & Equipment
›
Drivers Assistance Systems - ADAS
›
Driver Assistance Systems
›
Schematic Wiring Diagrams
›
Driver Assistance Systems Wiring Schematics
›

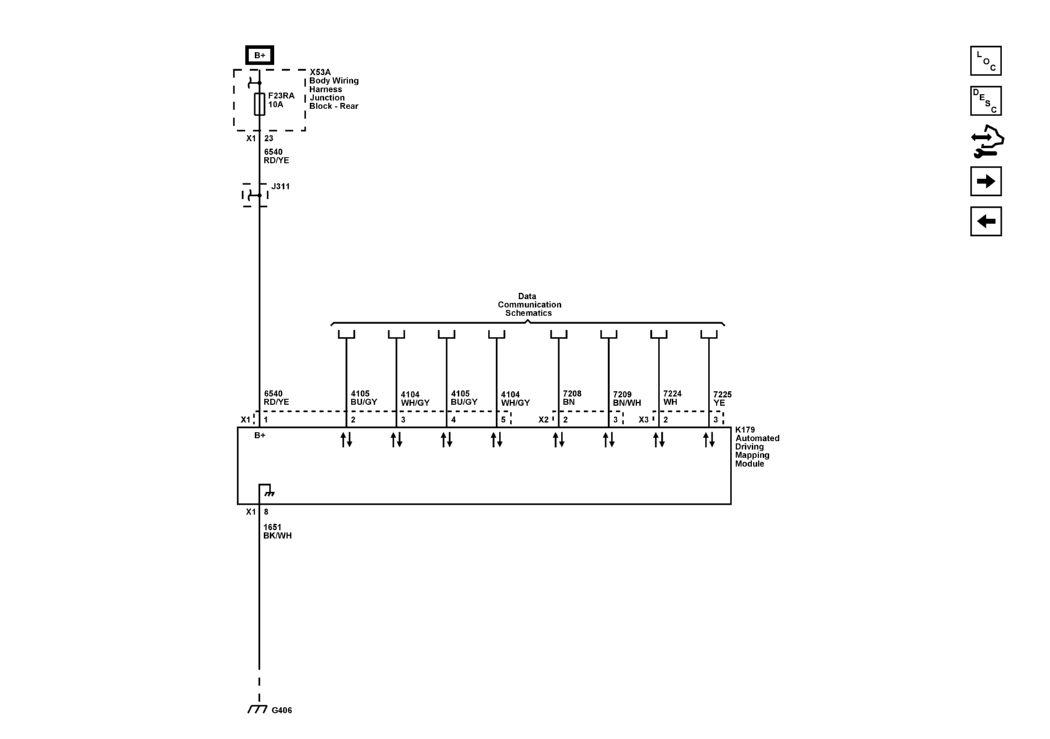

Digital Map Control Module (UKL)
Digital Map Control Module (UKL)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
