Rear Side Door Lock Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Side Door Trim Replacement Reposition insulator, as required.

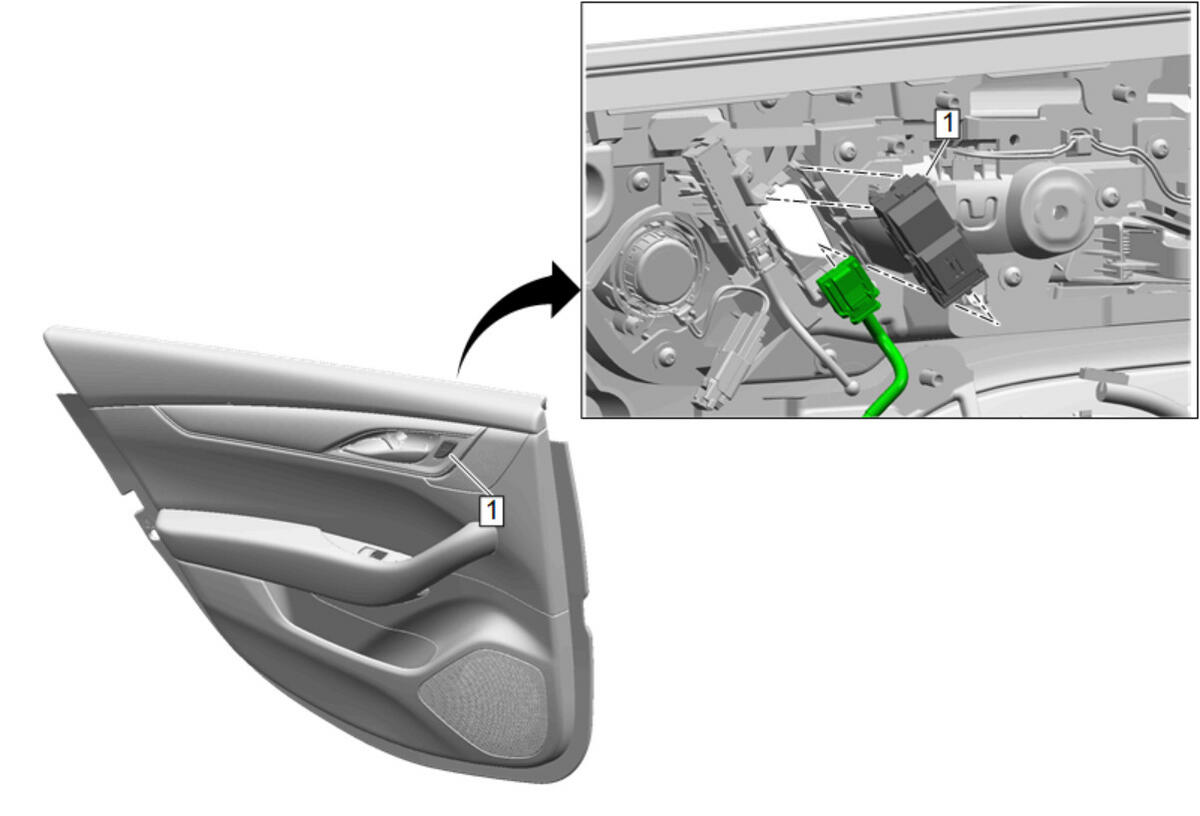

1	Rear Side Door Lock Procedure From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the rear side door trim. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Rear Side Door Lock

Procedure

From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the rear side door trim.
Disconnect the electrical connector.
