Installation Procedure

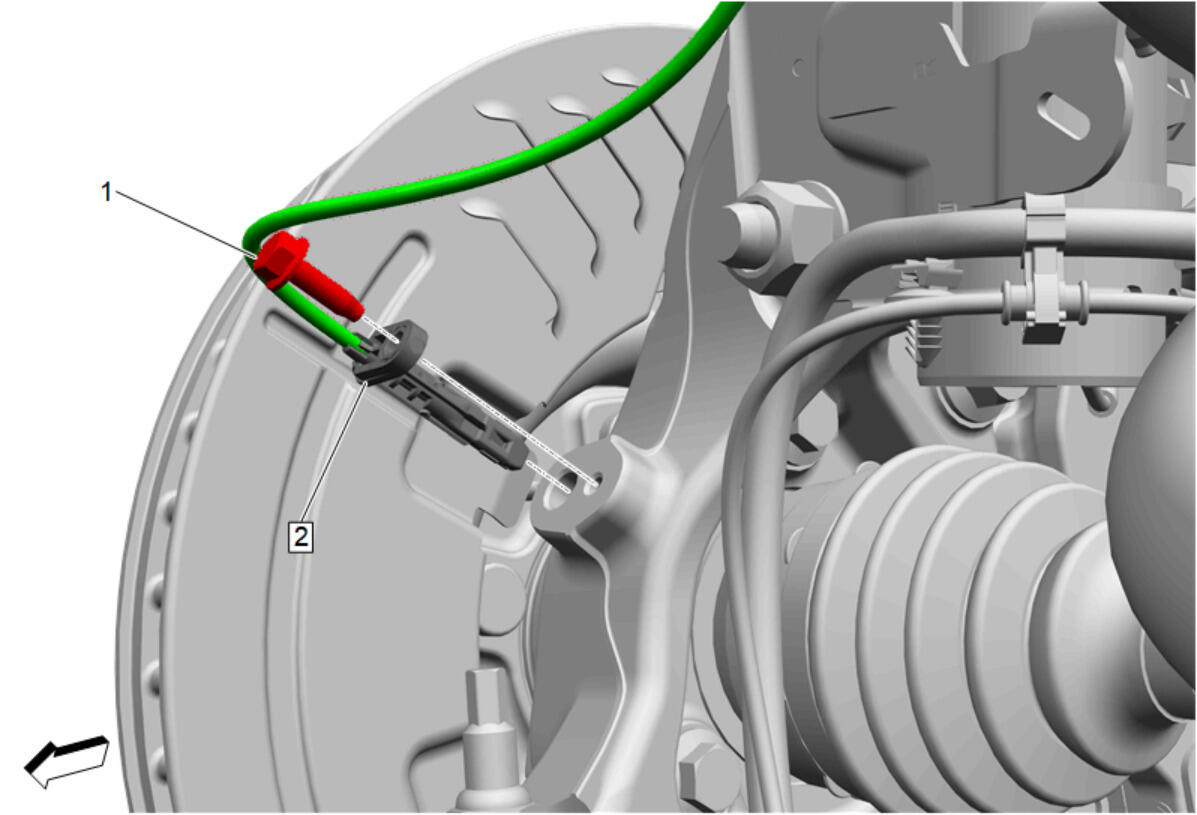

  1. GM5324659Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Front Wheel Speed Sensor Bolt (1) - Install and tighten 9 N.m (80 lb in)

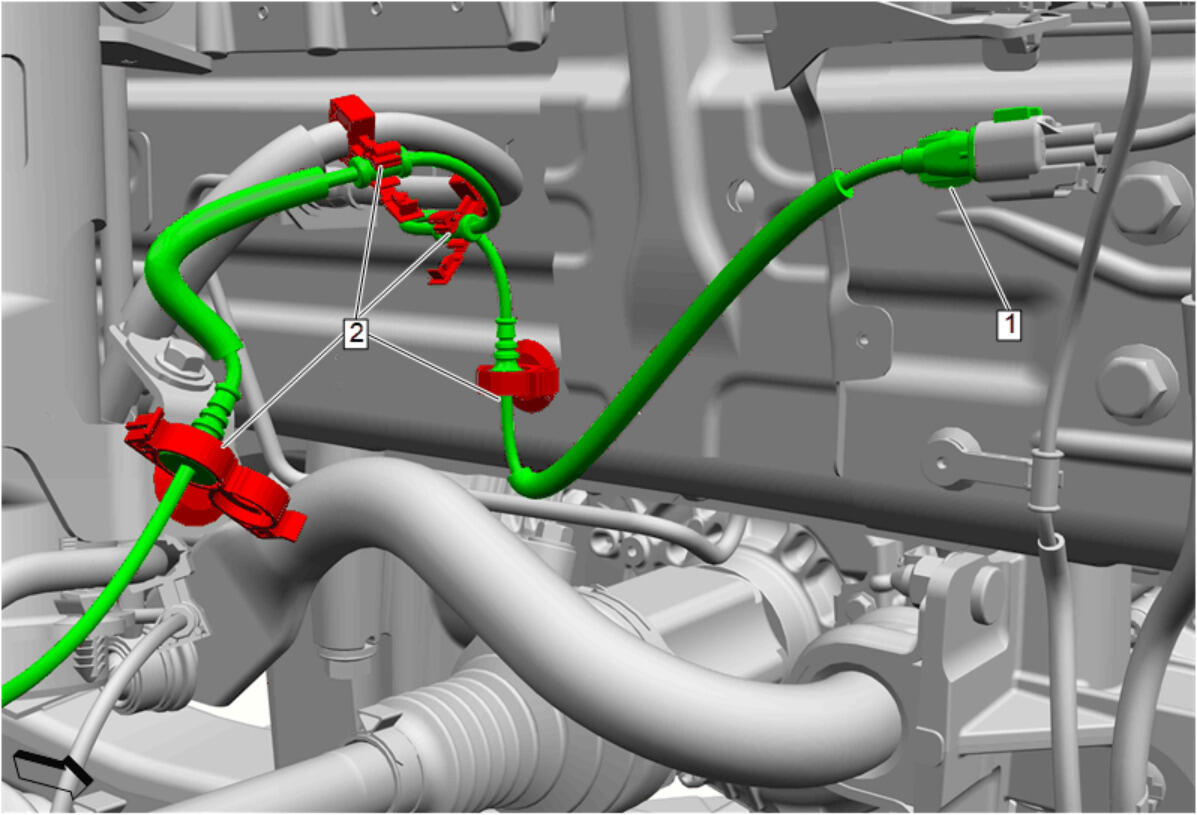

  3. GM5324661Courtesy of GENERAL MOTORS COMPANY

    Retainer (2) - Secure [ 4x ]

  4. Front Wheel Speed Sensor Electrical Connector (1) - Connect
  5. Front Wheelhouse Liner - Install - Front Wheelhouse Liner Replacement
