Driver Pedal Components

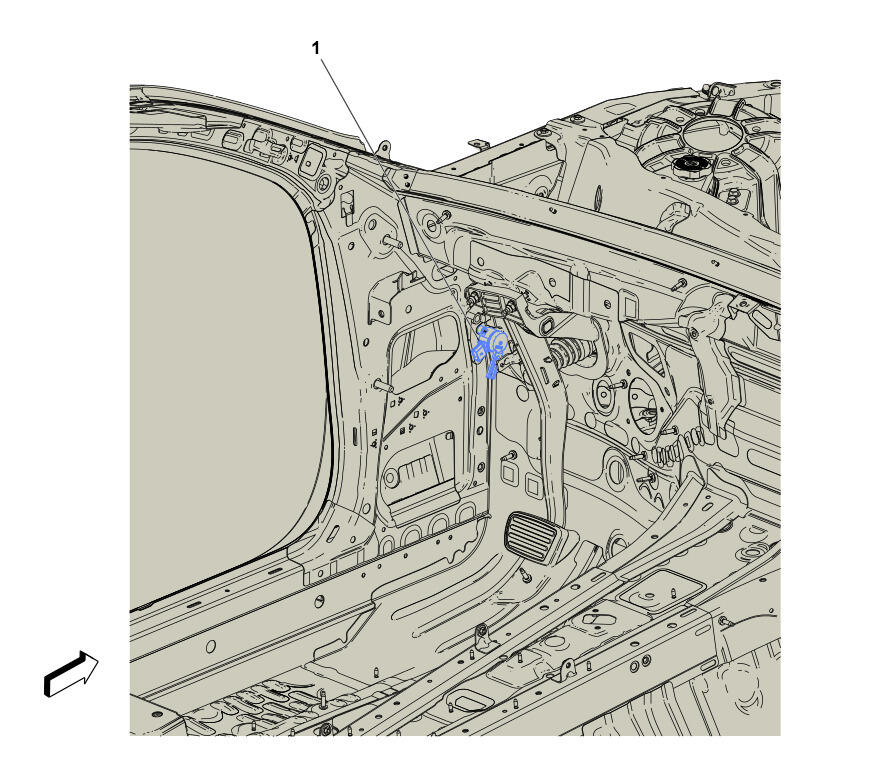

GM5330427Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Driver Pedal Components

Component Name Callout
B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor 1
