Installation Procedure

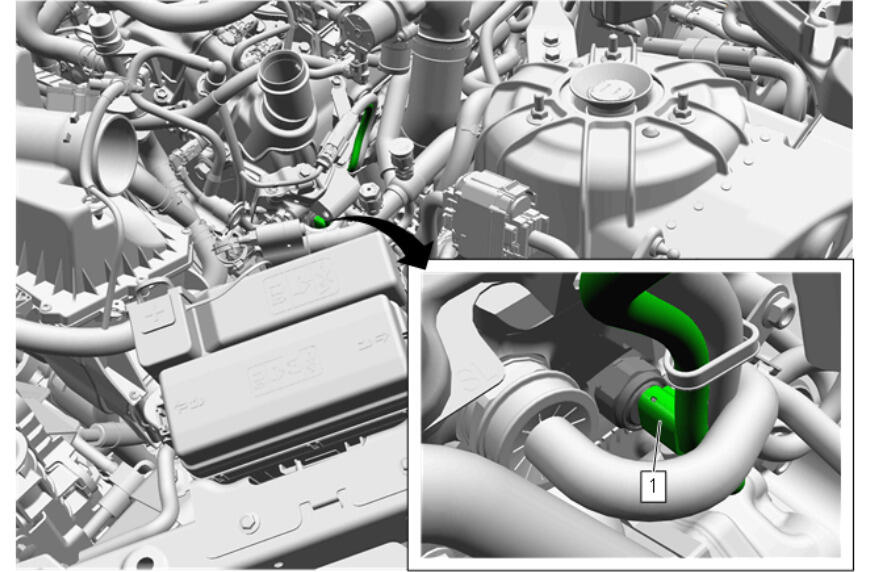

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

CAUTION:
Refer to Fastener Caution .

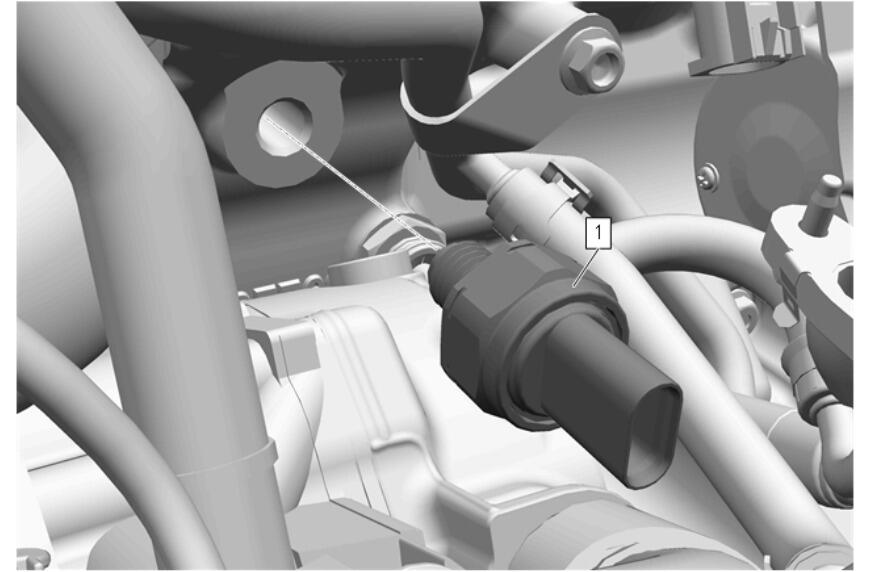

Engine Oil Pressure Sensor (1) - Install and tighten 35 N.m (26 lb-ft)
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) - Connect
Compressor Air Intake Turbocharger - Install - Compressor Air Intake Turbocharger Replacement - Right Side .
