Driver Door Trim Components

Courtesy of GENERAL MOTORS COMPANY

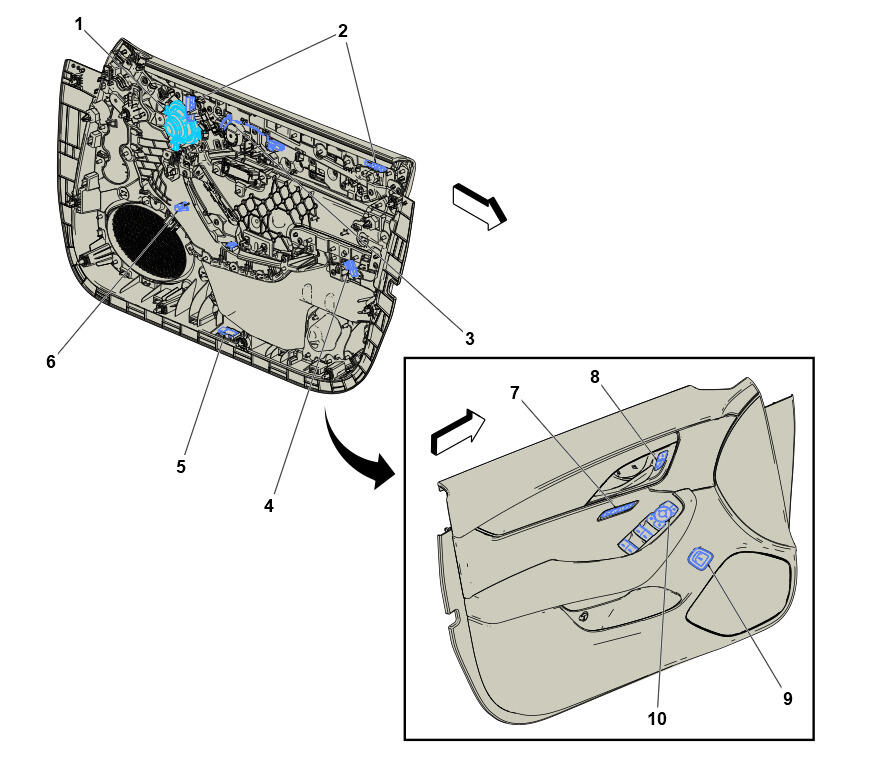

NOTE: Callouts in the following chart represent components shown in graphic above.

Components
1. P19AGU Radio Front Side Door Upper Speaker - Left P19AGU Radio Front Side Door Upper Speaker - Left (UQG) , or P19AGU Radio Front Side Door Upper Speaker - Left (UQP) .
2. E1D Front Side Door Light Conductor Lamp - Driver Trim Panel (C70) E1D Front Side Door Light Conductor Lamp - Driver Trim Panel X1 (C70) , or E1D Front Side Door Light Conductor Lamp - Driver Trim Panel X2 (C70) .
3. E63D Front Side Door Inside Handle Illumination Lamp - Left E63D Front Side Door Inside Handle Illumination Lamp - Left
4. E64D Front Side Door Pull Cup Illumination Lamp - Driver E64D Front Side Door Pull Cup Illumination Lamp - Driver
5. E8D Front Side Door Courtesy Lamp - Driver E8D Front Side Door Courtesy Lamp - Driver
6. E55D Front Side Door Courtesy Lamp - Left Map Pocket E55D Front Side Door Courtesy Lamp - Left Map Pocket
7. S47D Front Seat Adjuster Memory Switch - Driver S47D Front Seat Adjuster Memory Switch - Driver (A45)
8. S13D Door Lock Switch - Driver S13D Door Lock Switch - Driver
9. S58B Rear Compartment Lid Release Switch - Interior S58B Rear Compartment Lid Release Switch - Interior
10. S79D Front Side Door Window Control Switch - Driver S79D Front Side Door Window Control Switch - Driver X1 , or S79D Front Side Door Window Control Switch - Driver X2 .
