Headliner Components
NOTE:

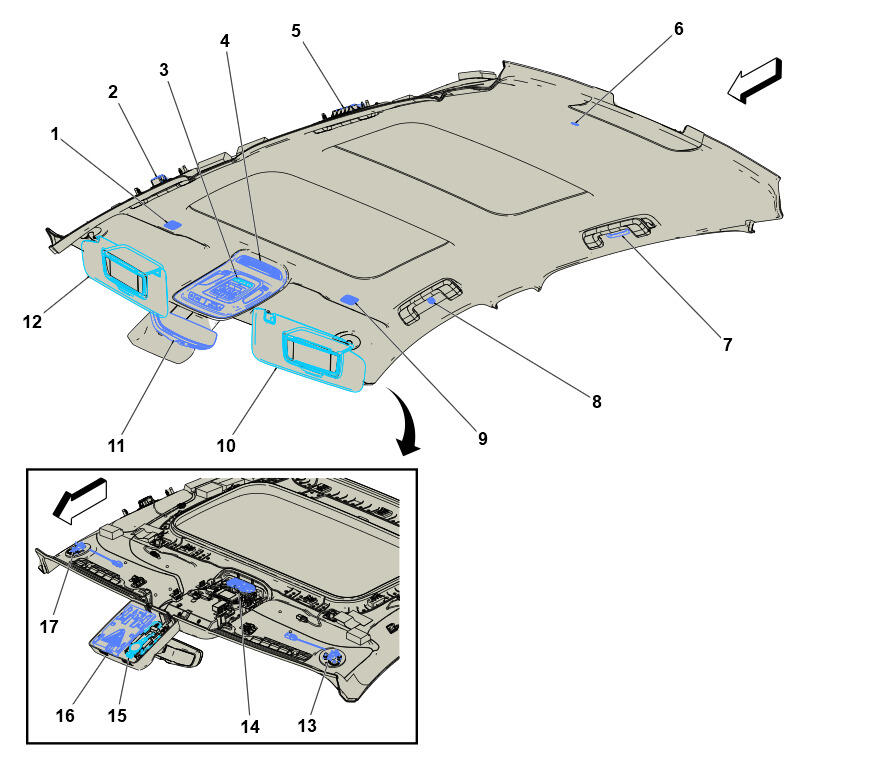

Callouts in the following chart represent components shown in graphic above.
Headliner Components
| Components |
|---|
| 1. B24LF Mobile Telephone Microphone - Left Front B24LF Mobile Telephone Microphone - Left Front |
| 2. B312LF Active Noise Cancellation Microphone - Left Front B312LF Active Noise Cancellation Microphone - Left Front |
| 3. S25 Garage Door Opener Transmitter (UG1) S25 Garage Door Opener Transmitter (UG1) |
| 4. A103 Roof Console A103 Roof Console X1 , or A103 Roof Console X2 . |
| 5. E37H Roof Rail Rear Seat Position Reading and Courtesy Lamp - Left E37H Roof Rail Rear Seat Position Reading and Courtesy Lamp - Left |
| 6. B312R Active Noise Cancellation Microphone - Rear B312R Active Noise Cancellation Microphone - Rear |
| 7. E37J Roof Rail Rear Seat Position Reading and Courtesy Lamp - Right E37J Roof Rail Rear Seat Position Reading and Courtesy Lamp - Right |
| 8. B312RF Active Noise Cancellation Microphone - Right Front B312RF Active Noise Cancellation Microphone - Right Front |
| 9. B24RF Mobile Telephone Microphone - Right Front B24RF Mobile Telephone Microphone - Right Front |
| 10. A3R Sunshade - Right |
| 11. A10 Inside Rearview Mirror A10 Inside Rearview Mirror X1 , or A10 Inside Rearview Mirror X2 (DRZ) |
| 12. A3L Sunshade - Left |
| 13. A3L Sunshade - Left |
| 14. B165 Content Theft Deterrent Sensor B165 Content Theft Deterrent Sensor (UTU) |
| 15. B160 Inside Air Moisture and Windshield Temperature Sensor (ASV) B160 Inside Air Moisture and Windshield Temperature Sensor (ASV) |
| 16. B174W Front View Camera - Windshield B174W Front View Camera - Windshield |
| 17. A3R Sunshade - Right |
