Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

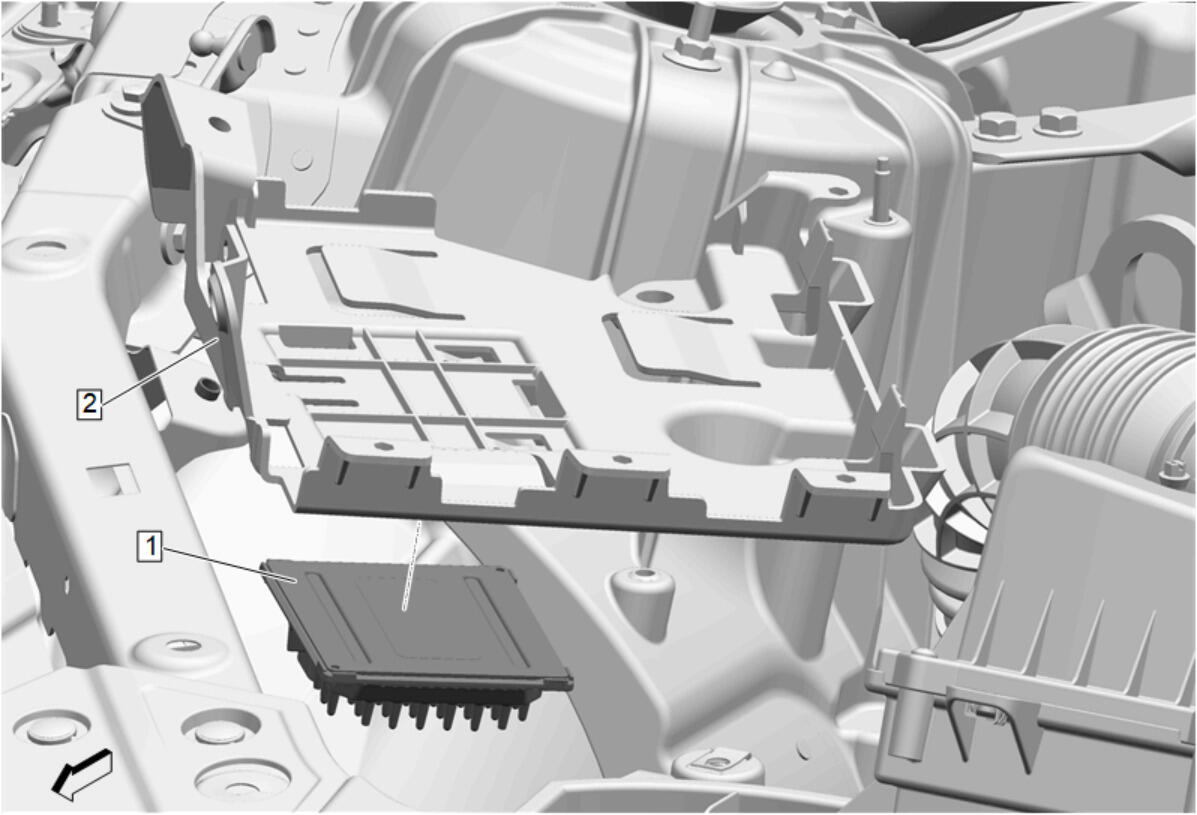

Install transmission control module (1) to the engine control module bracket (2).

Courtesy of GENERAL MOTORS COMPANY

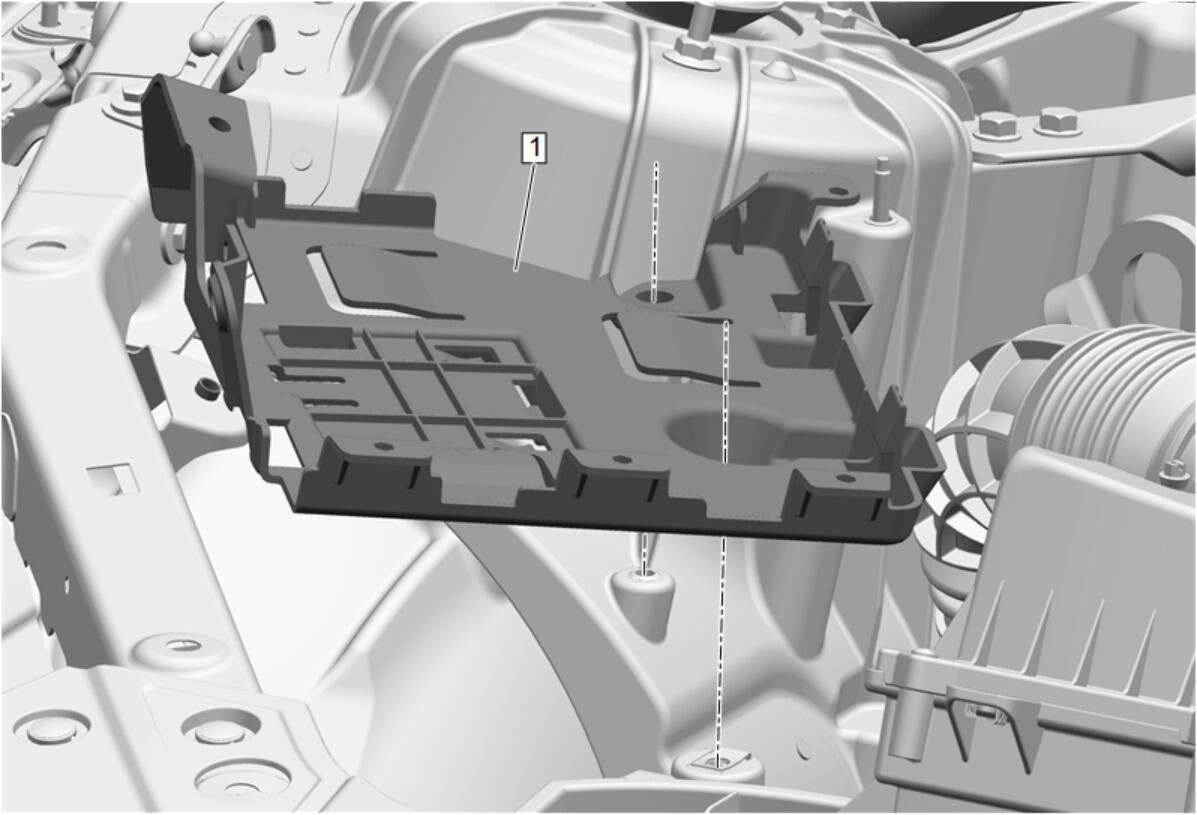

Engine Control Module Bracket (1) - Install

Courtesy of GENERAL MOTORS COMPANY

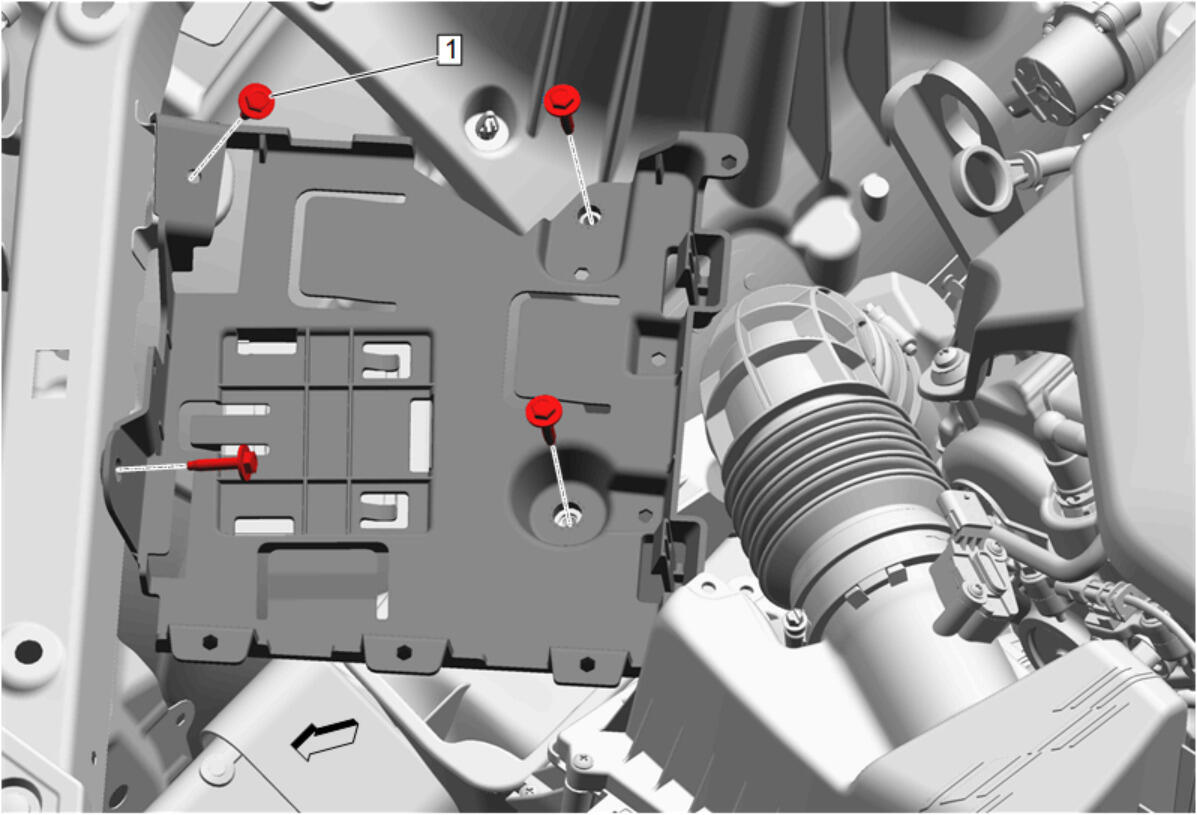

Engine Control Module Bracket Bolt (1) - Install and tighten [ 4x ] 9 N.m (80 lb/in)

Courtesy of GENERAL MOTORS COMPANY

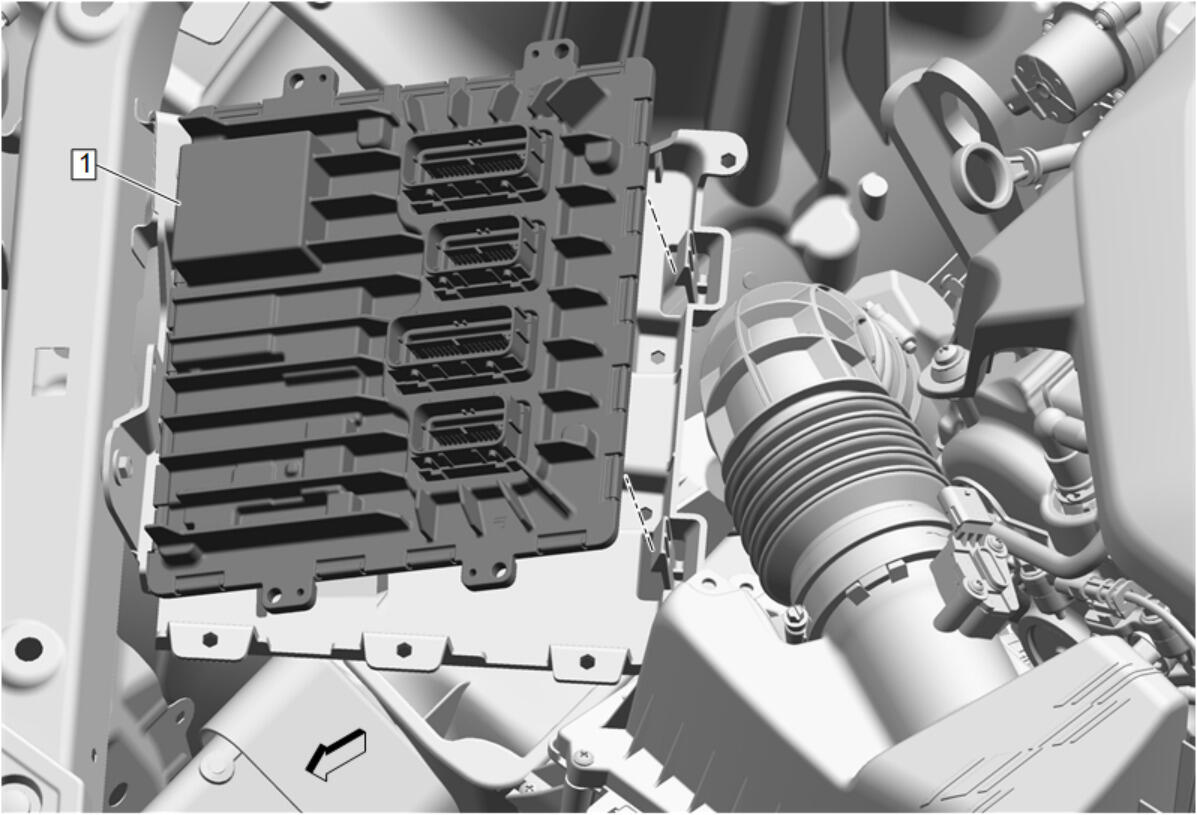

Engine Control Module (1) - Install - Engine Control Module Replacement
