Installation Procedure

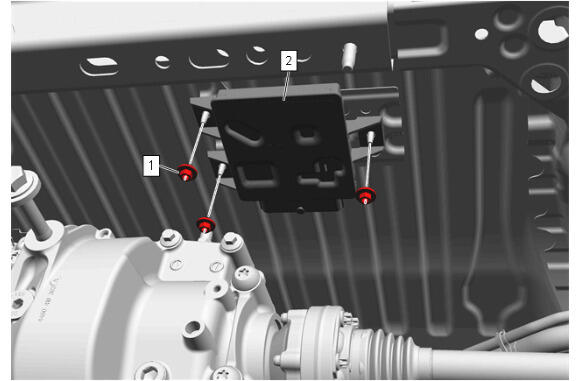

  1. GM5471863Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Fuel Pump Power Control Module Nut (1) - Install and tighten [ 3x ] 9 N.m (80 lb/in)

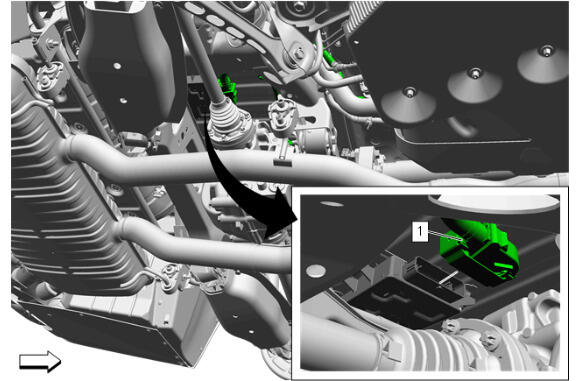

  3. GM5471859Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  4. If replacing, perform the fuel pump power control module configuration. K111 Fuel Pump Power Control Module Configuration
