Installation Procedure

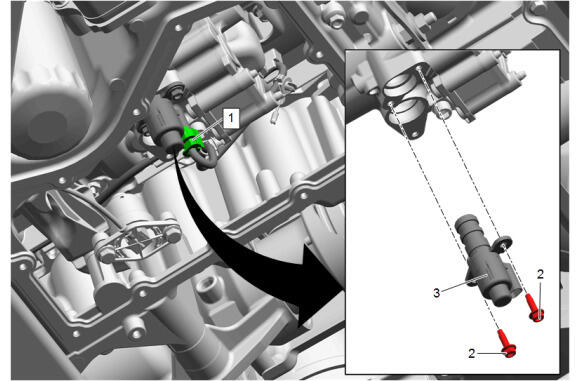

  1. GM5517409Courtesy of GENERAL MOTORS COMPANY

    Oil Pump Flow Control Valve (3) - Install

    2. CAUTION:

    Refer to Component Fastener Tightening Caution .

  2. Oil Pump Flow Control Valve Bolt (2) - Install and tighten [ 2x ] 8.5 N.m (75 lb/in)
  3. Electrical Connector (1) @ Oil Pump Flow Control Valve - Connect
  4. Oil Pump Suction Pipe - Install - Oil Pump Suction Pipe and Screen Assembly Replacement
  5. Lower Oil Pan - Install NEW - Lower Oil Pan Replacement
  6. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
