Driver Door Components
NOTE:

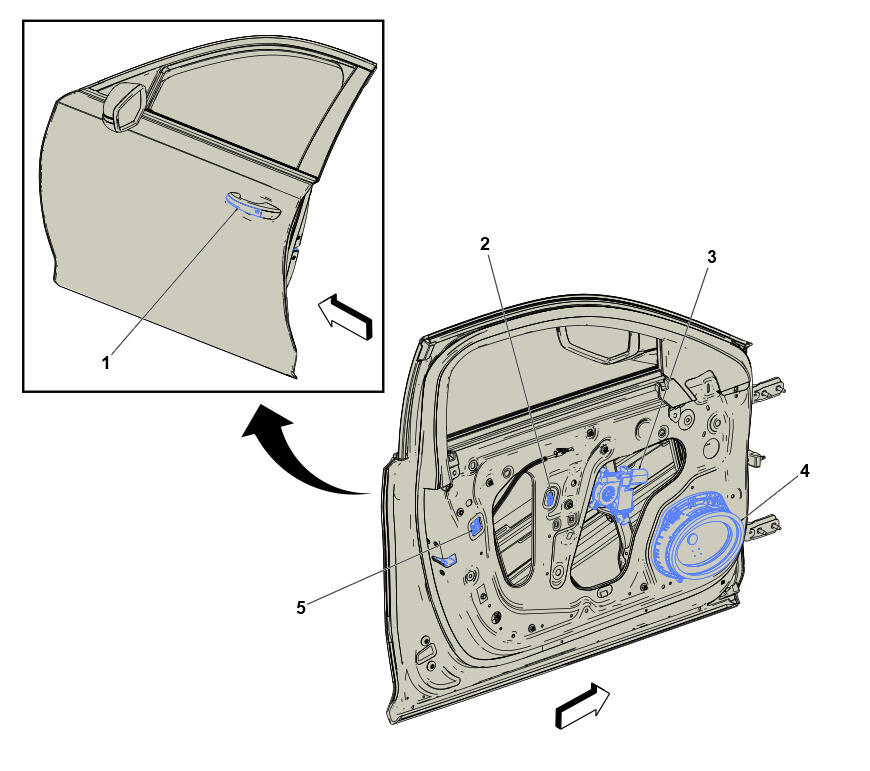

Callouts in the following chart represent components shown in graphic above.
Driver Door Components
| Components |
|---|
| 1. A24D Front Side Door Outside Handle - Left A24D Front Side Door Outside Handle - Left (-HD7) , or A24D Front Side Door Outside Handle - Left (HD7) . |
| 2. B63LF Airbag Side Impact Sensor - Left Front Door B63LF Airbag Side Impact Sensor - Left Front Door |
| 3. M74D Front Side Door Window Regulator Motor - Driver M74D Front Side Door Window Regulator Motor - Driver |
| 4. P19AG Radio Front Side Door Speaker - Left P19AG Radio Front Side Door Speaker - Left (UQG) , or P19AG Radio Front Side Door Speaker - Left (UQP) . |
| 5. A23D Front Side Door Latch - Driver A23D Front Side Door Latch - Driver |
