Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

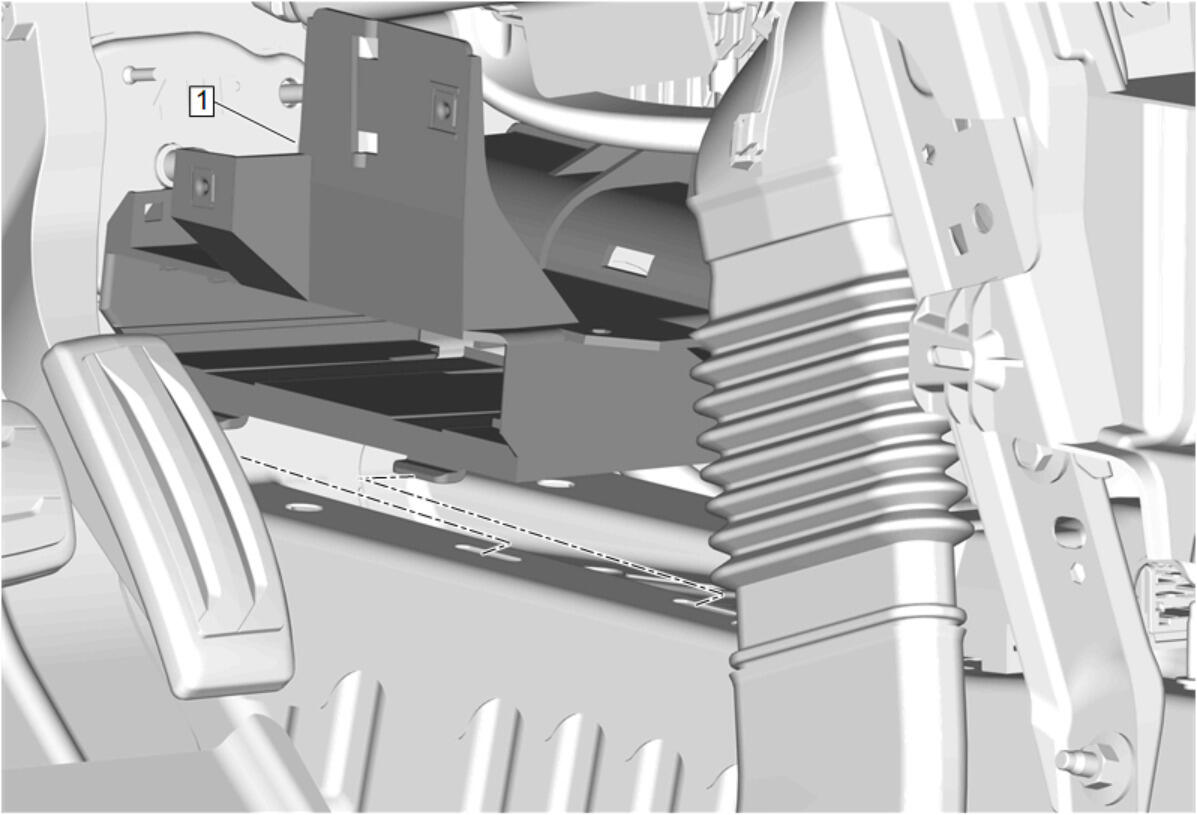

Body Control Module Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Electronic Transmission Range Selector Manual Park Release Cable Handle Retaining Bolt (1) - Install - Electronic Transmission Range Selector Manual Park Release Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel-Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

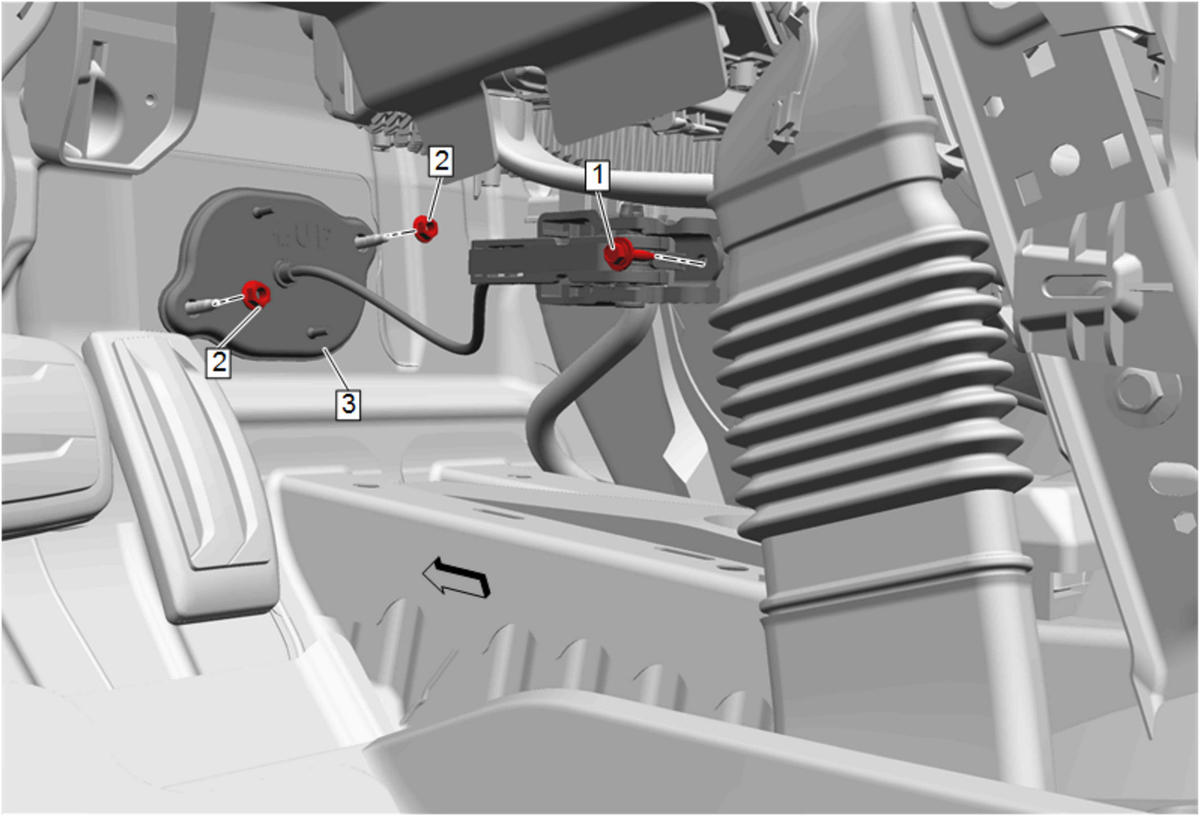

Body Control Module Bracket Nut (1) - Install and tighten 6 N.m (53 lb in)
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

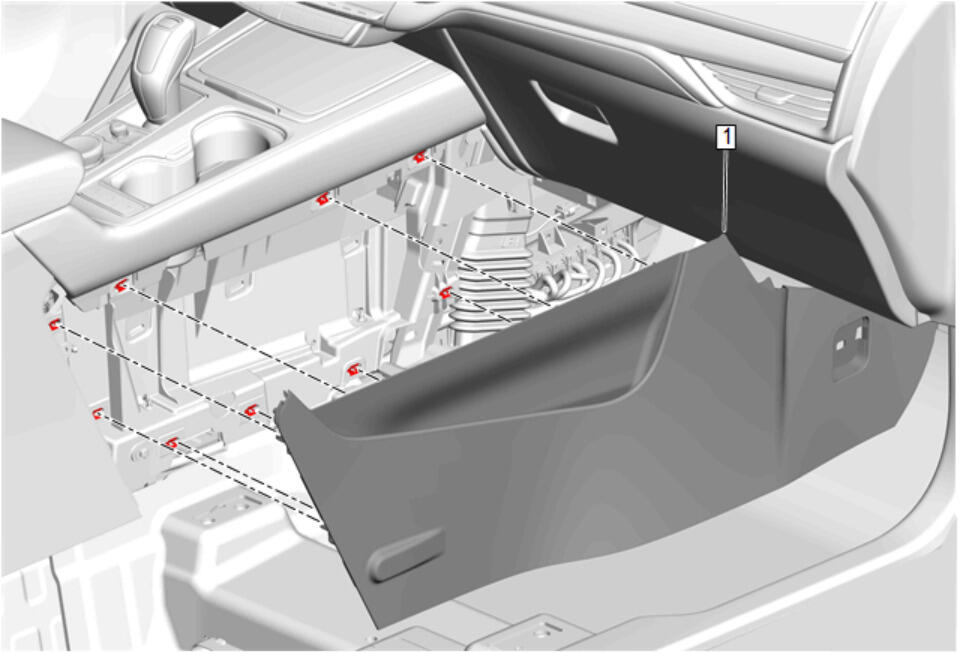

Front Floor Console Extension Panel-Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side
