Home › Cadillac › 2021 › XT5 Sport › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Virtual Key (BOP)

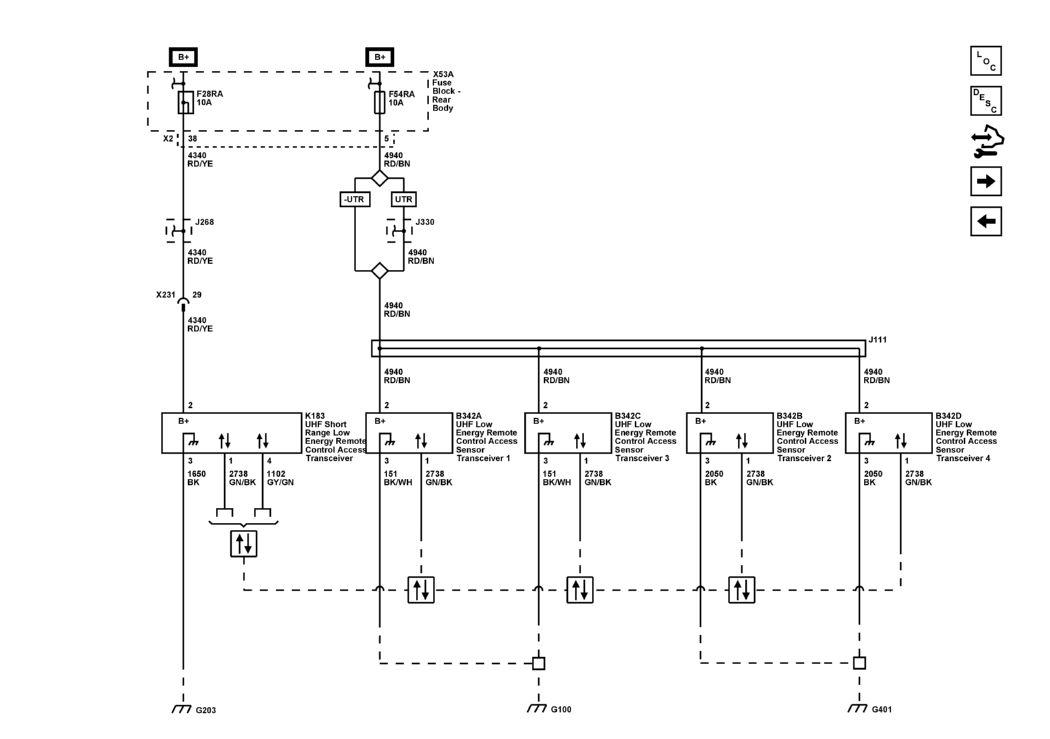

Keyless Entry - Virtual Key (BOP)

GM5462443Courtesy of GENERAL MOTORS COMPANY
