Removal Procedure
Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
Air Inlet Grille Panel (2) - Remove - Air Inlet Grille Panel Replacement
{If equipped} Front View Driver Information Camera Bracket (1) - Remove - Front View Driver Information Camera Bracket Replacement
- Inside Rearview Mirror - Remove - Inside Rearview Mirror Replacement
Inside Air Moisture and Windshield Temperature Sensor (1) - Remove - Inside Air Moisture and Windshield Temperature Sensor Replacement
- Cover to protect the following parts from broken glass:
- Upper Dash Pad
- The defroster outlets and A/C outlets
- The seats and carpeting
- {If equipped} Remove the lower windshield supports from the cowl panel.
- {If equipped} Using the appropriate tool, carefully cut around the lace, start in the center working from side to side of the window to access the urethane adhesive bead.
- NOTE:
Keep the cutting edge of the tool against the window.

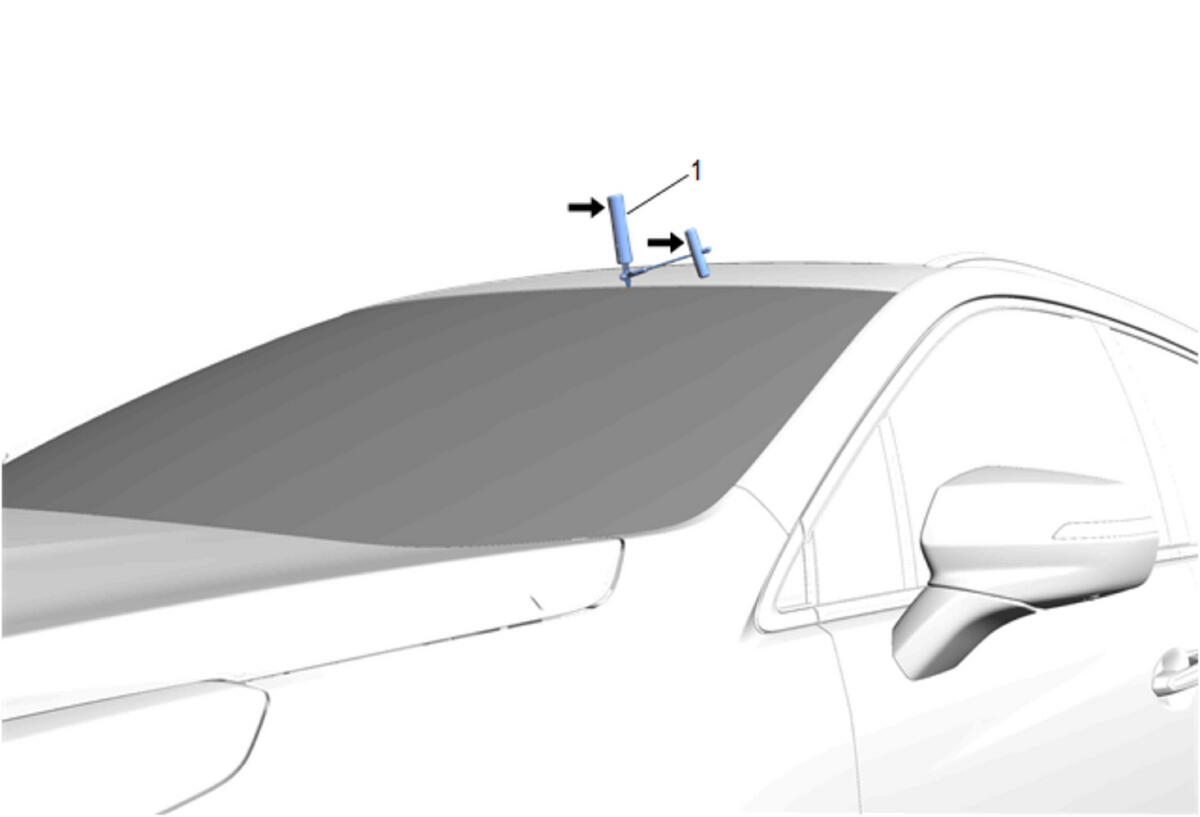

Use BO-24402-A Glass Sealant Remover (1) to remove the window.
- Leave a base of urethane on the pinchweld flange.
- The only suitable lubrication is clear water.
With the aid of an assistant, remove the windshield (2) and locating pin (1) from the vehicle.
- Transfer components as necessary.
If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.
When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.
