Removal Procedure

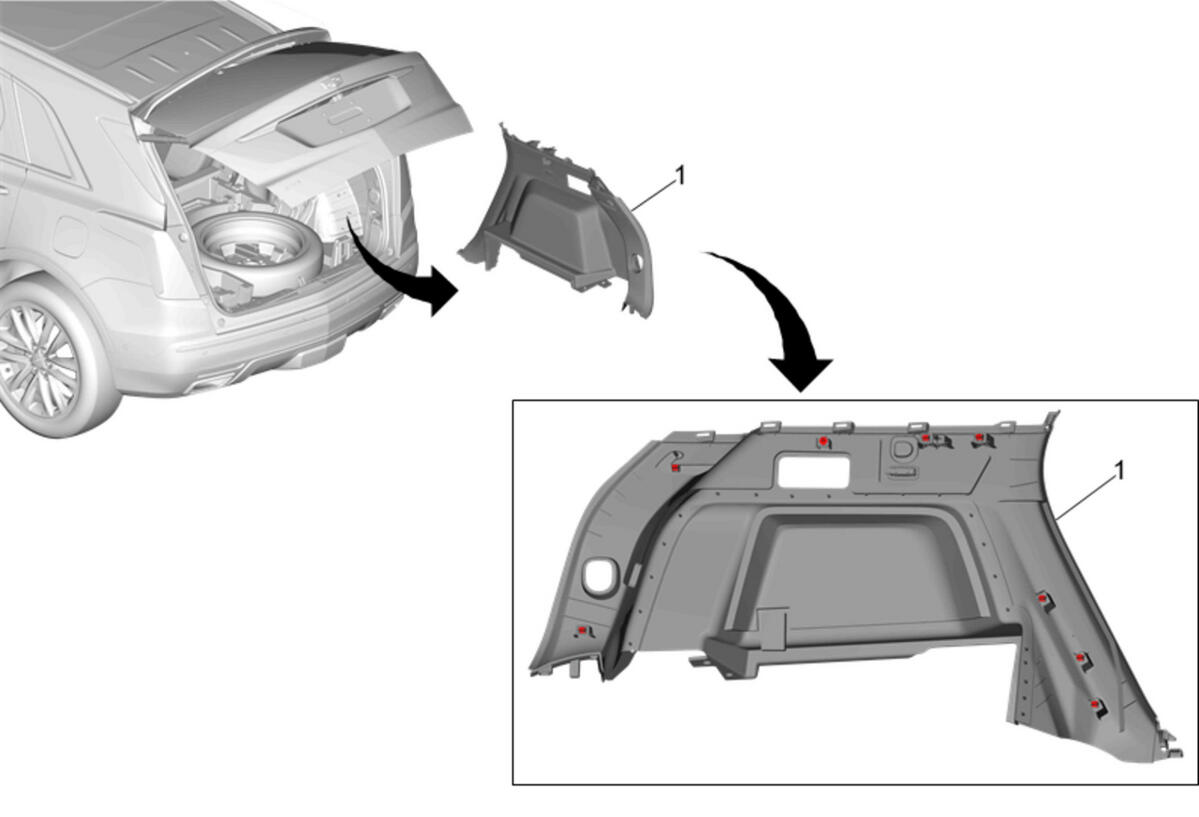

  1. GM4298054Courtesy of GENERAL MOTORS COMPANY

    Quarter Lower Rear Trim Panel Right Side (1) - Remove - Quarter Lower Rear Trim Panel Replacement (Right Side) , or Quarter Lower Rear Trim Panel Replacement (Left Side)

  2. Disconnect the trailer lamp control module electrical connector.

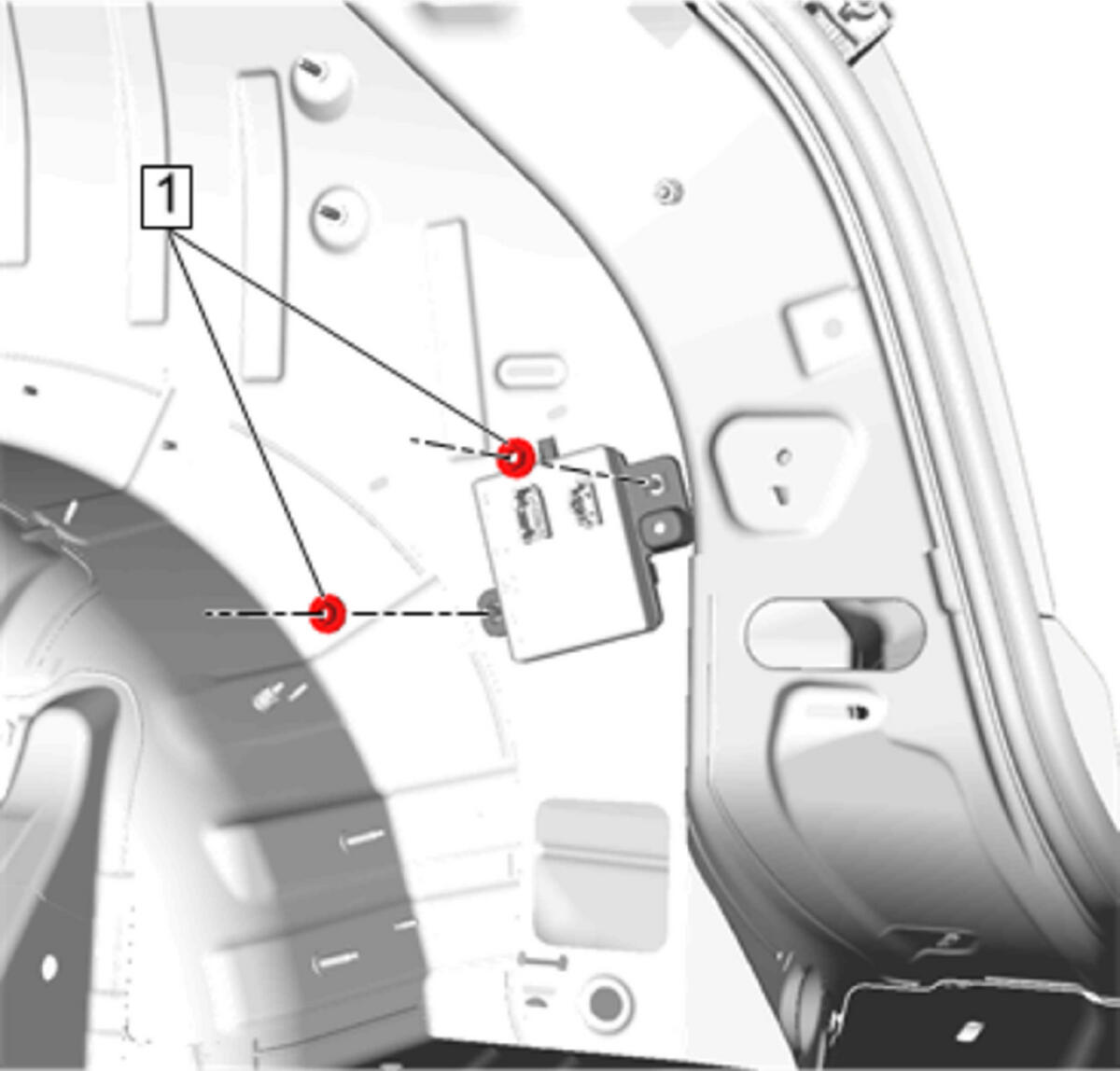

  3. GM4377354Courtesy of GENERAL MOTORS COMPANY

    Trailer Lamp Control Module Nut (1) - Remove [ 2x ]

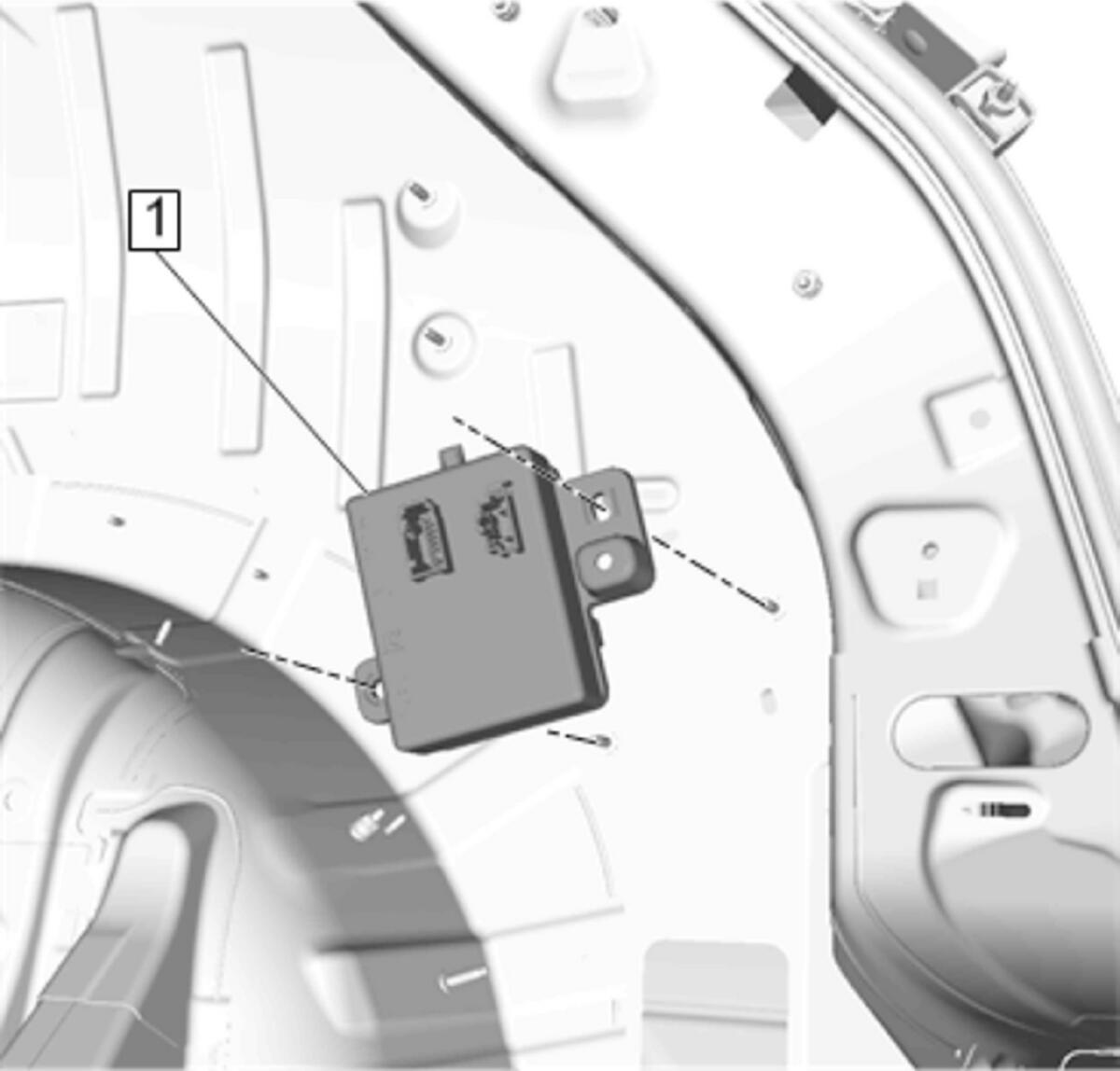

  4. GM4377362Courtesy of GENERAL MOTORS COMPANY

    Trailer Lamp Control Module (1) - Remove
