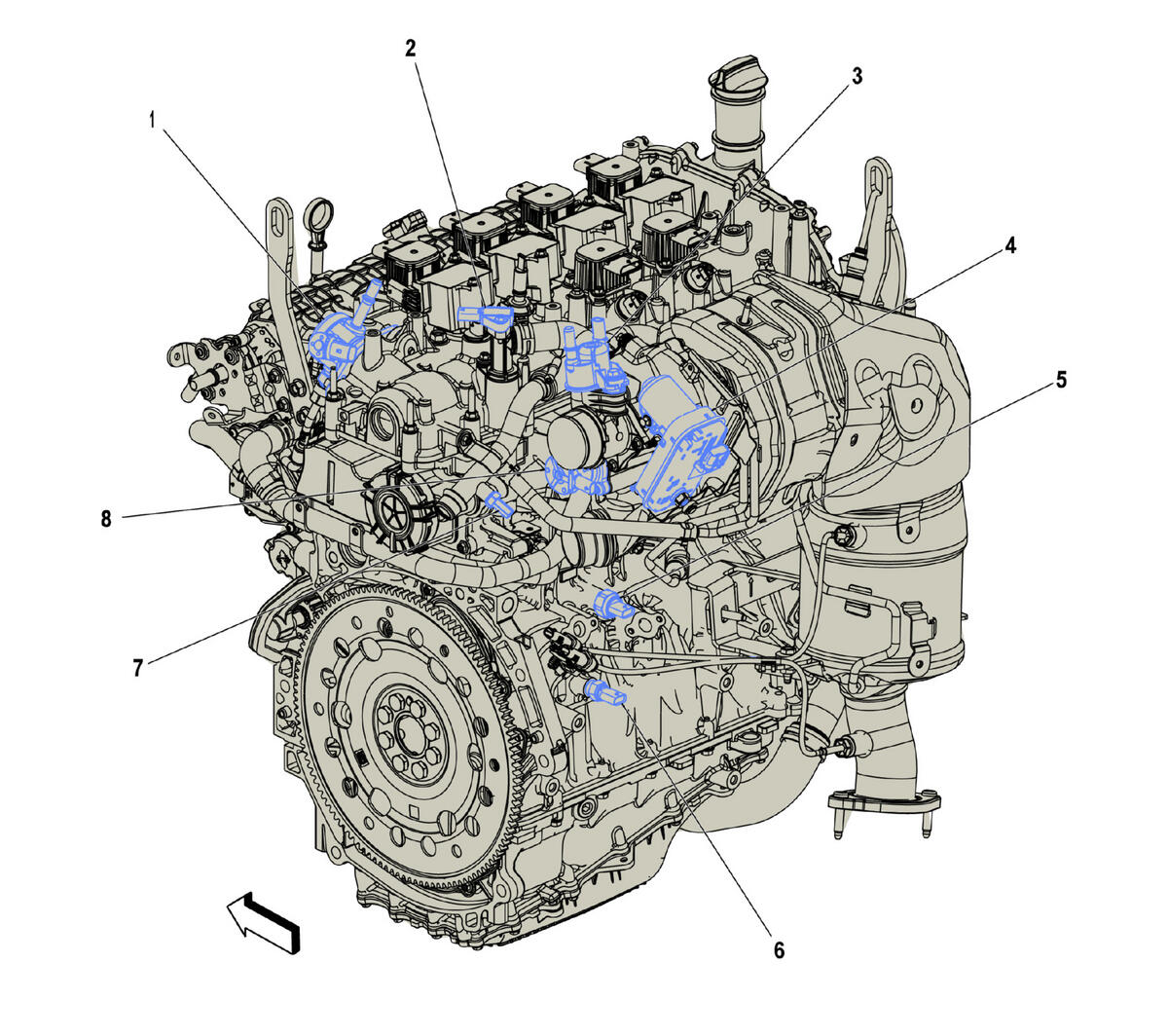

Right Rear of Engine Components (LSY)
Right Rear of Engine Components (LSY)
| Components |
|---|
| 1. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump |
| 2. B321 Crankcase Pressure Sensor B321 Crankcase Pressure Sensor (LSY) |
| 3. Q12 Evaporative Emission Purge Solenoid Valve (LSY/LGX) Q12 Evaporative Emission Purge Solenoid Valve (LSY) |
| 4. M128 Turbocharger Wastegate Actuator (LSY) M128 Turbocharger Wastegate Actuator (LSY) |
| 5. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor |
| 6. B36 Engine Oil Temperature Sensor B36 Engine Oil Temperature Sensor (LSY) |
| 7. B34C Engine Coolant Temperature Sensor 3 (LSY) B34C Engine Coolant Temperature Sensor 3 (LSY) |
| 8. Q40 Turbocharger Bypass Solenoid Valve (LSY) Q40 Turbocharger Bypass Solenoid Valve (LSY) |
