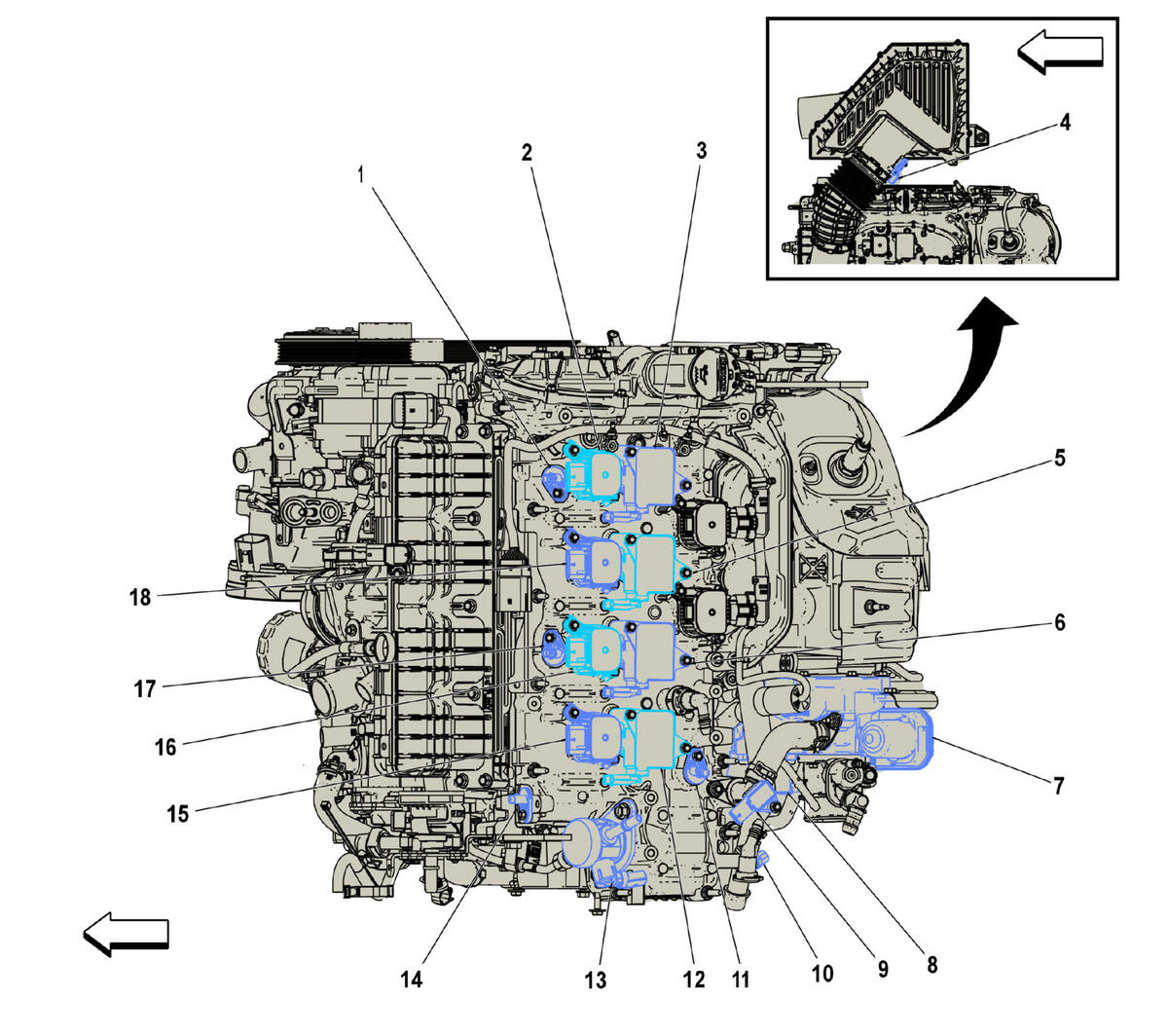

Top of Engine Components (LSY)
Top of Engine Components (LSY)
| Components |
|---|
| 1. B338A Intake Camshaft Profile Sleeve Position Sensor 1 (LSY) B338A Intake Camshaft Profile Sleeve Position Sensor 1 (LSY) |
| 2. M129A Intake Camshaft Profile Actuator 1 (LSY) M129A Intake Camshaft Profile Actuator 1 (LSY) |
| 3. T8A Ignition Coil 1 (LSY/LGX) T8A Ignition Coil 1 (LSY) |
| 4. B75C Multifunction Intake Air Sensor (LSY/LGX) B75C Multifunction Intake Air Sensor (LSY) |
| 5. T8B Ignition Coil 2 (LSY/LGX) T8B Ignition Coil 2 (LSY) |
| 6. T8C Ignition Coil 3 (LSY/LGX) T8C Ignition Coil 3 (LSY) |
| 7. M128 Turbocharger Wastegate Actuator (LSY) M128 Turbocharger Wastegate Actuator (LSY) |
| 8. Q40 Turbocharger Bypass Solenoid Valve (LSY) Q40 Turbocharger Bypass Solenoid Valve (LSY) |
| 9. B321 Crankcase Pressure Sensor B321 Crankcase Pressure Sensor (LSY) |
| 10. B34C Engine Coolant Temperature Sensor 3 (LSY) B34C Engine Coolant Temperature Sensor 3 (LSY) |
| 11. B23E Camshaft Position Sensor - Exhaust (LSY) B23E Camshaft Position Sensor - Exhaust (LSY) |
| 12. T8D Ignition Coil 4 (LSY/LGX) T8D Ignition Coil 4 (LSY) |
| 13. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump |
| 14. B23F Camshaft Position Sensor - Intake (LSY) B23F Camshaft Position Sensor - Intake (LSY) |
| 15. M129D Intake Camshaft Profile Actuator 4 (LSY) M129D Intake Camshaft Profile Actuator 4 (LSY) |
| 16. M129C Intake Camshaft Profile Actuator 3 (LSY) M129C Intake Camshaft Profile Actuator 3 (LSY) |
| 17. B338B Intake Camshaft Profile Sleeve Position Sensor 2 (LSY) B338B Intake Camshaft Profile Sleeve Position Sensor 2 (LSY) |
| 18. M129B Intake Camshaft Profile Actuator 2 (LSY) M129B Intake Camshaft Profile Actuator 2 (LSY) |
