Rear Gate Module Replacement
WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

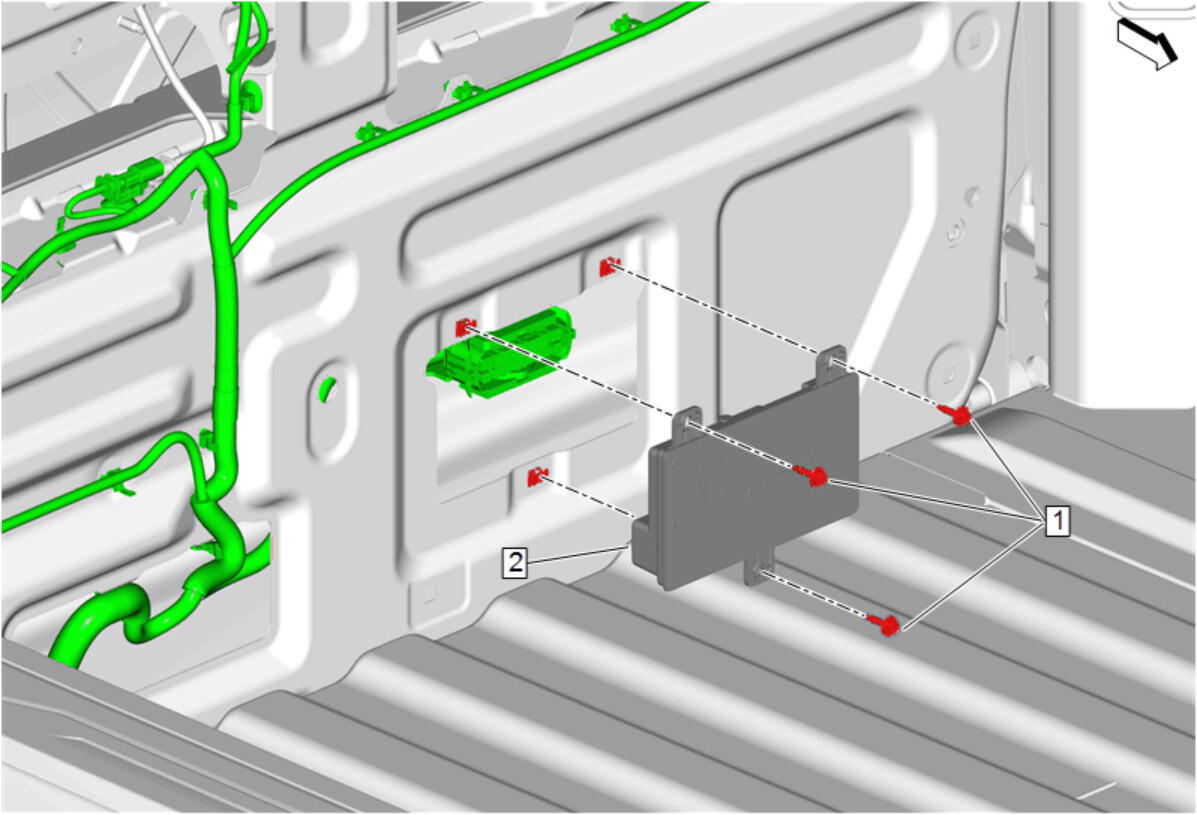

| Callout | Component Name |
|---|---|
| Preliminary Procedure Pickup Box Endgate Access Hole Cover Panel Replacement (With Step)Pickup Box Endgate Access Hole Cover Panel Replacement (Without Step) |
|
| 1 | Latch Control Module Bracket Bolt [ 3x ]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Accessory and Liftgate Control Module Procedure
|
