Wireless Charging System Module Bracket Replacement
WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

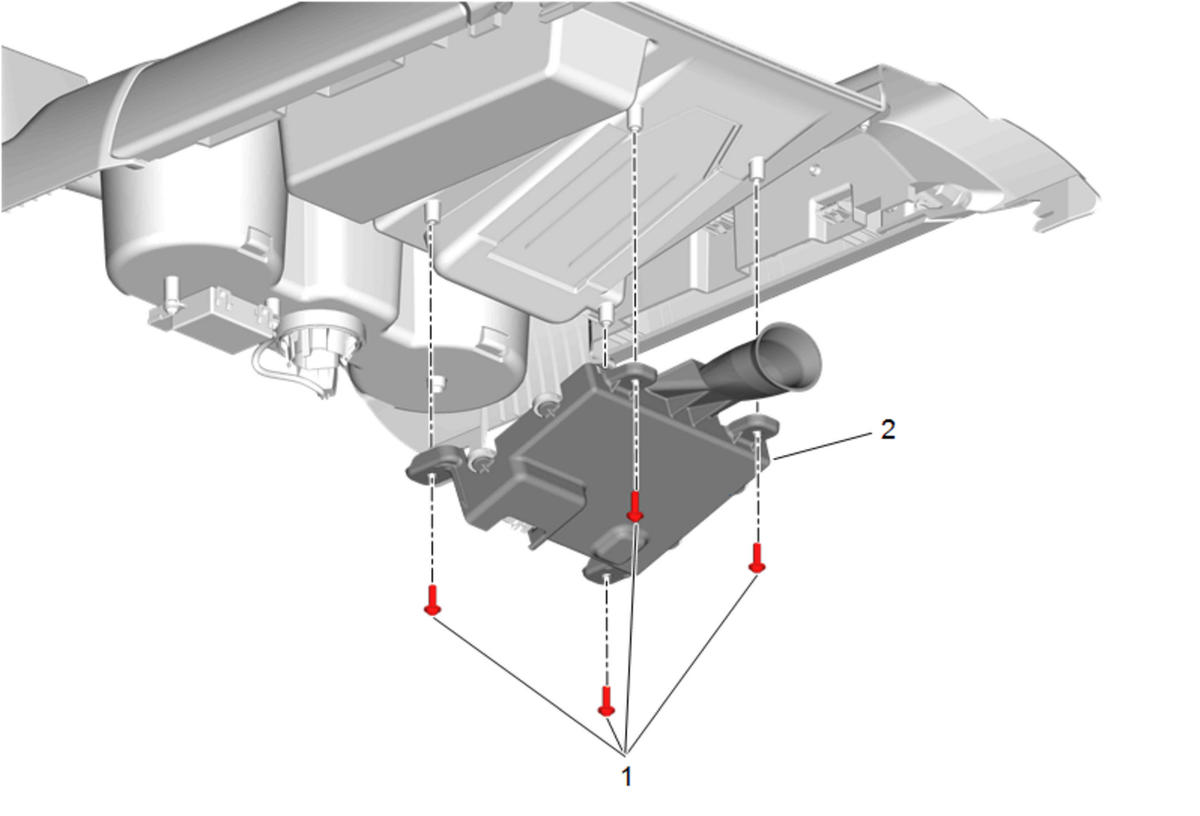

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Cup Holder Trim Plate Replacement |
|
| 1 | Wireless Charging System Module Bracket Bolt [4x]
CAUTION:
Tighten 1.3N.m (12 lb in) |
| 2 | Wireless Charging System Module Bracket Procedure Transfer components as necessary. |
