Video Processing Module Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

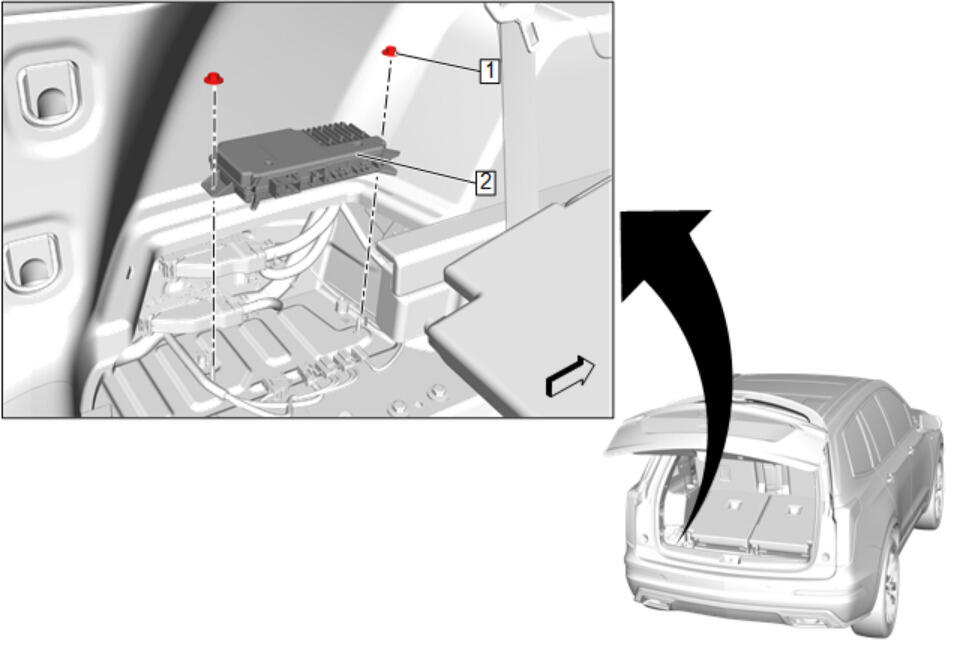

Callout	Component Name
Preliminary Procedures Rear Compartment Floor Stowage Side Rear Compartment Replacement Reposition the wiring harness.
1	Video Processing Module Nut [ 2x ] CAUTION: Refer to Fastener Caution . tighten 9 N.m (80 lb in)
2	Video Processing Module Procedure Disconnect all electrical Connector s. After installation, program the module. Control Module References

Callout

Component Name

Preliminary Procedures

Rear Compartment Floor Stowage Side Rear Compartment Replacement
Reposition the wiring harness.

Video Processing Module Nut [ 2x ]

CAUTION:

Refer to Fastener Caution .

tighten
9 N.m (80 lb in)

Video Processing Module

Procedure

Disconnect all electrical Connector s.
After installation, program the module. Control Module References
