Headlamp Control Module Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

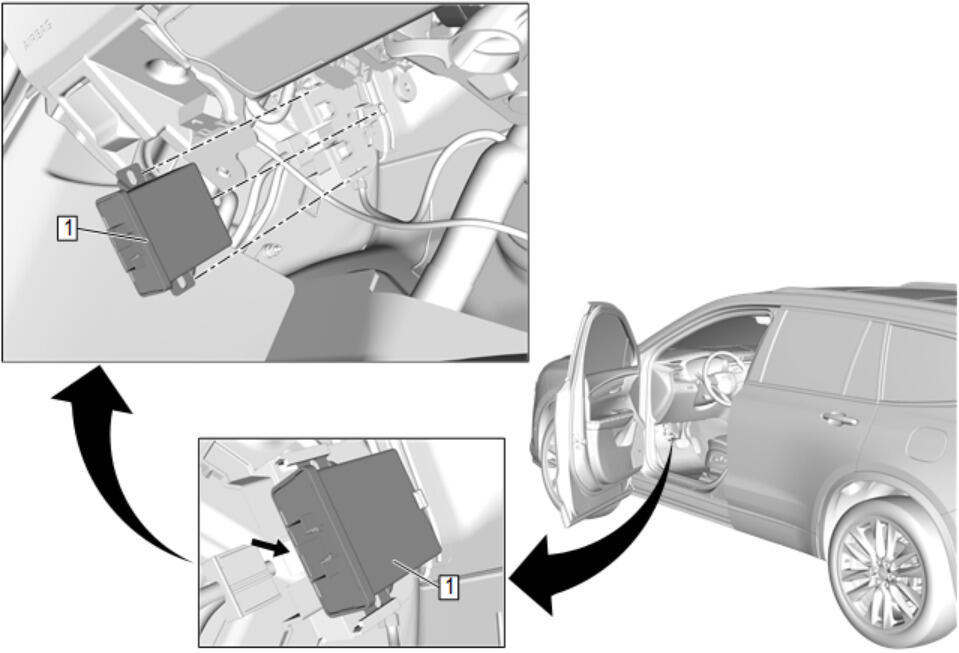

Callout	Component Name
Preliminary Procedure Instrument Panel Insulator Replacement - Left Side
1	Headlamp Control Module Procedure Disconnect the electrical connector. Release the retaining tab. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Instrument Panel Insulator Replacement - Left Side

Headlamp Control Module

Procedure

Disconnect the electrical connector.
Release the retaining tab.
Perform the necessary programming and setup procedure:Control Module References
