Windshield Washer Solvent Container Level Sensor Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Removal and Installation Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent when the level sensor and seal are removed.

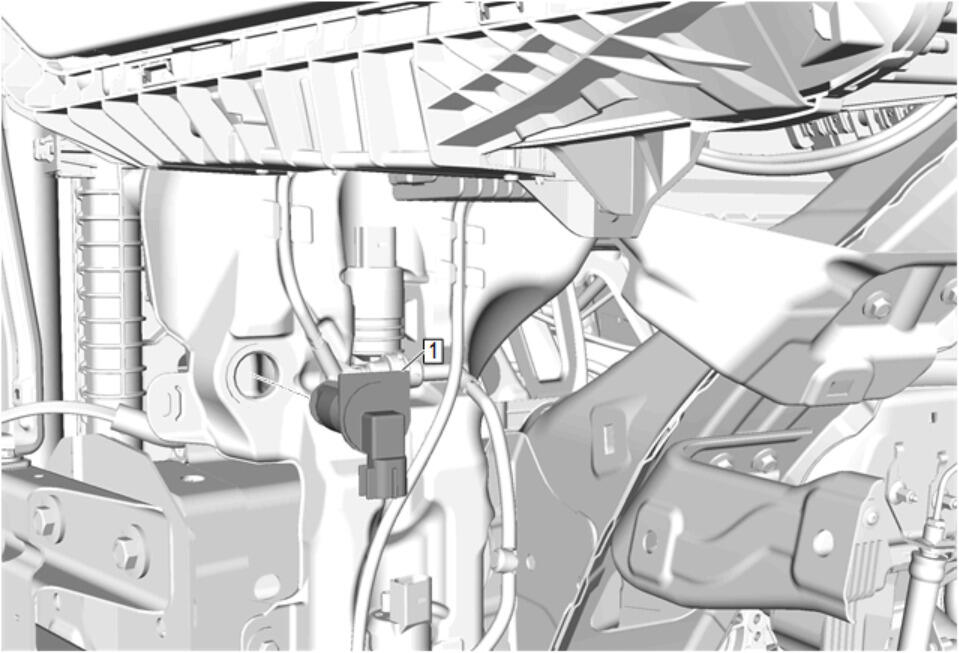

1	Windshield Washer Solvent Container Level Sensor NOTE: Install a NEW grommet. Do NOT reuse old grommet. Procedure Disconnect the electrical connector. Using the appropriate tools, place under each side of the windshield washer solvent container level sensor, twist and lift in opposite directions to disengage the level sensor from the windshield washer solvent container and grommet.

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Removal and Installation
Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent when the level sensor and seal are removed.

Windshield Washer Solvent Container Level Sensor

NOTE:

Install a NEW grommet. Do NOT reuse old grommet.

Procedure

Disconnect the electrical connector.
Using the appropriate tools, place under each side of the windshield washer solvent container level sensor, twist and lift in opposite directions to disengage the level sensor from the windshield washer solvent container and grommet.
