Front View Camera Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal. Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement

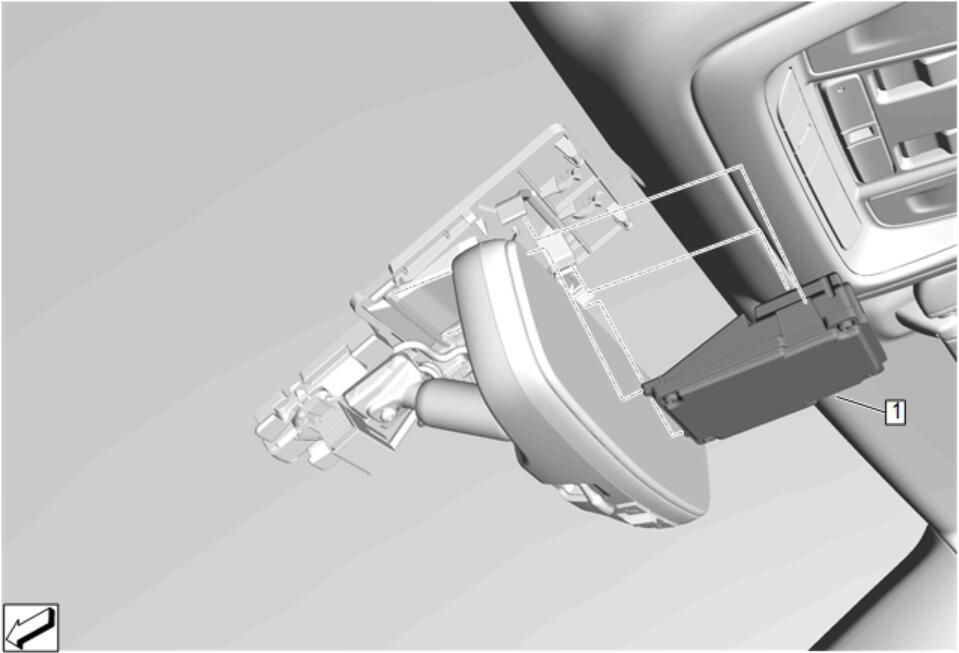

1	Front View Camera Procedure Disconnect the electrical connector. Release the retaining tabs. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

WARNING:

While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal.

Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement

Front View Camera

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
Perform the necessary programming and setup procedure:Control Module References
