Short Range Radar Sensor Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

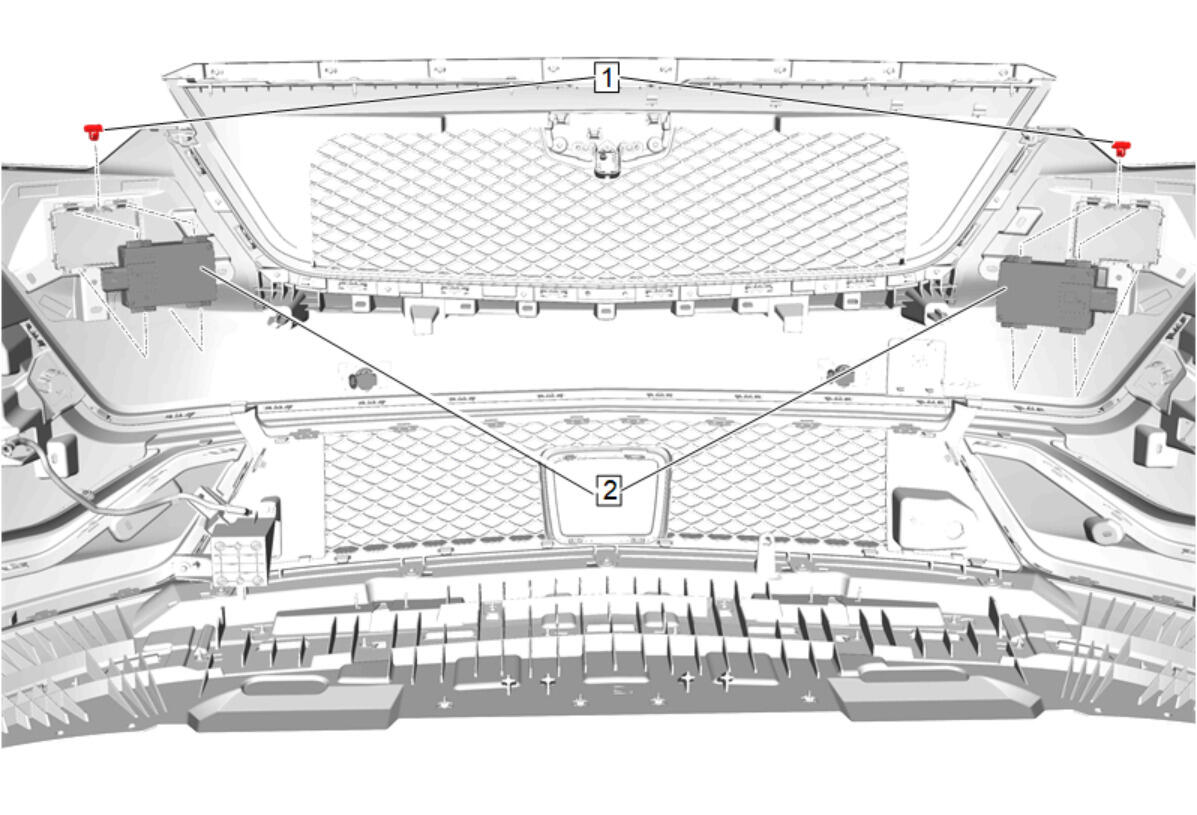

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Removal and Installation
1	Short Range Radar Sensor Clip [ 2x ]
2	Short Range Radar Sensor [ 2x ] Procedure Disconnect the electrical connector. Release the tab retainers and remove. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Removal and Installation

Short Range Radar Sensor Clip [ 2x ]

Short Range Radar Sensor [ 2x ]

Procedure

Disconnect the electrical connector.
Release the tab retainers and remove.
Perform the necessary programming and setup procedure:Control Module References
