Cruise Control Switch Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

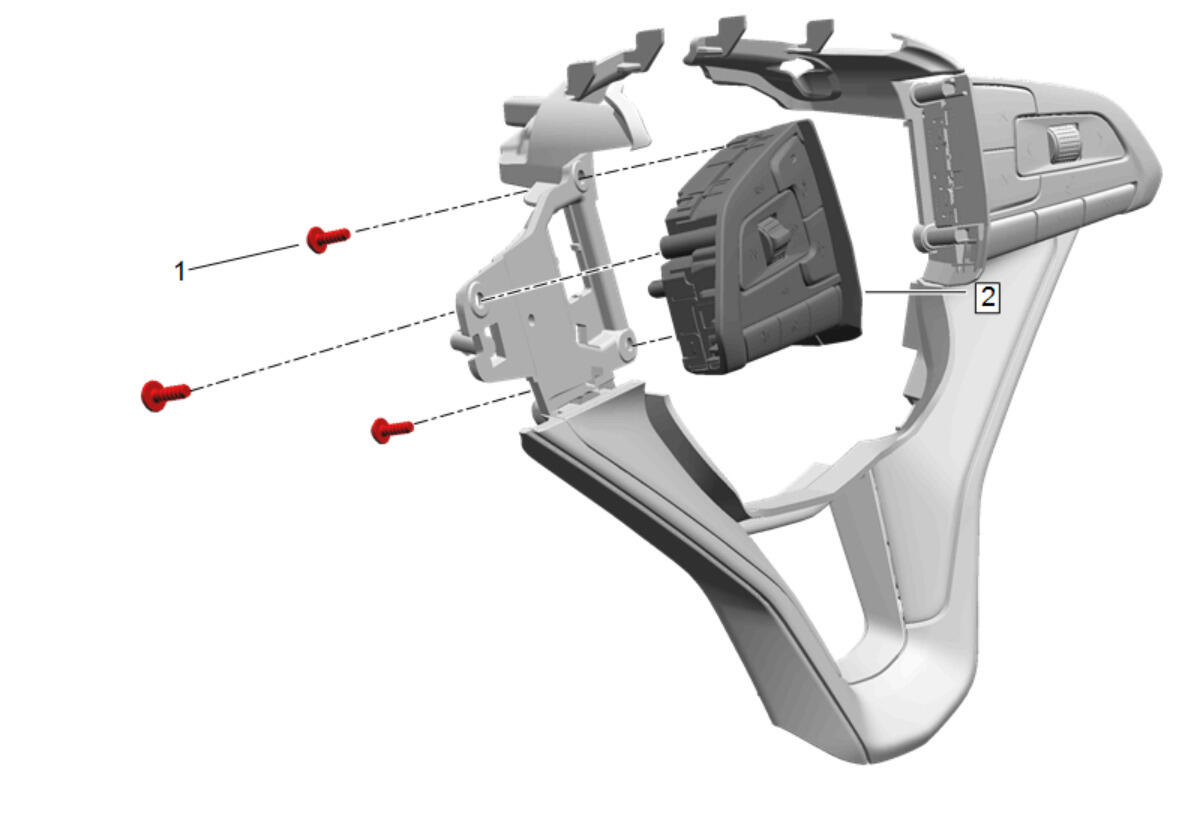

Callout	Component Name
Preliminary Procedures Steering Wheel Airbag Replacement Steering Wheel Replacement Steering Wheel Trim Spoke Cover Applique Replacement
1	Steering Wheel Screw [3x] CAUTION: Refer to Fastener Caution . tighten 0.80N.m (7 lb in)
2	Cruise Control Switch Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Steering Wheel Airbag Replacement
Steering Wheel Replacement
Steering Wheel Trim Spoke Cover Applique Replacement

Steering Wheel Screw [3x]

CAUTION:

Refer to Fastener Caution .

tighten
0.80N.m (7 lb in)

Cruise Control Switch
Procedure
Disconnect the electrical connector.
