Front Differential Carrier Mounting
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

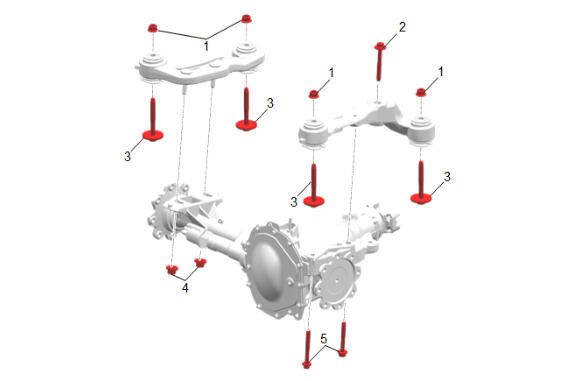

Callouts in the following chart represent components shown in graphic above.
Front Differential Carrier Mounting
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Differential Carrier Bracket Nut [4x] | - | - | - | Front Differential Carrier Bracket Replacement - Right Side Front Differential Carrier Bracket Replacement - Left Side |
| 2 | Front Differential Carrier Bolt | - | - | 110 N.m (81 lb ft) | Front Axle Replacement |
| 3 | Front Differential Carrier Bracket Bolt [4x] | - | - | 160 N.m (118 lb ft) | Front Differential Carrier Bracket Replacement - Right Side Front Differential Carrier Bracket Replacement - Left Side |
| 4 | Front Differential Carrier Bracket Nut [2x] | - | - | 100 N.m (74 lb ft) | Front Axle Replacement |
| 5 | Front Differential Carrier Bolt [2x] | - | - | 110 N.m (81 lb ft) | Front Axle Replacement |
