Removal Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5224158Courtesy of GENERAL MOTORS COMPANY

    Underbody Splash Shield (2) - Remove - Underbody Splash Shield Replacement

  2. GM5225386Courtesy of GENERAL MOTORS COMPANY
  3. {If equipped} Underbody Skid Shield Bolt (2) - Remove [2x]
  4. GM5225390Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Underbody Skid Shield (1) - Remove

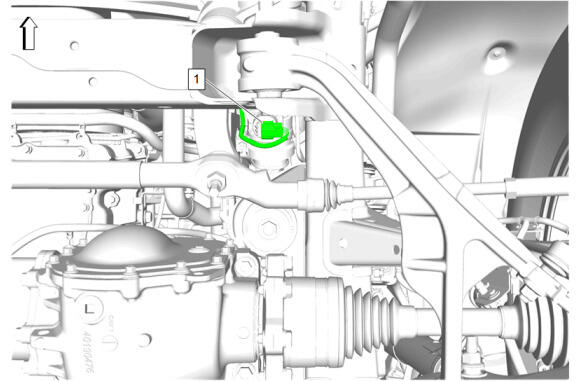

  5. GM5920550Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (1)

  6. GM5294838Courtesy of GENERAL MOTORS COMPANY

    Electronic Power Steering Motor Control Module Bracket Bolt (1) - Remove

  7. Disconnect the electrical connector. (2)
  8. Remove the power steering control module wiring harness (3).
