Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts in the following chart represent components shown in graphic above.

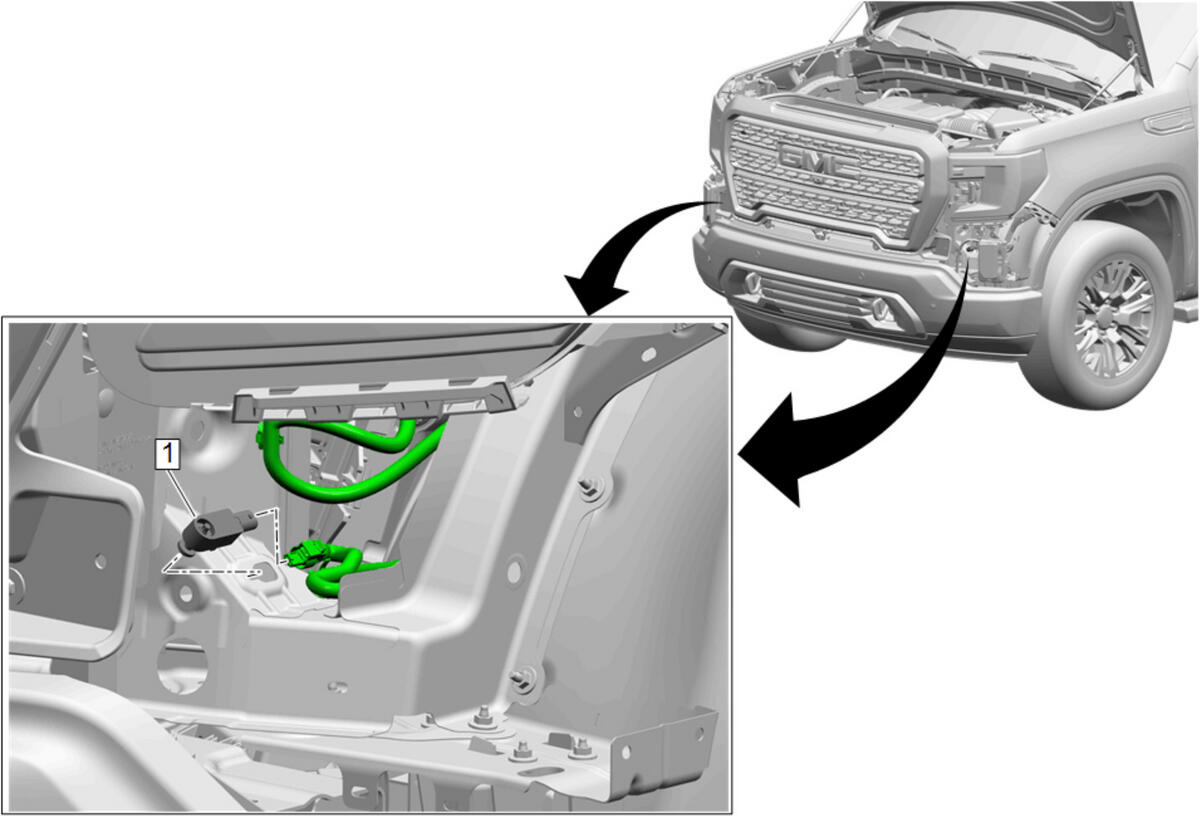

Airbag Front End Discriminating Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Airbag Front End Discriminating Sensor | - | - | 7.5 N.m (66 lb in) | Airbag Front End Discriminating Sensor Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

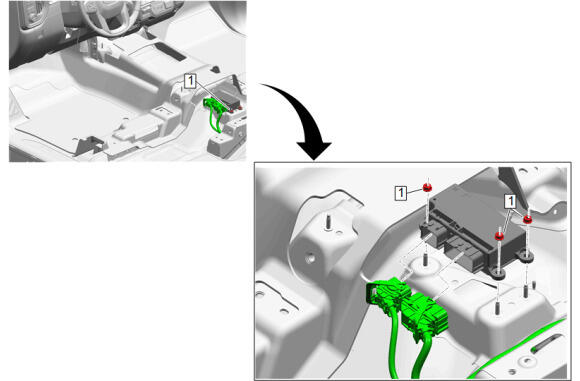

Airbag Sensing and Diagnostic Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Airbag Sensing and Diagnostic Module Nut [3x] | - | - | 9 N.m (80 lb in) | Restraints Control Module Replacement (with Front Floor Console) Restraints Control Module Replacement (without Front Floor Console) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

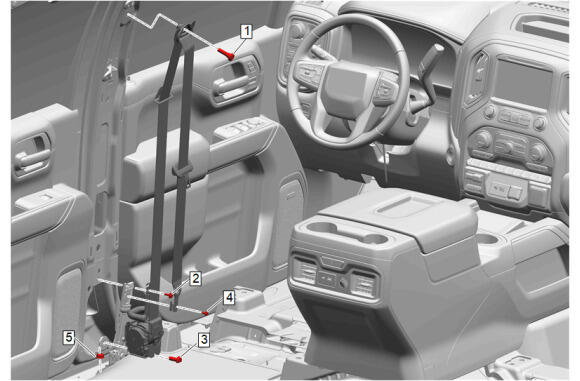

Front Seat Belt Retractor and Tensioner
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Belt Retractor D Ring Bolt | - | Yes | 45 N.m (33 lb ft) | Front Seat Belt Retractor Replacement (without AGL) Front Seat Belt Retractor Replacement (with AGL (MY22 ONLY)) |
| 2 | Front Seat Belt Retractor Bolt -Upper | - | - | 9 N.m (80 lb in) | Front Seat Belt Retractor Replacement (without AGL) Front Seat Belt Retractor Replacement (with AGL (MY22 ONLY)) |
| 3 | Front Seat Belt Retractor Bolt -Lower | - | - | 45 N.m (33 lb ft) | Front Seat Belt Retractor Replacement (without AGL) Front Seat Belt Retractor Replacement (with AGL (MY22 ONLY)) |
| 4 | Front Seat Belt Anchor Plate Tensioner Bolt | - | Yes | 9 N.m (80 lb in) | Front Seat Belt Anchor Plate Tensioner Replacement |
| 5 | Front Seat Belt Nut | - | - | 45 N.m (33 lb ft) | Front Seat Belt Anchor Plate Tensioner Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

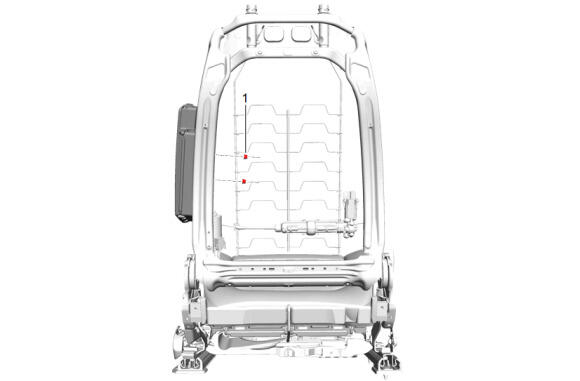

Front Seat Outboard Seat Back Airbag
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Side Airbag Nut [2x] | - | - | 3.75 N.m (33 lb in) | Front Seat Back Cover and Pad Removal and Installation (Power)Front Seat Back Cover and Pad Removal and Installation (Manual) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

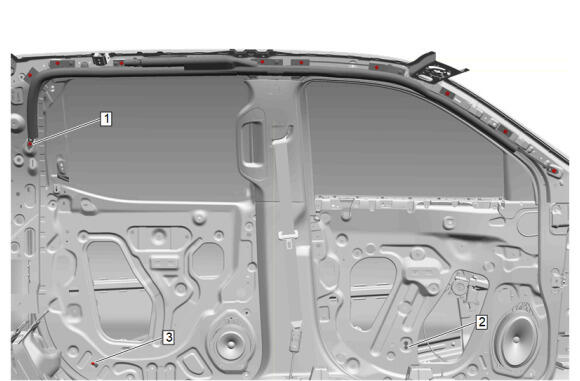

Roof Rail Airbag and Side Impact Sensors
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Roof Rail Airbag Bolt [10x] | - | - | 9 N.m (80 lb in) | Front and Rear Row Roof Rail Airbag Replacement |
| 2 | Airbag Side Impact Sensor | - | - | 7.5 N.m (66 lb in) | Airbag Side Impact Sensor Replacement |
| 3 | Airbag Side Impact Rear Sensor | - | - | 7.5 N.m (66 lb in) | Airbag Side Impact Rear Sensor Replacement (Crew Cab) Airbag Side Impact Rear Sensor Replacement (Double Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

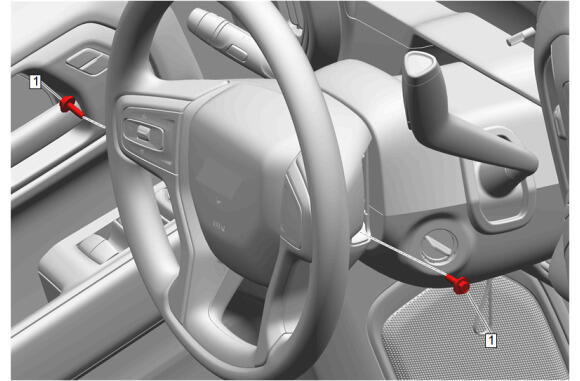

Steering Wheel Airbag
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Wheel Airbag Bolt [2x] | - | - | 9 N.m (80 lb in) | Steering Wheel Airbag Replacement |
