Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts in the following chart represent components shown in graphic above.

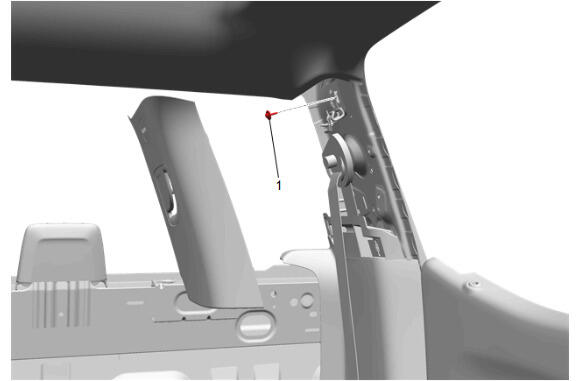

Body Side Rear Window Garnish Molding
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Quarter Window Trim Finish Panel Bolt | - | - | 2.5 N.m (22 lb in) | Body Side Rear Window Garnish Molding Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

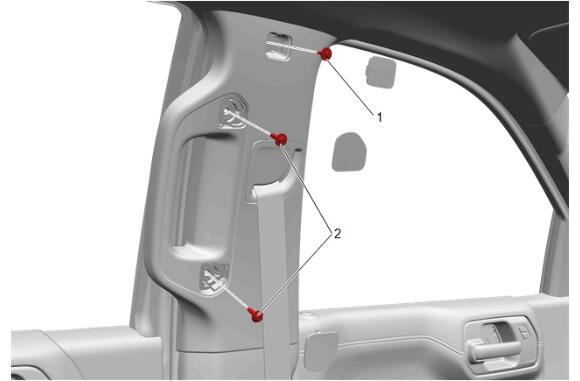

Center Pillar Upper Trim Panel
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Center Pillar Upper Garnish Molding Bolt | - | - | 2.5 N.m (22 lb in) | Center Pillar Upper Trim Panel Replacement (without AGL) , or Center Pillar Upper Trim Panel Replacement (with AGL (MY22 ONLY)) |
| 2 | Center Pillar Assist Handle Bolt [2x] | - | - | 9 N.m (80 lb in) | Center Pillar Upper Trim Panel Replacement (without AGL) , or Center Pillar Upper Trim Panel Replacement (with AGL (MY22 ONLY)) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Coat Hook
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Coat Hook Bolt | - | - | 6 N.m (53 lb in) | Coat Hook Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

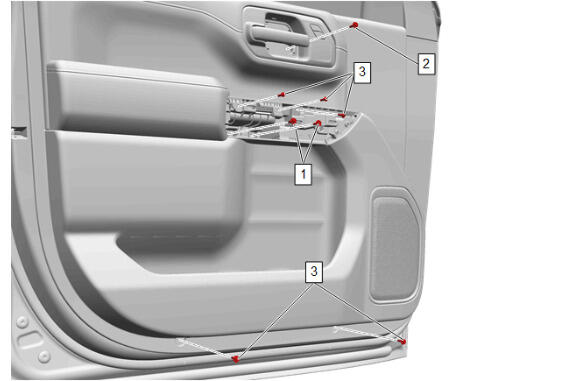

Front Side Door Trim
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Side Door Armrest Pull Cup Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Front Side Door Trim Removal and Installation (Power) , or Front Side Door Trim Removal and Installation (Manual) |
| 2 | Front Side Door Inside Handle Bolt | - | - | 2.5 N.m (22 lb in) | Front Side Door Trim Removal and Installation (Power) , or Front Side Door Trim Removal and Installation (Manual) |
| 3 | Front Side Door Trim Panel Bolt [5x] | - | - | 2.5 N.m (22 lb in) | Front Side Door Trim Removal and Installation (Power) , or Front Side Door Trim Removal and Installation (Manual) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

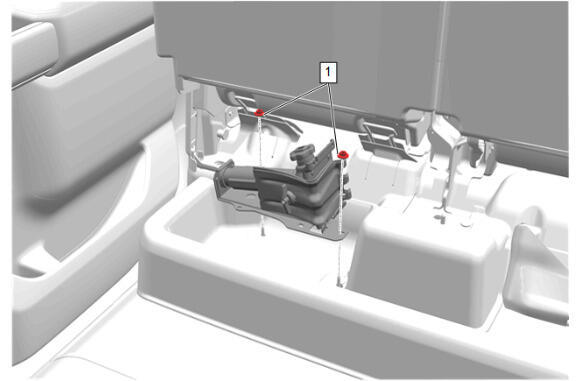

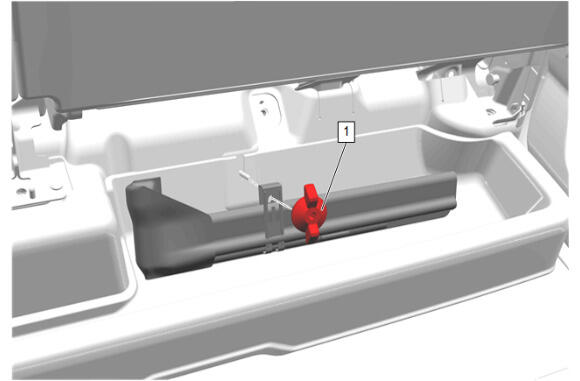

Jack
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Jack Stowage Bracket Nut [2x] | - | - | 9 N.m (80 lb in) | Rear Compartment Floor Stowage Trim Compartment Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

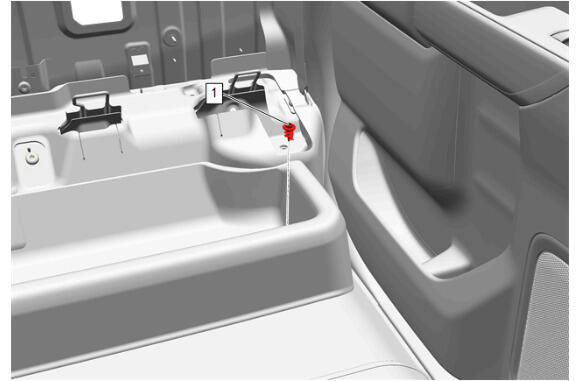

Rear Compartment Floor Stowage Compartment
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Compartment Floor Stowage Compartment Retainer | - | - | 1.5 N.m (13 lb in) | Rear Compartment Floor Stowage Trim Compartment Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

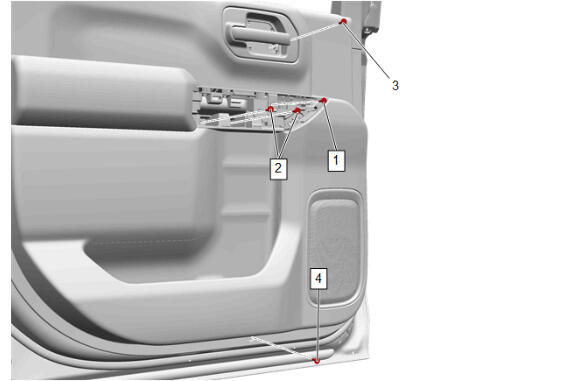

Rear Side Door (Crew Cab)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Side Door Accessory Switch Mount Plate Bolt | - | - | 2.5 N.m (22 lb in) | Rear Side Door Accessory Switch Mount Plate Replacement (Crew Cab) , or Rear Side Door Accessory Switch Mount Plate Replacement (Double Cab) |
| 2 | Rear Side Door Armrest Bracket Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Rear Side Door Trim Removal and Installation (Crew Cab) , or Rear Side Door Trim Removal and Installation (Double Cab) |
| 3 | Rear Side Door Inside Handle Bolt | - | - | 2.5 N.m (22 lb in) | Rear Side Door Trim Removal and Installation (Crew Cab) , or Rear Side Door Trim Removal and Installation (Double Cab) |
| 4 | Rear Side Door Trim Panel Bolt | - | - | 2.5 N.m (22 lb in) | Rear Side Door Trim Removal and Installation (Crew Cab) , or Rear Side Door Trim Removal and Installation (Double Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

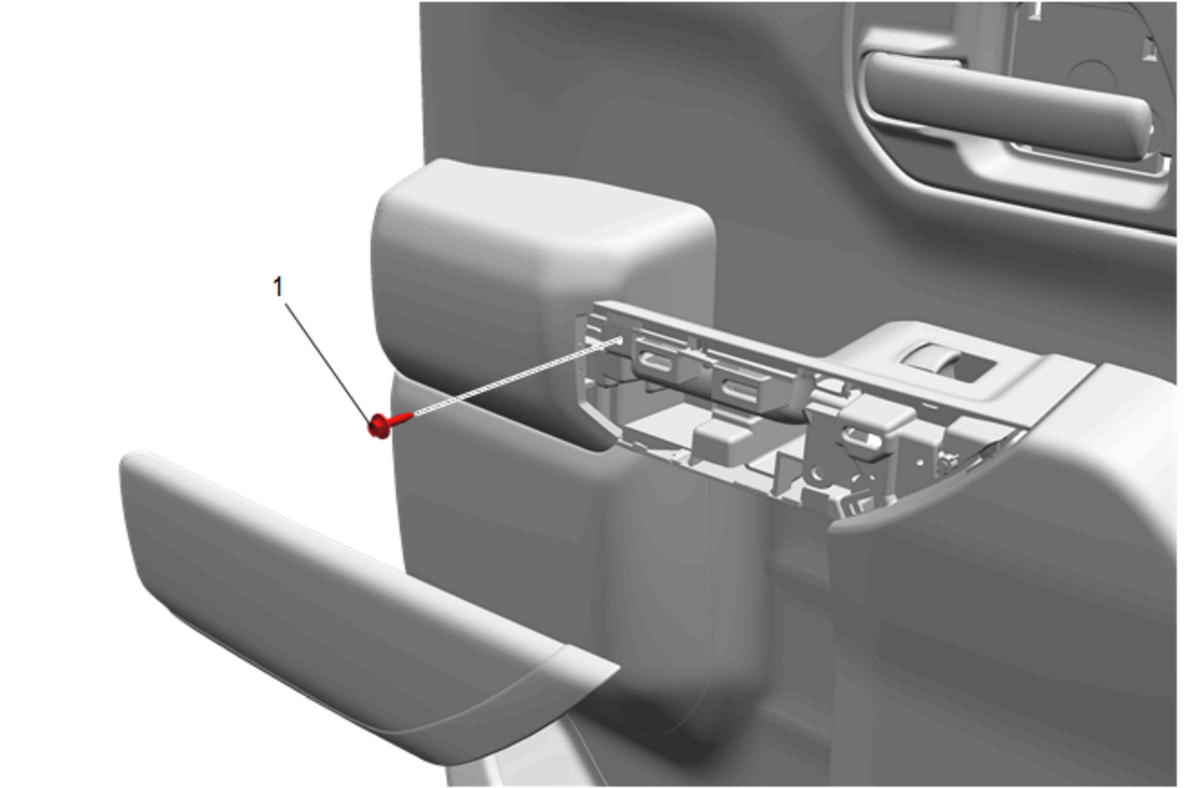

Rear Side Door Accessory Switch Mount Plate (Double Cab)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Side Door Accessory Switch Mount Plate Bolt | - | - | 2.5 N.m (22 lb in) | Rear Side Door Accessory Switch Mount Plate Replacement (Crew Cab) , or Rear Side Door Accessory Switch Mount Plate Replacement (Double Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

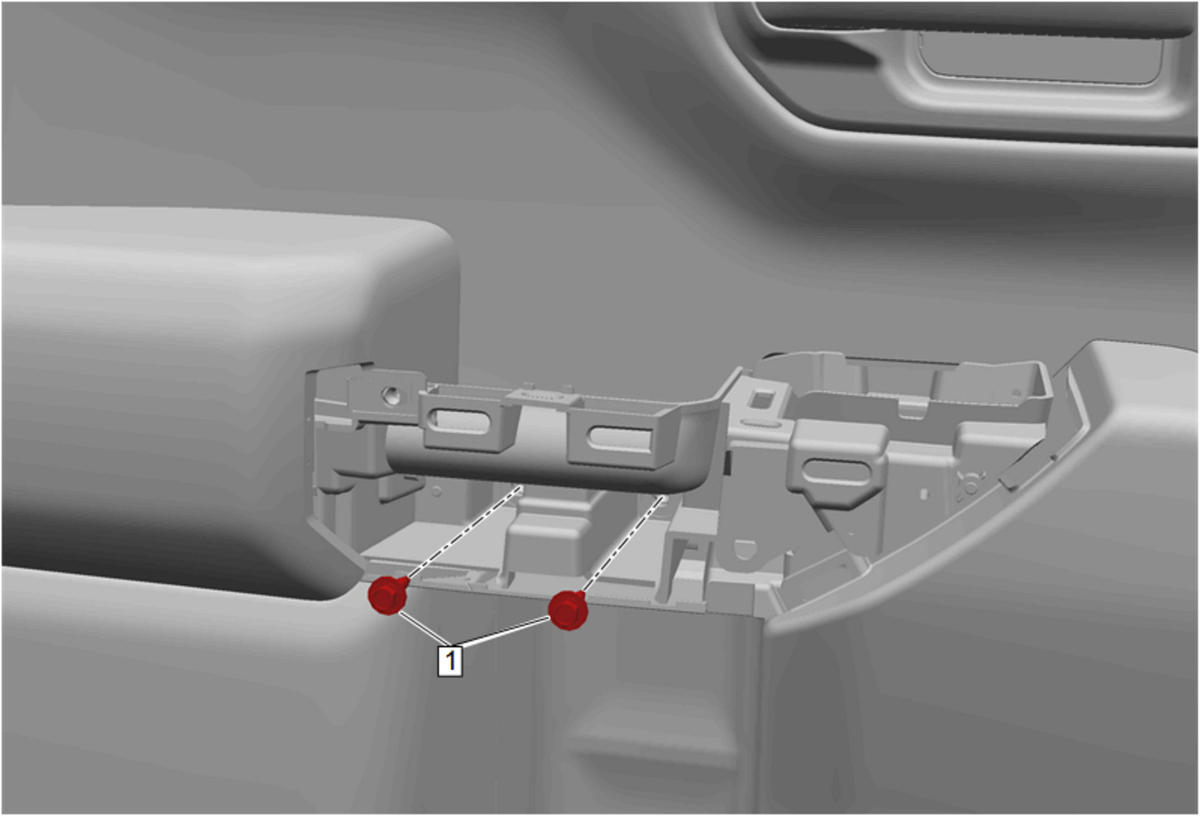

Rear Side Door Armrest Pull Cup (Double Cab)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Side Door Armrest Pull Cup Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Rear Side Door Trim Removal and Installation (Crew Cab) , or Rear Side Door Trim Removal and Installation (Double Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

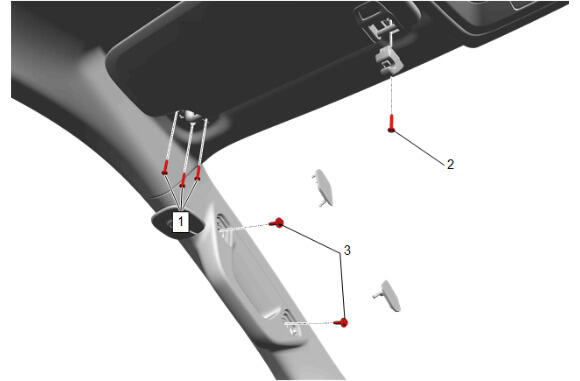

Sunshade and Windshield Garnish Molding
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Sunshade Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Sunshade Replacement |
| 2 | Sunshade Support Bolt | - | - | 2 N.m (18 lb in) | Sunshade Support Replacement |
| 3 | Windshield Pillar Assist Handle Bolt [2x] | - | - | 9 N.m (80 lb in) | Windshield Garnish Molding Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Tool Stowage Bag
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Tool Stowage Retainer | - | - | 3.5 N.m (31 lb in) | Rear Compartment Floor Stowage Trim Compartment Replacement |
