Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

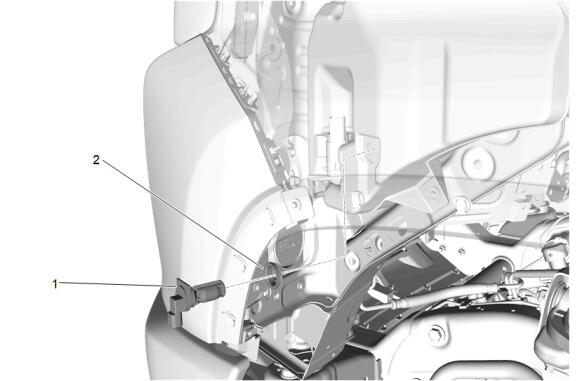

When installing the windshield washer solvent container level sensor grommet (2), use full strength windshield washer fluid as a lubricant on the grommet.
- Windshield Washer Solvent Container Level Sensor Grommet (2) - Install
- Windshield Washer Solvent Container Level Sensor (1) - Install
- Connect the electrical connector.
- Remove the drain pan.

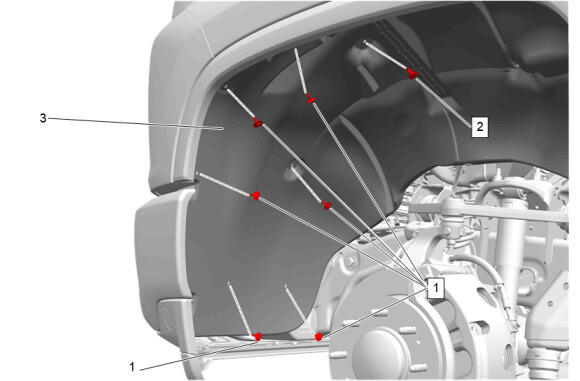

Front Wheelhouse Liner (3) - Install
- Front Wheelhouse Liner Retainer (2) - Install
- Front Wheelhouse Liner Bolt (1) - Install and tighten [6x] - Fastener Specifications
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation (Front with DZW)Tire and Wheel Removal and Installation (Rear with DZW)Tire and Wheel Removal and Installation (SRW)
- Refill the windshield washer solvent container.
CAUTION:
Refer to Fastener Caution .
