Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Wireless Charging System Module (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Wireless Charging System Module Bracket (2) - Install

CAUTION:

Refer to Fastener Caution .

Wireless Charging System Module Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect all electrical connectors.

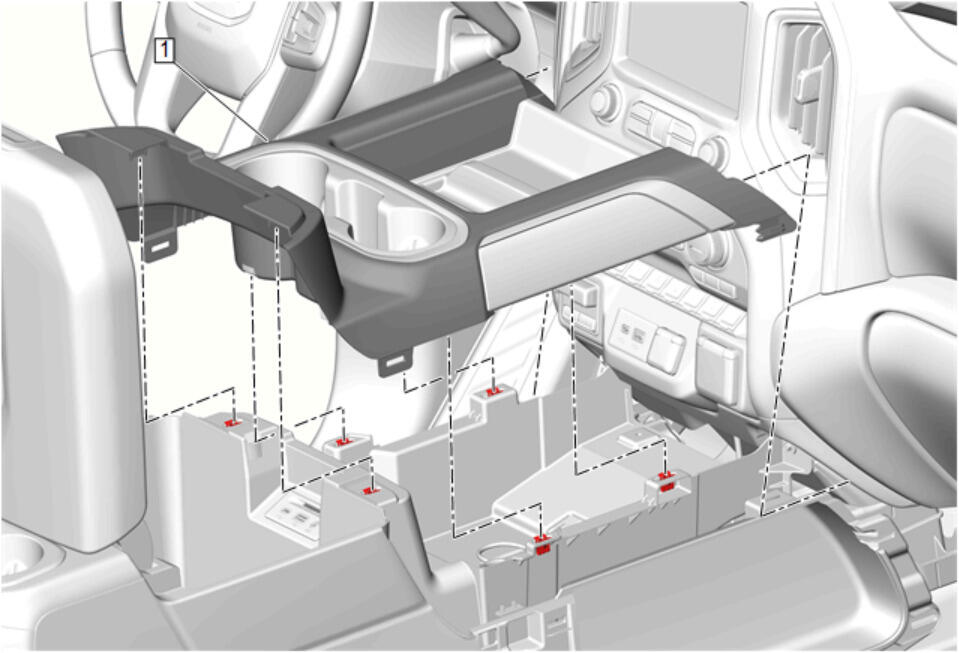

Front Floor Console Cup Holder Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure proper engagement of the integral tab on the front floor console extension right side panel.

When installing the front floor console extension panel - right side (1), secure the integral tab into the slot first then secure the retainers.

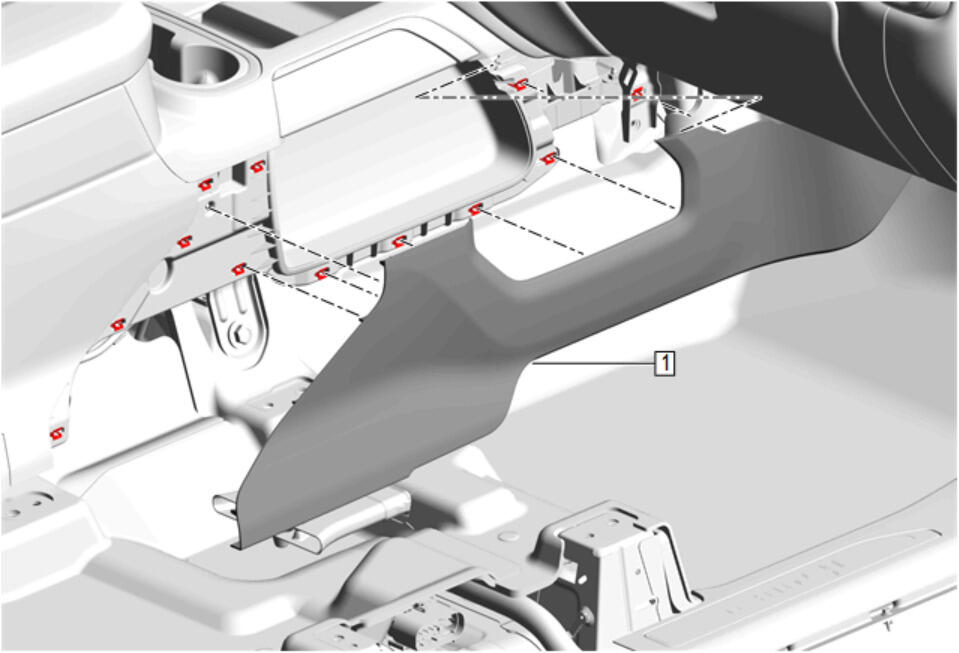

Front Floor Console Extension Panel - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure proper engagement of the integral tab on the front floor console extension left side panel. If the integral tab is not completely engaged, the front floor console extension left side panel could interfere with the accelerator pedal.

When installing the front floor console extension panel - left side (1), secure the integral tab into the slot first then secure the retainers.

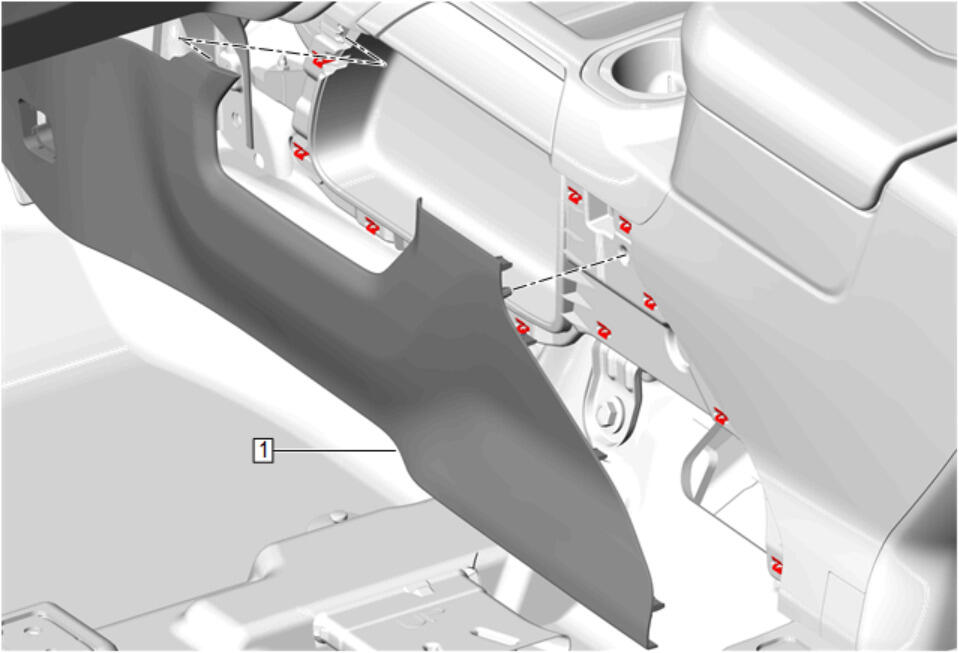

Front Floor Console Extension Panel - Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications

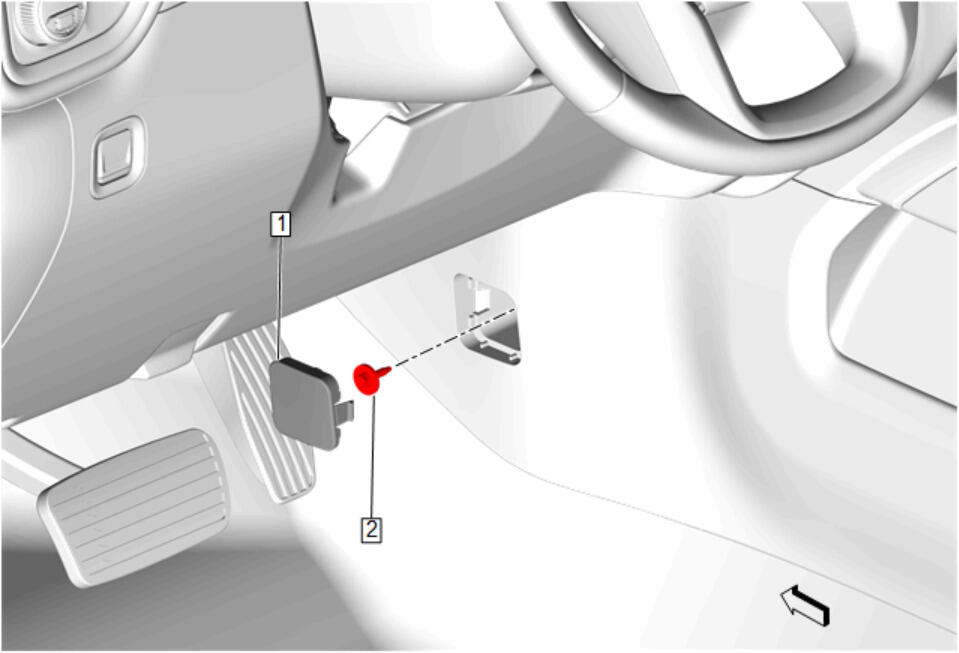

Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
