Removal Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Move the front seat to access the retainers.
Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Remove
Front Floor Console Extension Bolt (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

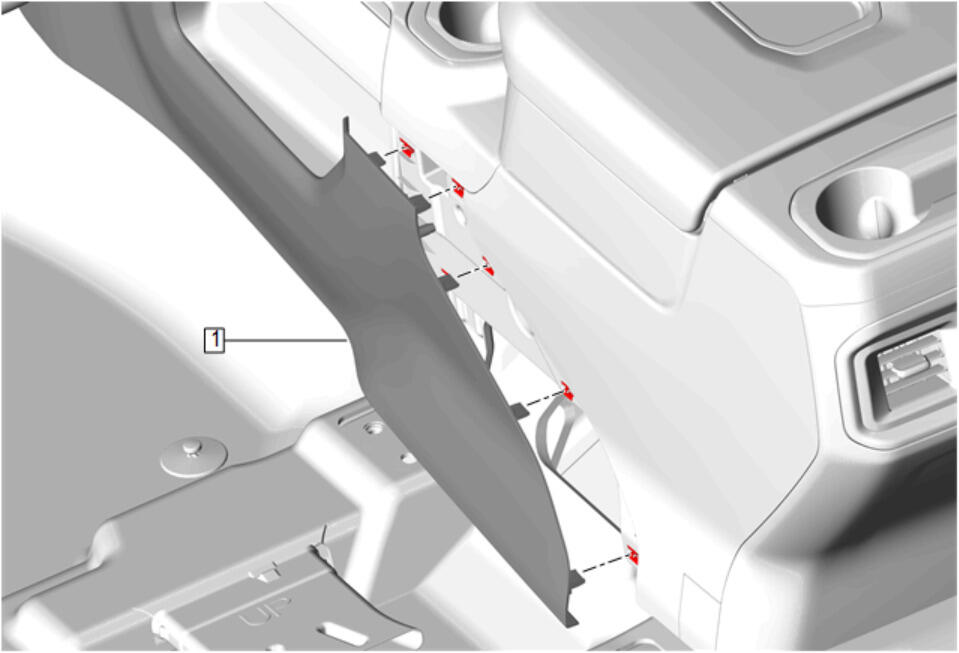

Starting from the rear, use a flat bladed plastic trim tool to aid in the removal of the front floor console extension panel - left side (1) from the front floor console.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

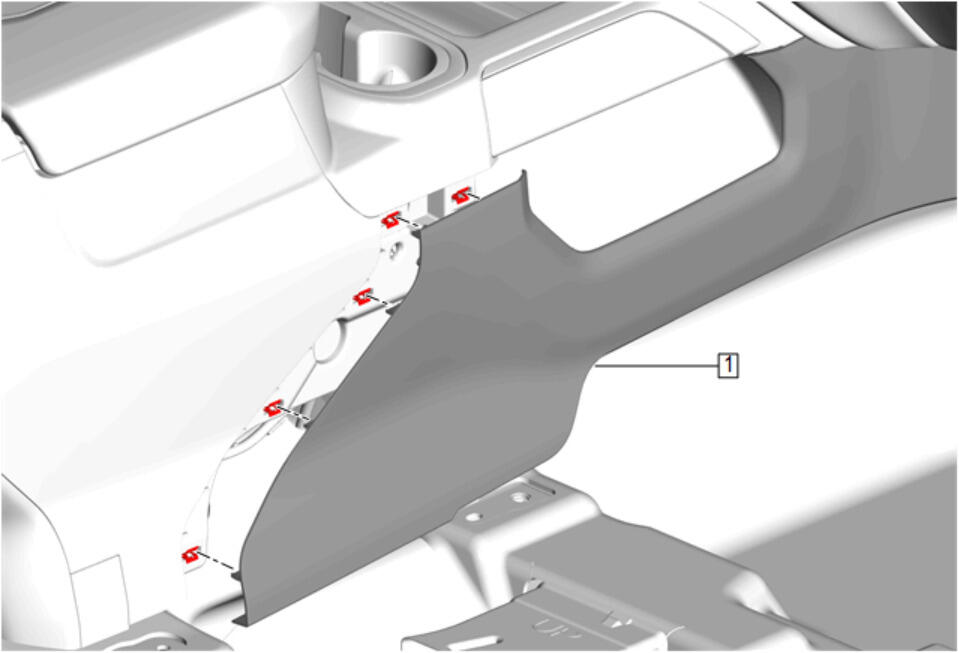

Starting from the rear, use a flat bladed plastic trim tool to aid in the removal of the front floor console extension panel - right side (1) from the front floor console.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Starting from the rear, use a plastic trim tool to release the retainer securing the front floor console cup holder trim plate (1) to the front floor console.
Pull the front floor console cup holder trim plate (1) rearward to clear the instrument panel lower trim panel.
Disconnect all electrical connectors.
Front Floor Console Cup Holder Trim Plate (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Wireless Charging System Module Bracket Bolt (1) - Remove [4x]
Wireless Charging System Module Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Wireless Charging System Module (1) - Remove
