Removal Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

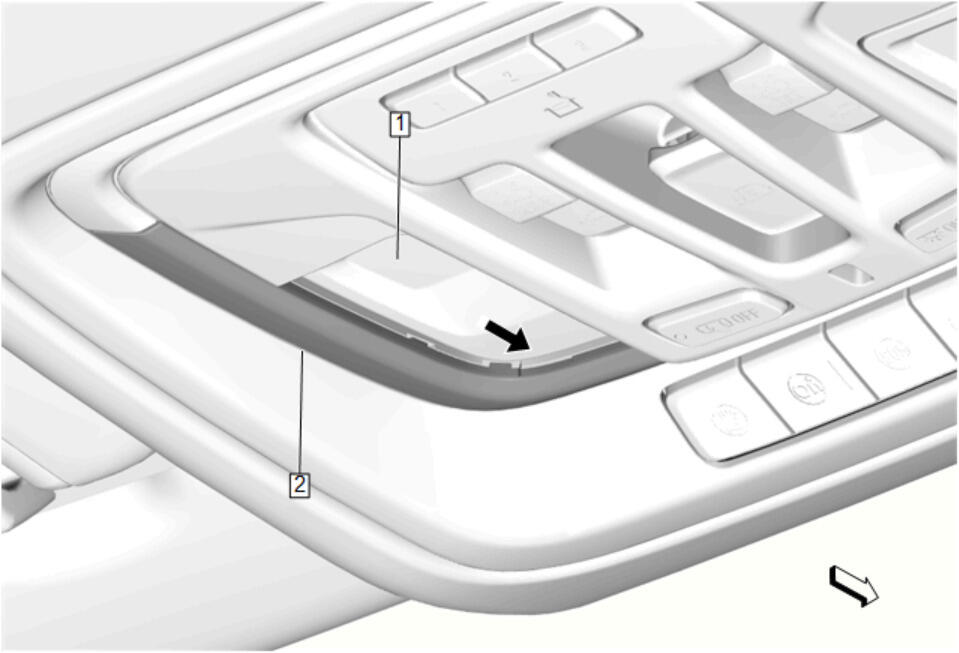

Push in the lamp lens (1) to access the notches on the roof console lamp trim plate (2).
- Using a plastic trim tool and working your way rearward, release the retainers of the roof console lamp trim plate (2).
Roof Console Lamp Trim Plate (1) - Remove [2x]
- Roof Console Bolt (2) - Remove [2x]
Roof Console (1) - Remove
- Disconnect the electrical connectors.
- Remove the wiring harness retainers.
Disconnect the electrical connector.
- Garage Door Opener Transmitter Bolt (1) - Remove [2x]
- Garage Door Opener Transmitter (2) - Remove
NOTE:
Note the location of the fastener opening. The fasteners are being misaligned and not retaining the forward roof console clips during installation.
